2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
38
Dual conveyor: 2
X Push the sensor rail off the guidance bolts.
X Loosen and remove the guidance bolt from the output side. The screw is located on the outside
of the conveyor side.
2
2
2

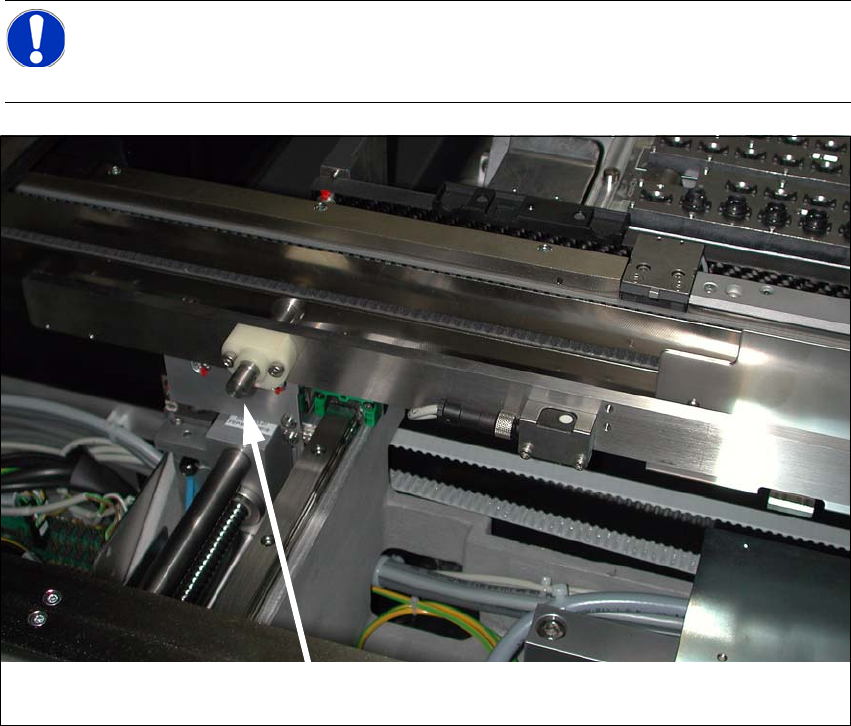

NOTE:
After completing work with the software, the fixed conveyor side can be returned to its
original position. 2
Bolts 2
Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2
Edition 09/2009
39

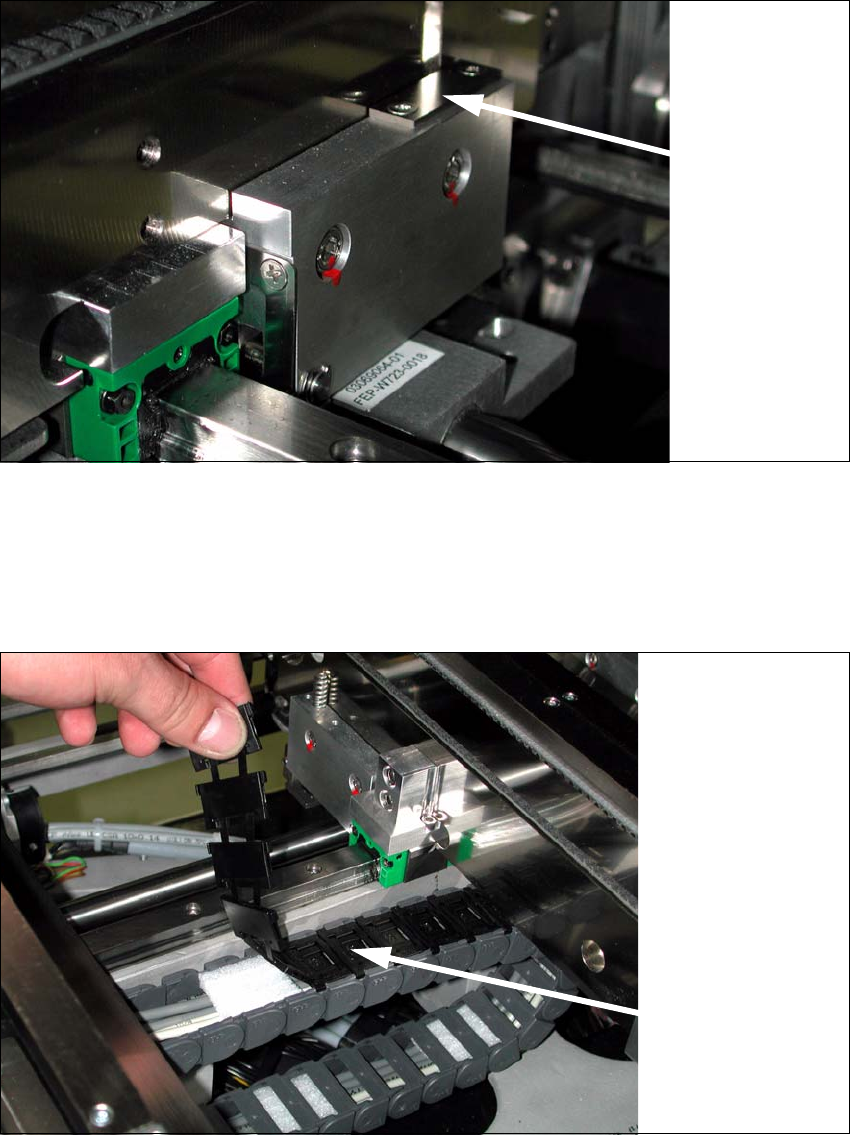

X Use a Phillips screwdriver to loosen the clamping fixtures for the conveyor sides.
2
X Dismantle the lifting table plate at conveyor lane 1.
X Remove the covers above the conveyor control.
X Open the trailing cable.
2
2
Loosen the
conveyor side
clamps 2
Trailing cable2
2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
40

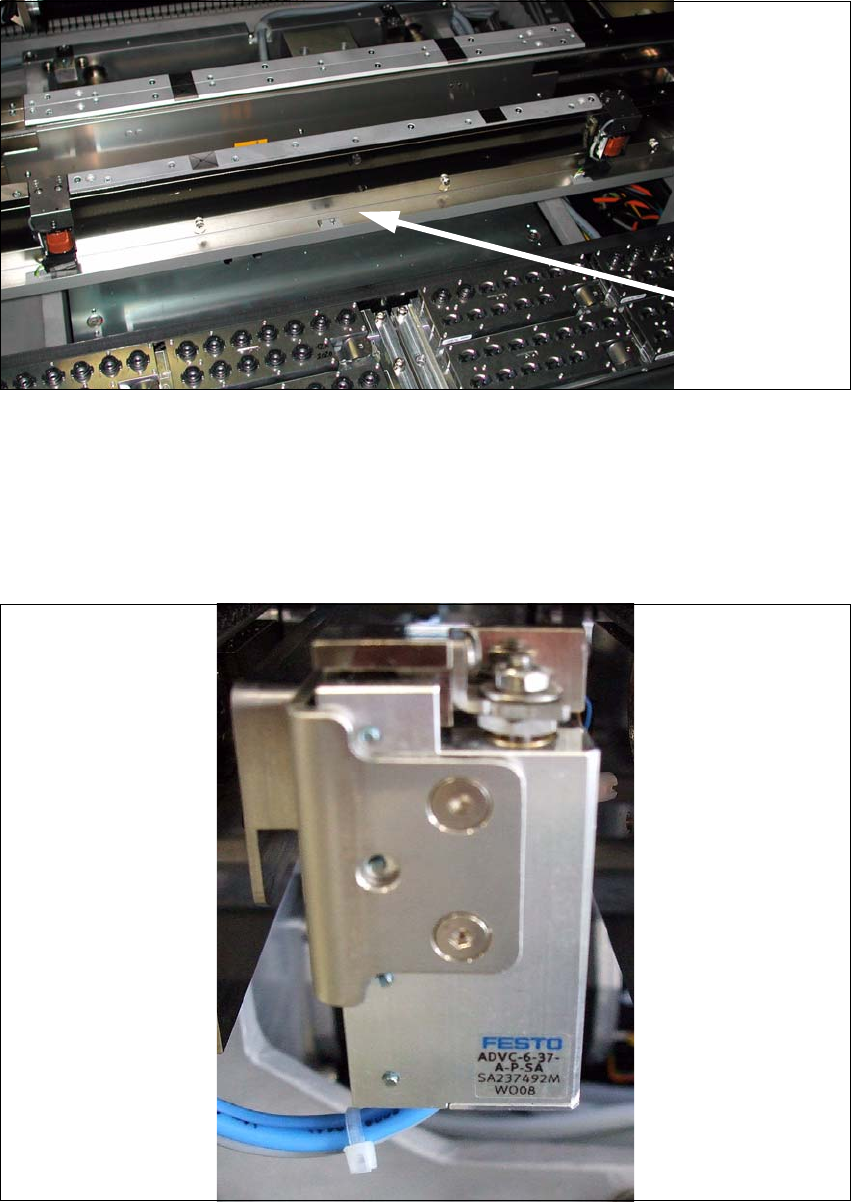

X Remove the metal angular bracket from the cable duct.
2
2.5.1 Fitting the Stopper on the Sensor Rail
X Fit the stopper onto the retaining bracket (M3x8 / 7991 hexagonal socket-countersunk head),
in the bottom position (the two top screw holes on the bracket).
Cover on
cable duct
2
