Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Edition 09/2009 51 2.5.3.1 Part s List 2 Qty Designation Item number Usage 6 Hose PUN 3 l=500mm 03053429-xx S topper - valve (shorten as requi…
2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
50
2.5.3 Pneumatic System Diagram
Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2
Edition 09/2009
51
2.5.3.1 Parts List
2
Qty Designation Item number Usage
6
Hose PUN 3 l=500mm 03053429-xx Stopper - valve
(shorten as required)
1 Hose PUN 4 l=1600mm 03038630-xx to Y piece PA
1 Hose PUN 4 l=1000mm 03038630-xx to valve IA
1 Hose PUN 4 l=300mm 03038630-xx Y piece - valve OA
1 Hose PUN 4 l=200mm 03038630-xx Y piece - valve PA
2 Hose PUN 6 l=150mm 03038629-xx Y piece - Y piece supply line
1 Y piece 6 on 6 Distribution supply line
1 Y piece 6 on 4 Distribution IA - PA/OA
1 Y piece 4 on 4 Distribution PA - OA
2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
52

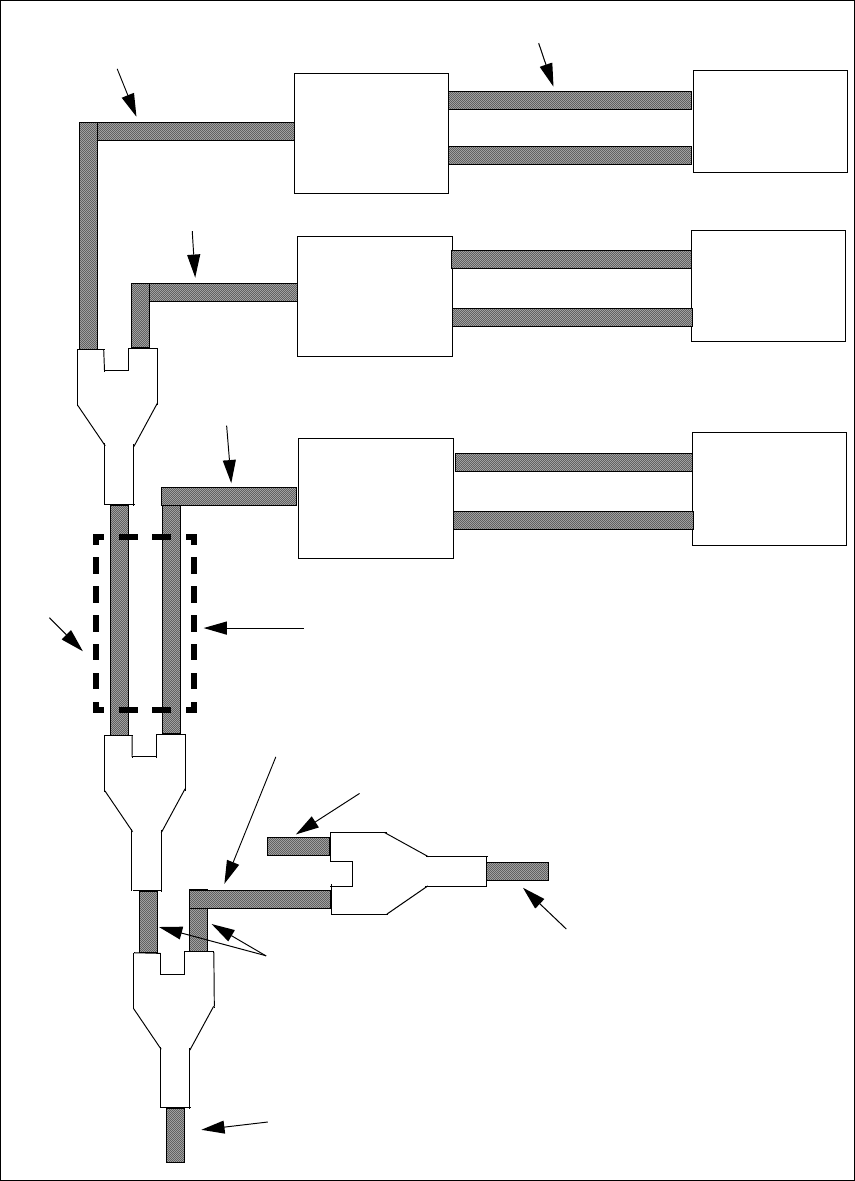

2.5.4 Pneumatic Distribution for Optional Stopper
Move
stopper in
Move OA out
Move
stopper in
Move PA out
Valve
PA
B
A
Valve
OA
B
A
Shorten PUN 3 6x50mm after fitting
PUN 4 L=200
PUN 4 L=300
PUN 6 to valve WA
PUN 6 plug
PUN 6 L=150 mm
6
6
6
6
4
4
4
4
4
6
6
6
PUN 4
L=1600
Power
track chain
Valve
IA
B
A
Move
stopper in
Move IA out
PUN 4 L=1000
Dual conveyor adjustment units
Single conveyor plug
Pneumatic supply
