2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper Edition 09/2009 58 X Place a board into the co nveyor lane. Ideally , the PCB should have the same stopper posi tions (stan dard and optional …
Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2
Edition 09/2009
57
To fix the stopper in the placement area: 2
X Enable the standard stopper via the IO functions at the station.
X Enable the optional stopper via the IO functions at the station.
2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
58
X Place a board into the conveyor lane.
Ideally, the PCB should have the same stopper positions (standard and optional stopper) so that
the PCB reference corner is located reliably. 2
Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2
Edition 09/2009
59
2

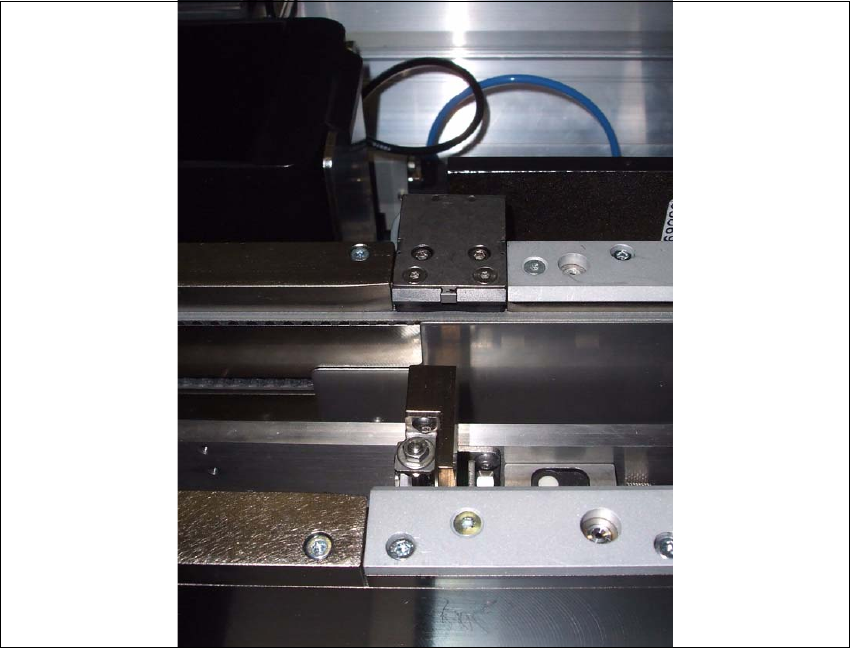

X You may need to loosen the optional stopper and adjust it so that it is positioned against the
PCB board.
2
