2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
56
2
2
Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2
Edition 09/2009
57
To fix the stopper in the placement area: 2

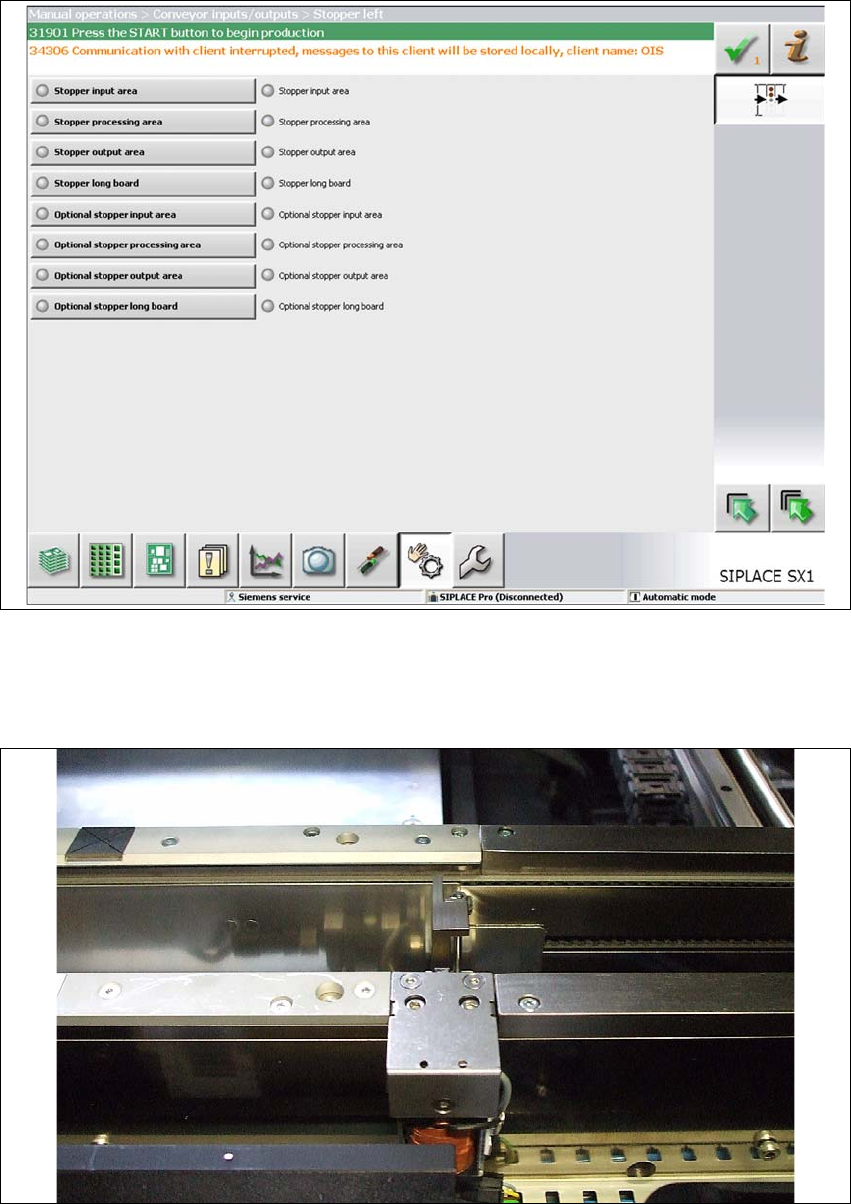

X Enable the standard stopper via the IO functions at the station.
X Enable the optional stopper via the IO functions at the station.
2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
58
X Place a board into the conveyor lane.
Ideally, the PCB should have the same stopper positions (standard and optional stopper) so that
the PCB reference corner is located reliably. 2
