Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Edition 09/2009 59 2 X Y ou may need to loosen the optional stopper and ad ju st it so that it is position ed against the PCB board. 2
2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
58
X Place a board into the conveyor lane.
Ideally, the PCB should have the same stopper positions (standard and optional stopper) so that
the PCB reference corner is located reliably. 2
Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2
Edition 09/2009
59
2
X You may need to loosen the optional stopper and adjust it so that it is positioned against the
PCB board.
2
2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper
Edition 09/2009
60

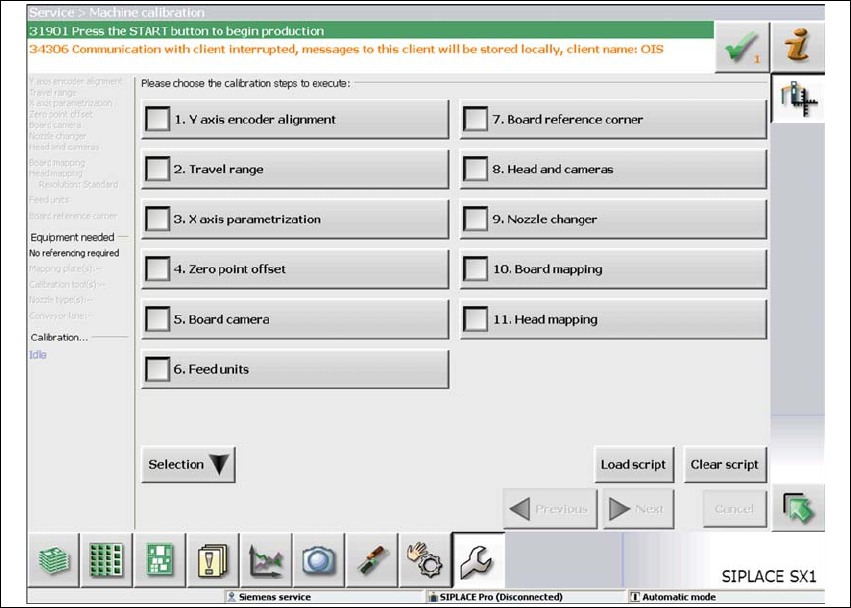

X Calibrate the reference corner for the PCB conveyor.
2
X Fit the covers.
2
