Assembly Instructions SIPLACE Vacuum Pump Ausgabe 07/2006 74 : Open the power supp ly’s door (the connections for Port al 1 and 2 are located here) Fig. 2.7.3 P or tal distr ibutor , power supply side (with dummy plug P …
Assembly Instructions SIPLACE Vacuum Pump
Ausgabe 07/2006
73
2.7.1 Connect Portal Distributor
2
2
Before any work is performed the machine – after being properly shut down – must be turned off
at the main switch and separated from the power system. Thereafter the compressed air supply
must be also turned off at the compressed air unit’s main valve in the machine stand. The air
supply must then be ventilated by activating the needle valve on the compressed air unit.
: T
urn off the placement machine and disconnect it from the power system.
: Op
en the compressed air supply’s door
(the connections for Portal 3 and 4 are located here)

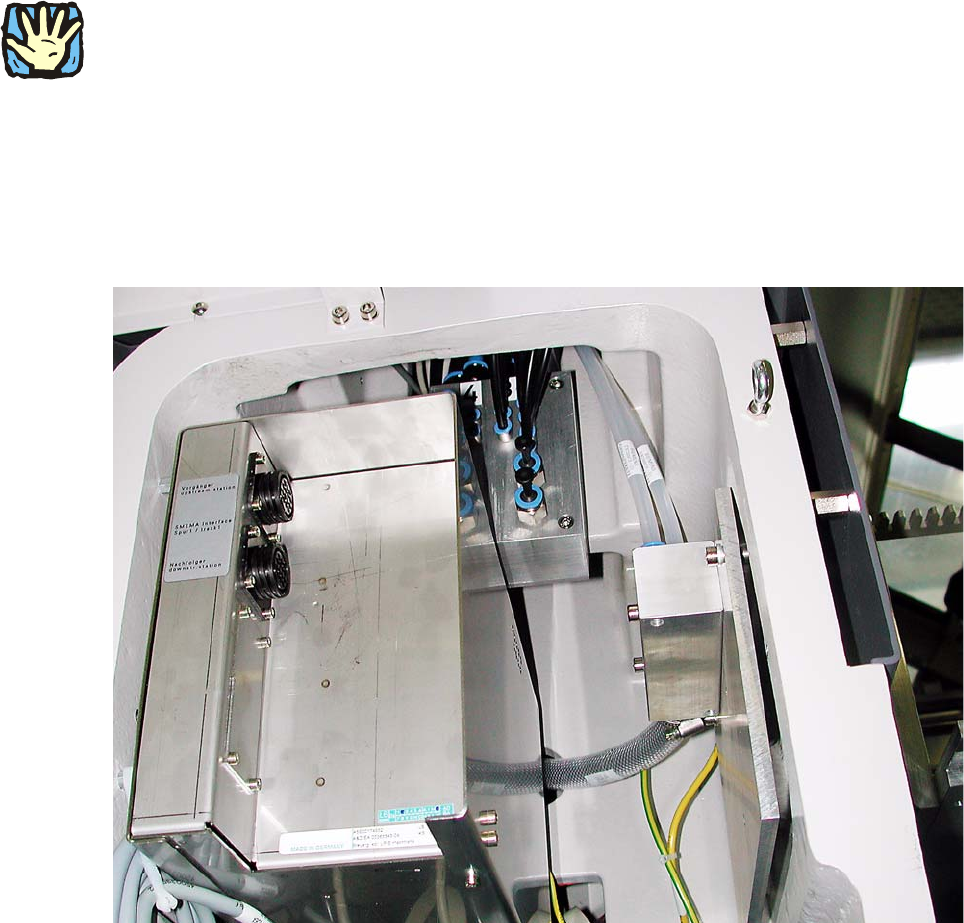

Fig. 2.7.2 Portal distributor, pneumatics side (with dummy plug Portal 3+4, starting position)
Assembly Instructions SIPLACE Vacuum Pump
Ausgabe 07/2006
74
: Open the power supply’s door
(the connections for Portal 1 and 2 are located here)

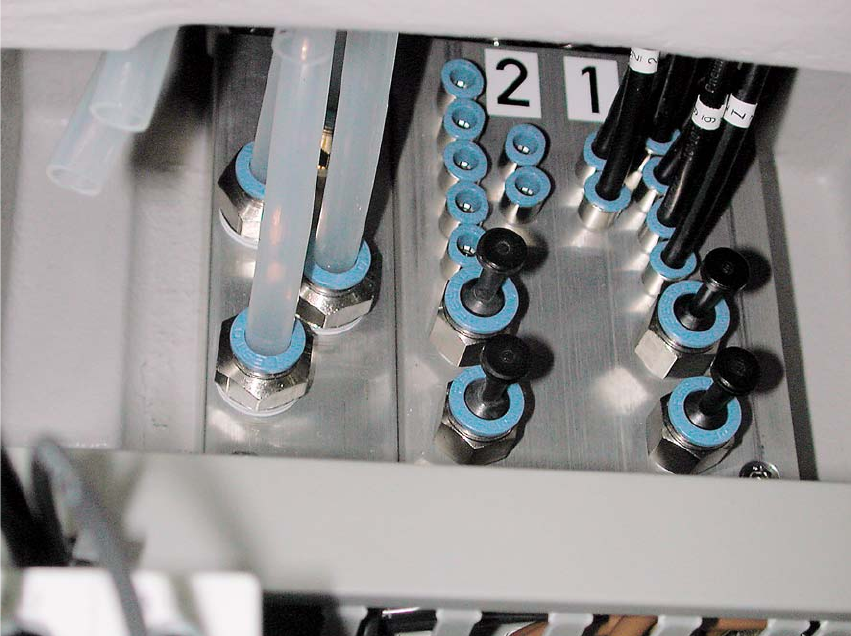

Fig. 2.7.3 Portal distributor, power supply side (with dummy plug Portal 1+2, starting position)
: Close the main compressed air shut-off valve.
: Close the shut-off valve for the placement machine.
: Wait until the pressure has dissipated.
Assembly Instructions SIPLACE Vacuum Pump
Ausgabe 07/2006
75
Depending on the portal configuration, the following dummy plugs must be removed: 2
2
A portal with Twin Head cannot be retrofitted. Leave the dummy plug for the corresponding portal
in the distributor. 2
2
– X2: Plug for Portal 1 (power supply side) and Portal 3 (pneumatics side)
– X3: Plug for Portal 1 + 2 (power supply side) und Portal 3 (pneumatics side)
– X4: Plug for Portal 1 + 2 (power supply side) und Portal 3 + 4 (pneumatics side)
: To do so, press the blue rings (see Fig. 2.7.3) in th
e dir
ection of the axis and remove the cor-
responding dummy plug.

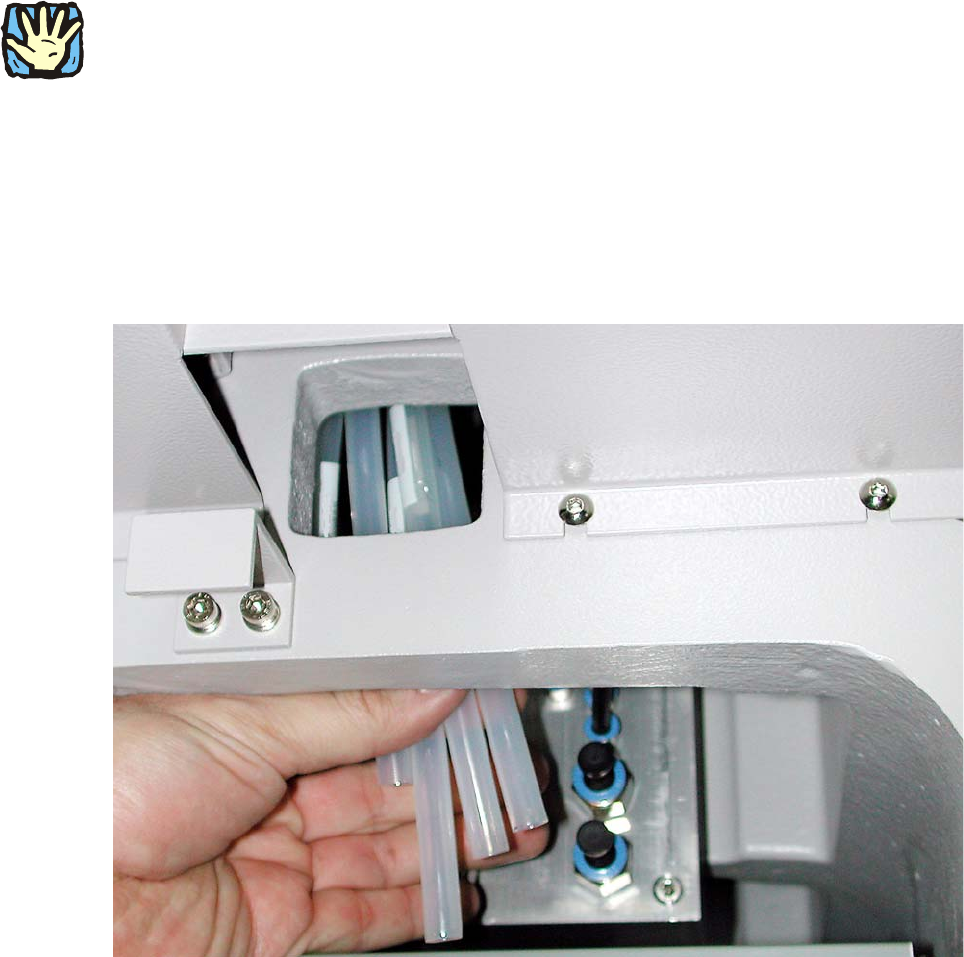

Fig. 2.7.4 Hoses run at manufacturer’s (here for Portal 1+2)
: Pull the hoses down until you can see the labelling.
