Assembly Instructions SIPLACE Vacuum Pump Ausgabe 07/2006 77 2.7.2 Retrofitting the Pneumatic Unit and Connecting the V acuum Distributor Block Fig. 2.7.7 F asten vacuum distributor b lock : Fasten the vacuum distributor…
Assembly Instructions SIPLACE Vacuum Pump
Ausgabe 07/2006
76

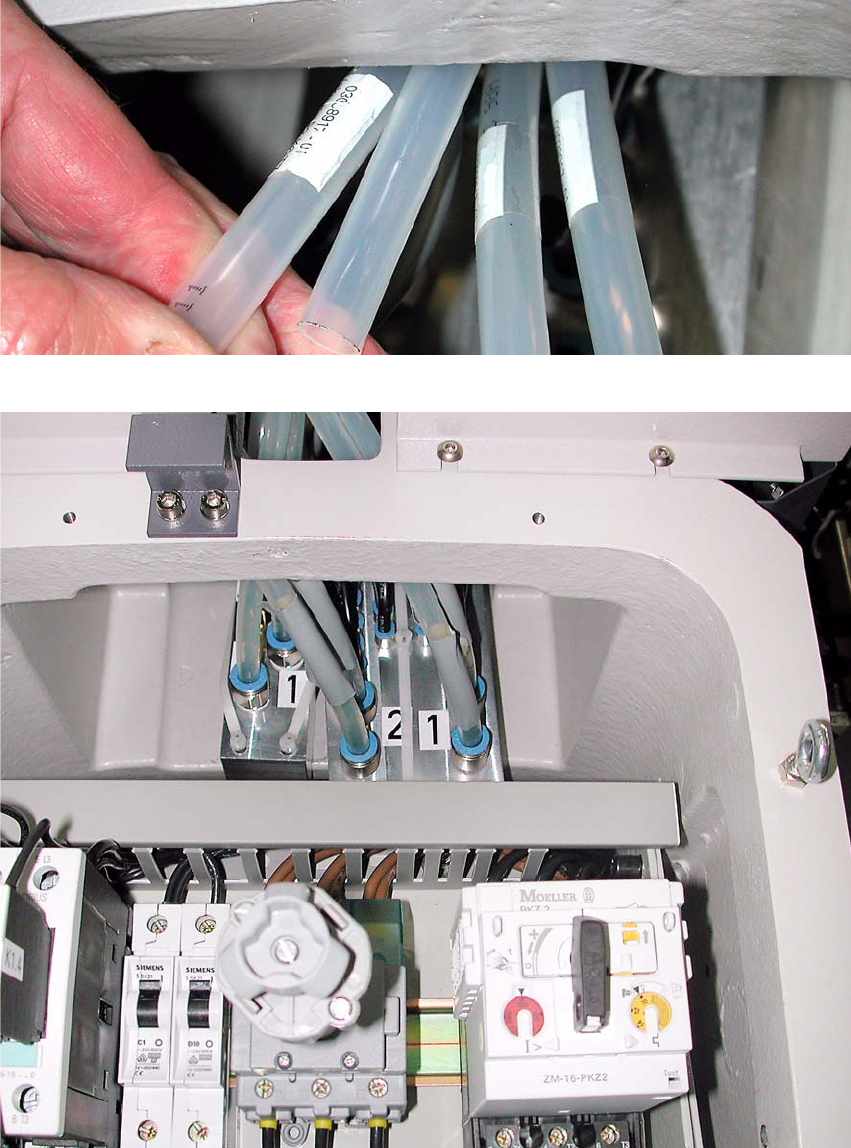

Fig. 2.7.5 Hose labelling (here for Portal 3+4)
Fig. 2.7.6 Retrofitted pneumatic distributor for Portal 1+2 (facing side)
: Plug the hoses into the portal distributor, based on the labelling and the machine configuration
(both for Portal 1+2 and Portal 3+4).
Assembly Instructions SIPLACE Vacuum Pump
Ausgabe 07/2006
77
2.7.2 Retrofitting the Pneumatic Unit and
Connecting the Vacuum Distributor Block

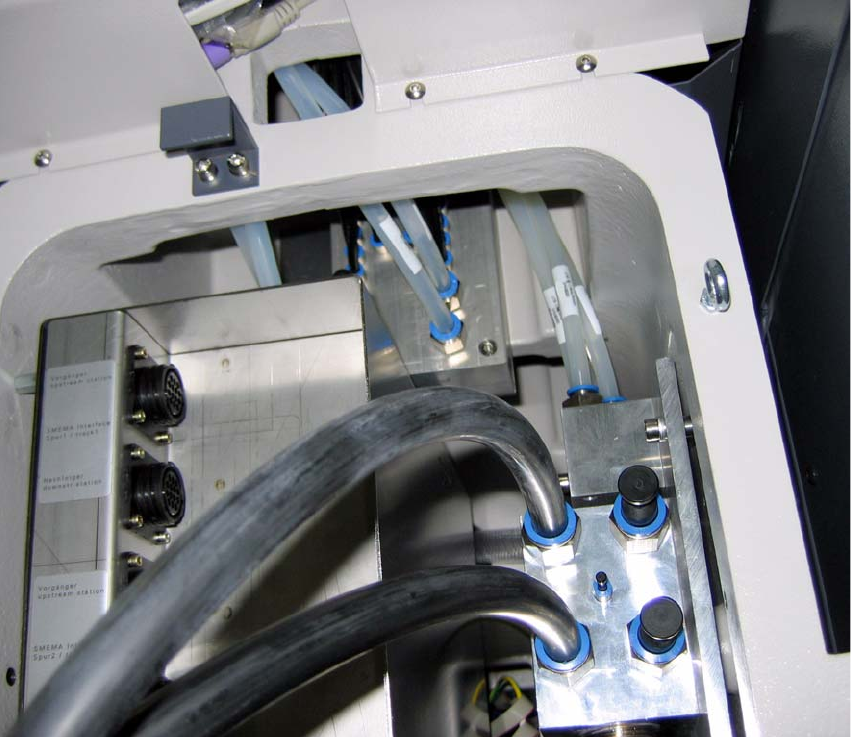

Fig. 2.7.7 Fasten vacuum distributor block
: Fasten the vacuum distributor block to the plate with the two screws (00845068-, DIN912,
M6x70-8.8).
2
Assembly Instructions SIPLACE Vacuum Pump
Ausgabe 07/2006
78
Fig. 2.7.8 Pneumatic unit with pressure connectors (connectors at starting point). Minor visual differences in the
pneumatic unit can occur here due to different versions of the pneumatic unit.
2
A portal with Twin Head cannot be retrofitted. Leave the portal hoses for that portal connected to
the pneumatic unit.
: Pull out the pneumatic unit.
2
As you can see here, this placement machine is operated with 3 portals (for a compressed air
connection there is a sealing plug instead of a pressure hose).
2
If you ever have to retrofit for compressed air, you must reconnect the hoses according to their
labelling (see Fig. 2.7.8).
: Press the blue rings and remove the reducers between the pneumatic unit (at the top
connections) and portal hose (keep the reducers for later retrofitting to, e.g., Twin Head).
: Press sealing plugs (03015210-, plug QSC-12H) into the pneumatic unit’s open angled plug-
and-socket connector (see Fig. 2.7.10).
Portal 1
Portal 4
Portal 3
Portal 2
Reducers
