better during placement,the reference point is determined manually.
Auto alignment:The machine will scan and align mark points automatically.
4.3 Mark Point information
Mark point Coordinate:Import the coordinate automatically status: the data collection of mark point, which through PCB
circuit board to find mark point coordinate information directly, and input directly. Manual programming status:Select mark
point on the list and click “align”,enter the image capture page,and then find the center of the mark point via movement,

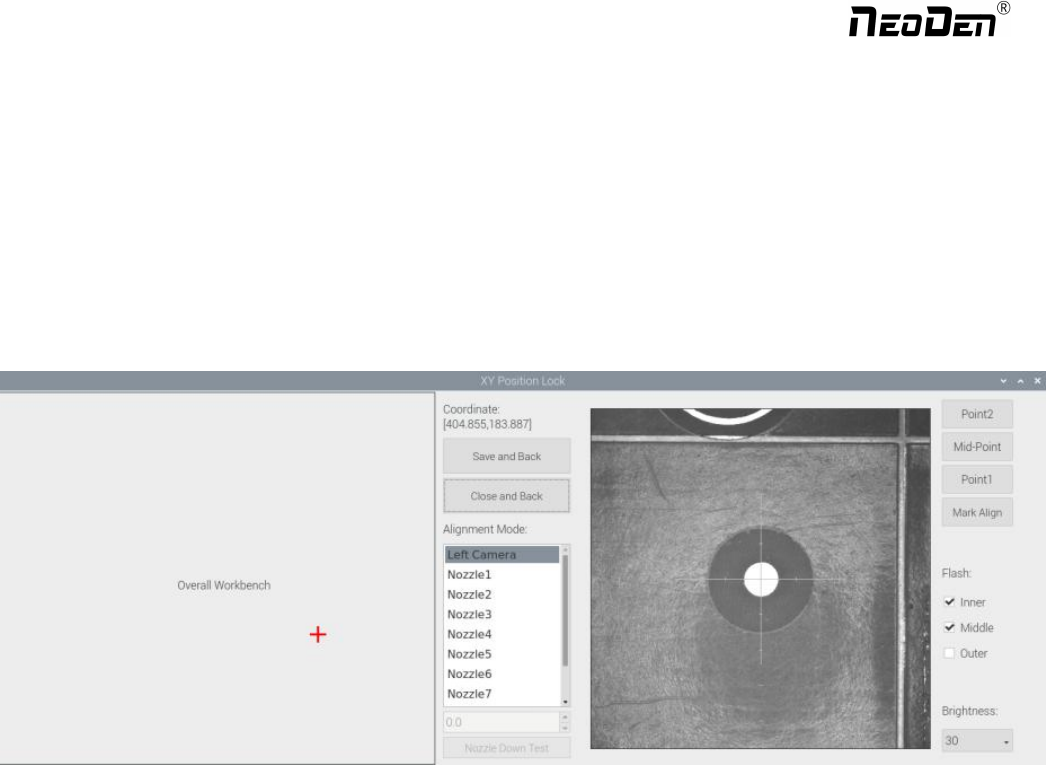

click "Mark align" see below figure, and then click "Save and Back" to go back to main page.
Min, max value: means the size of mark point, it has a floated value, which can prevent recognizing mark point wrongly.
Light source: Dividing into inner and outer, if select the hole as mark point which need to choose the inner of light source; If
select bright spot as fiducial which need to choose the outer of light source.
Brightness:The brightness when align the mark point,if select bright spot,generally set 20,can adjust according to actual
situation.
Range:If there are interference points near the Mark point, you can input a certain value and ensure identify the Mark point
more accurately.
Circle Degree:Input reasonable circle degree value,can avoid interference from other points effectively.
Mode:Dividing into white point and black point, select black point mode if have hole and bright point,select white point
mode if have bright point.
Camera:Support select left camera and right camera(user can select the camera for calibration according to the actual
situation),also can select default setting camera,the machine will use corresponding camera during work.
Except for the coordinate of Mark point, the settings of min,max, light source, brightness, range, circle degree, mode,
camera are same no matter automatically imported or manually imported.
Mark point add and delete: Click “new”to add the mark point,click “delete”to remove the selected mark point you want.
19
Zhejiang NeoDen Technology Co.,Ltd.
20
4.4 Component list setting
Function: display the information and mounting order of components. The components’ quantity and mounting information

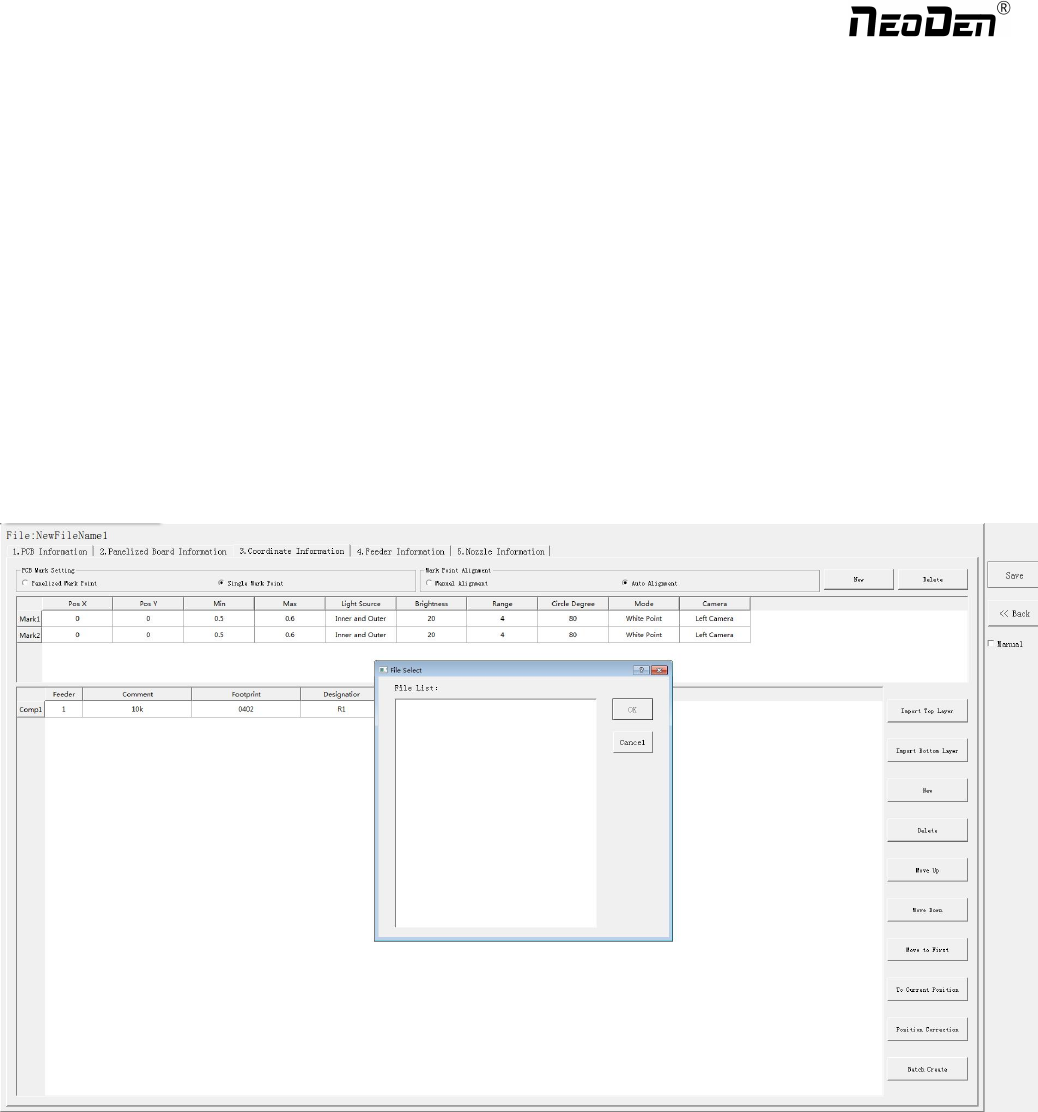

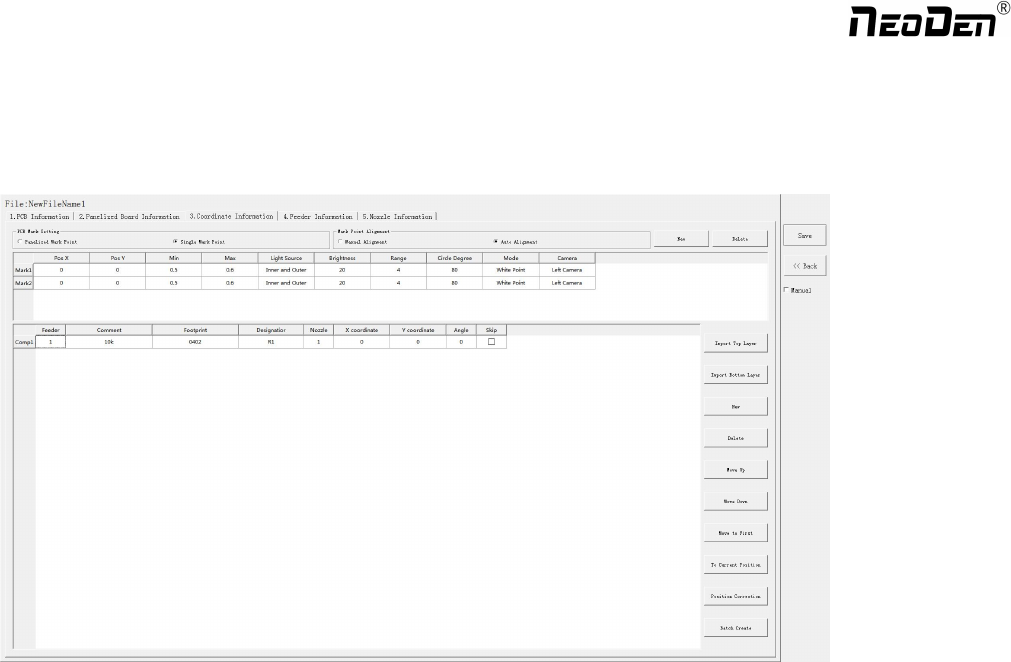

can be added through manual programming or importing files , see below figure:
4.4.1 Manual programming
(1) Select manual programming;
(2) Edit the first component: there will be an example component in the component information list, modify the sample
component and click position “align”, the page will switch to the vision of up-looking camera automatically. Move the
camera and find the first component’s center coordinate. Click save.
(3) Fill in the information of component: Stack refers to which stack No. the component located; Nozzle refers to which
nozzle used to mounting the component; Specification refers to the component’s value; Footprint refers to the common
footprint name as 0402,0603,0805 etc; XY coordinate refers to the position of where the component is mounted, align the
center position of component, it will display synchronously; The angle is based on the placement direction of components
on the circuit board. Transverse is 0 degree or 180 degree, vertical is 90 degree or negative 90 degree, which mainly
depends on the polarity of component, degree must be integer degree; Skip setting includes true or false, false means keep
mounting, true means skip mounting this component. After finish all parameters’ editing, the setting of first component
information finish.
(4) Click ‘New’ to add one row on the component list. The information will exactly copy from the top row. Click align to
find the second component’s coordinate. Then click save to edit the other information such as name, value, footprint and
angle etc. Keep adding new component until the whole PCB finish. Please note the the stack and nozzle do not need to be
edited manually. It can be set through feeder setting interface with ‘Assign all sequentially’ button to assign the information
Zhejiang NeoDen Technology Co.,Ltd.
to component list automatically.
4.4.2 Operation introduction of component list
(1) Import the processing file
(2) Export the component coordinate information through computer by choosing metric system CSV format to the USB
flash disk.
(3) Plug the USB into the machine, do not choose the manual programming, import the processing file by clicking related
layer file import button. The right side click ‘file import top layer’ and the reverse side click ‘file import bottom layer’ . It
will pop up a selecting window, choose the processing file and click save, the information will be imported to the list. (Note:
when import bottom layer, the PCB length, rows and columns of panel board need to be edited before import file)
(4) Addition of component: Click ‘New’ , the component list will copy one row from the adjacent row, then modify the
component information.
Delete component: Select the wrong component row, click delete to remove the component.
(5) Movement of component
When editing, sometimes we need to do a slightly adjustment for the edited file, we have three ways of movement:
Move up: to move the selected component upward
Move down: to move the selected component downward
Move to head position: To move the selected component to the first row. Please notice the first row component must be
the same as the first component to place on the PCB.
