User-Manual-NeoDen-K1830-20200618.pdf - 第7页
Figure 4 -X-axis Beam Figure 5 -Main Place ment Head Camera 7 Zhejiang NeoDen T echnology Co.,Ltd.
1.3Working Area Structure
Figure 3- Top view of main mounting area
6
Zhejiang NeoDen Technology Co.,Ltd.

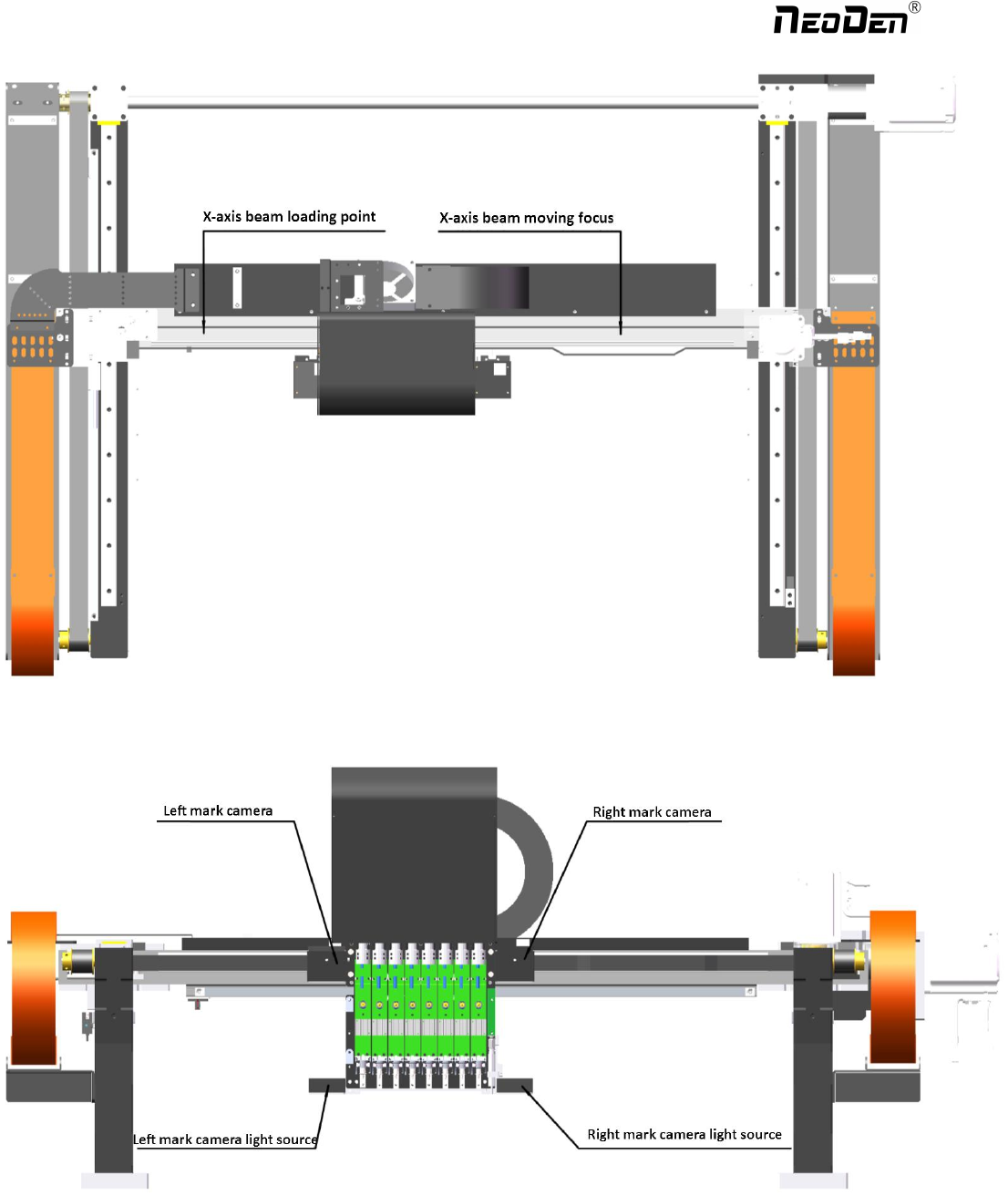

Figure 4-X-axis Beam
Figure 5-Main Placement Head Camera
7
Zhejiang NeoDen Technology Co.,Ltd.

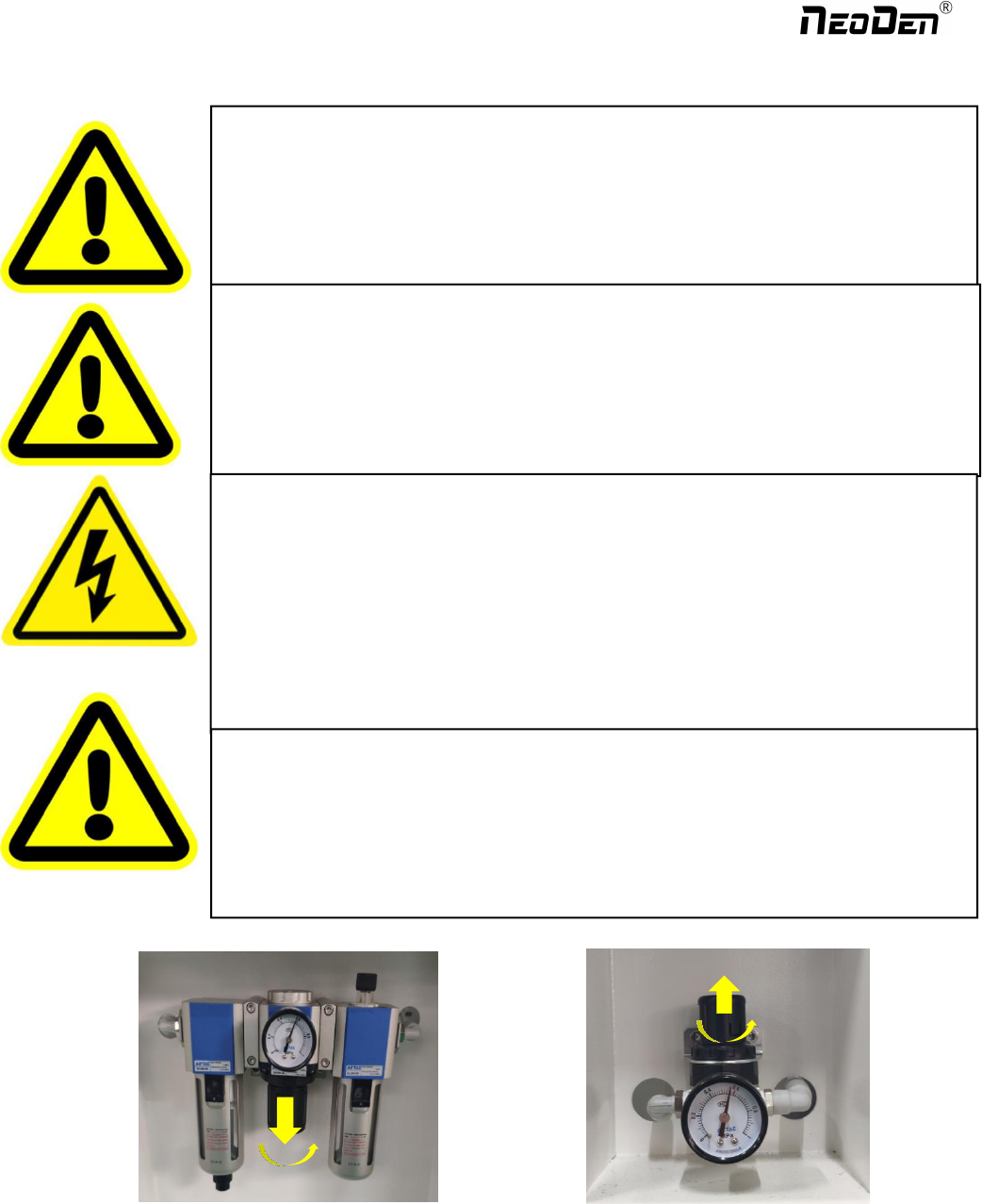

1.4 Important Notice
Figure 6-The air supply of the equipment shall not be less than0.6MP Figure 7- Feeder Pressure 0.55MP
Warning of failure risk of camera identification，please referring to Figure 3 and
Figure 5：The following parts are forbidden to touch and impact
Front IC Camera Back IC camera Left mark camera Right mark camera
Left mark camera light source Right mark camera light source
Warning of accuracy failure risk, refer to Figure 3: The following components are
prohibited from touching and impacting.
Return to zero column
For the risk of accuracy failure, refer to Figure4: When manually moving XY, it must
be carried out on the X-axis beam moving point;
Warning of electric shock, be sure to follow the requirements below：
Connect the input power supply that meets the requirements of the equipment, the
electrical interface of the machine to the ground must be effectively grounded；
Any time you enter the case and stick to the head for maintenance, you need to shut down
the machine properly and cut off the power supply;
Warning of equipment life reduction，be sure to follow the requirements below：
When installing the equipment, the equipment must be leveled；
Correct shutdown: shut down the operating software and the system before turning off
the main
p
ower switch；
8
Zhejiang NeoDen Technology Co.,Ltd.
