8.System Setup

If any revision is required, we suggest you contact our engineer to get detailed instruction first. (P.S. All parameters

were set up before shipping, usually no adjustment is required.) This section will provide a brief introduction for all

parameters, to get detailed adjustment instruction, please contact our technical engineer.

Right buttons functions:

Config save: to click Save after changing the parameter

Administrator login: to prevent any misoperation, this interface will be inactive and greys out. To make it inactive,

Administrator needs to login.

Change password: before Administration login in, this function is not visible.

If the password needs to be changed, please login and click Change password. A window will pop out, enter the original

password. Then follow steps to enter the new password. A successful window will pop out when it’s finished.

Version: the current software version will be displayed below.

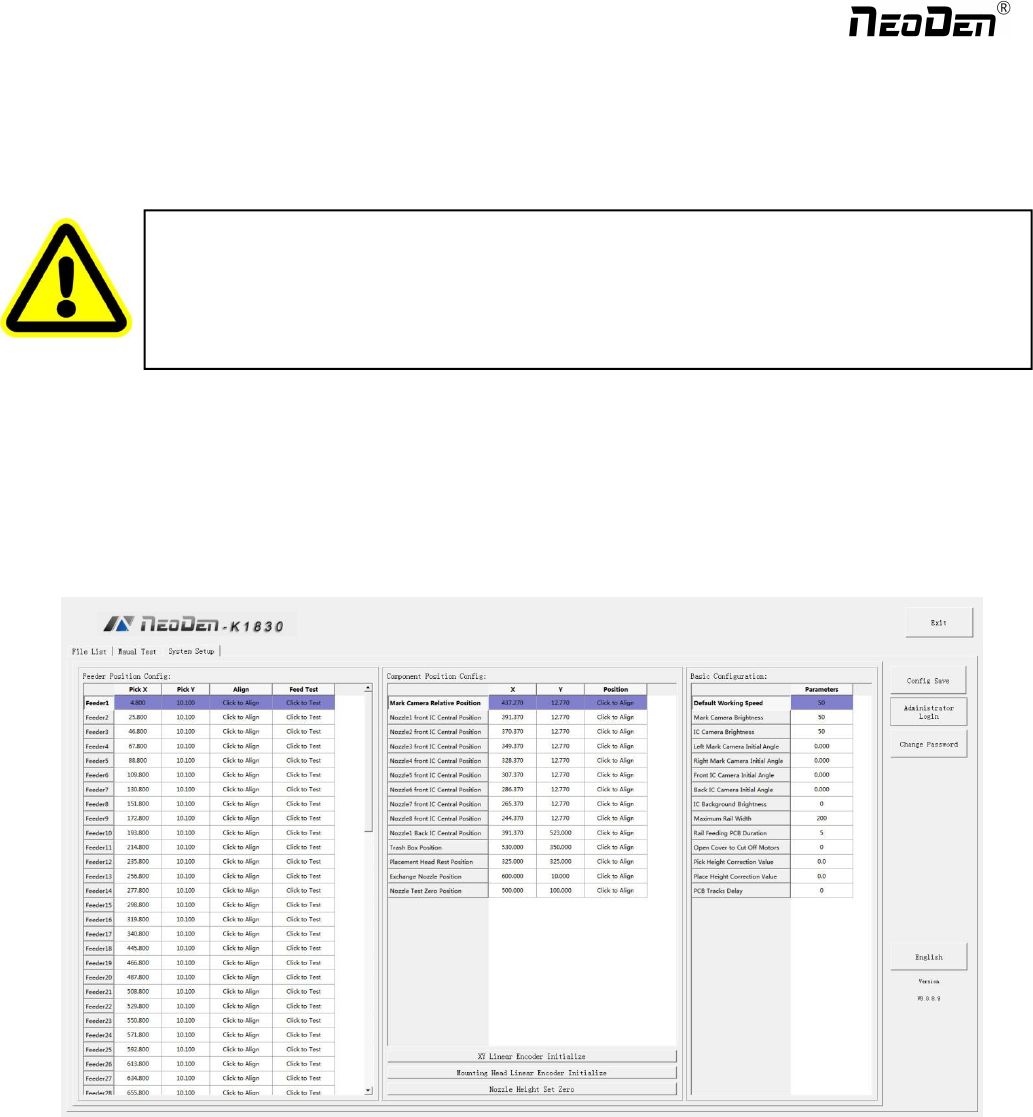

警告：本部分的功能是针对贴片机机器参数设置，所修改的参数会引起全部贴装文件的参数

改变，更改参数有导致设备无法使用的可能，所以请慎重修改！

Warning: this part aims at machine’s global parameter settings, any modified parameter will

influence all working files, when modify this part please consider seriously.

Zhejiang NeoDen Technology Co.,Ltd.

When any software upgrade is required, please copy the upgrade file into the subdirectory of U disk, click “software

upgrade” to load it. Then follow instructions to upgrade it.

English: this machine supports Chinese and English. To convert it into English, a password is required.

8.1 Feeder Position Config

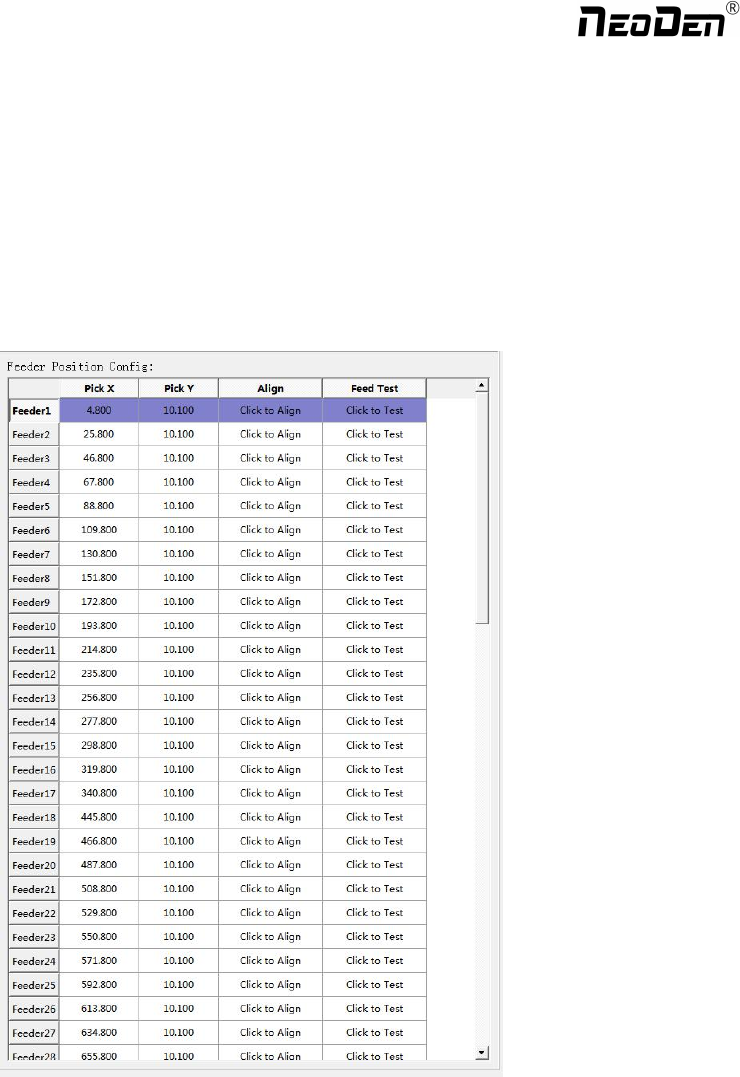

This interface is used to setup pick offset and test feeding for each feeder.

The left column refers to feeder No., Pick X and Pick Y refer to the coordinates of pick offset. After “click to align”, this

interface will be displayed. Align the center of component (edge of tablet), then save it.

Zhejiang NeoDen Technology Co.,Ltd.

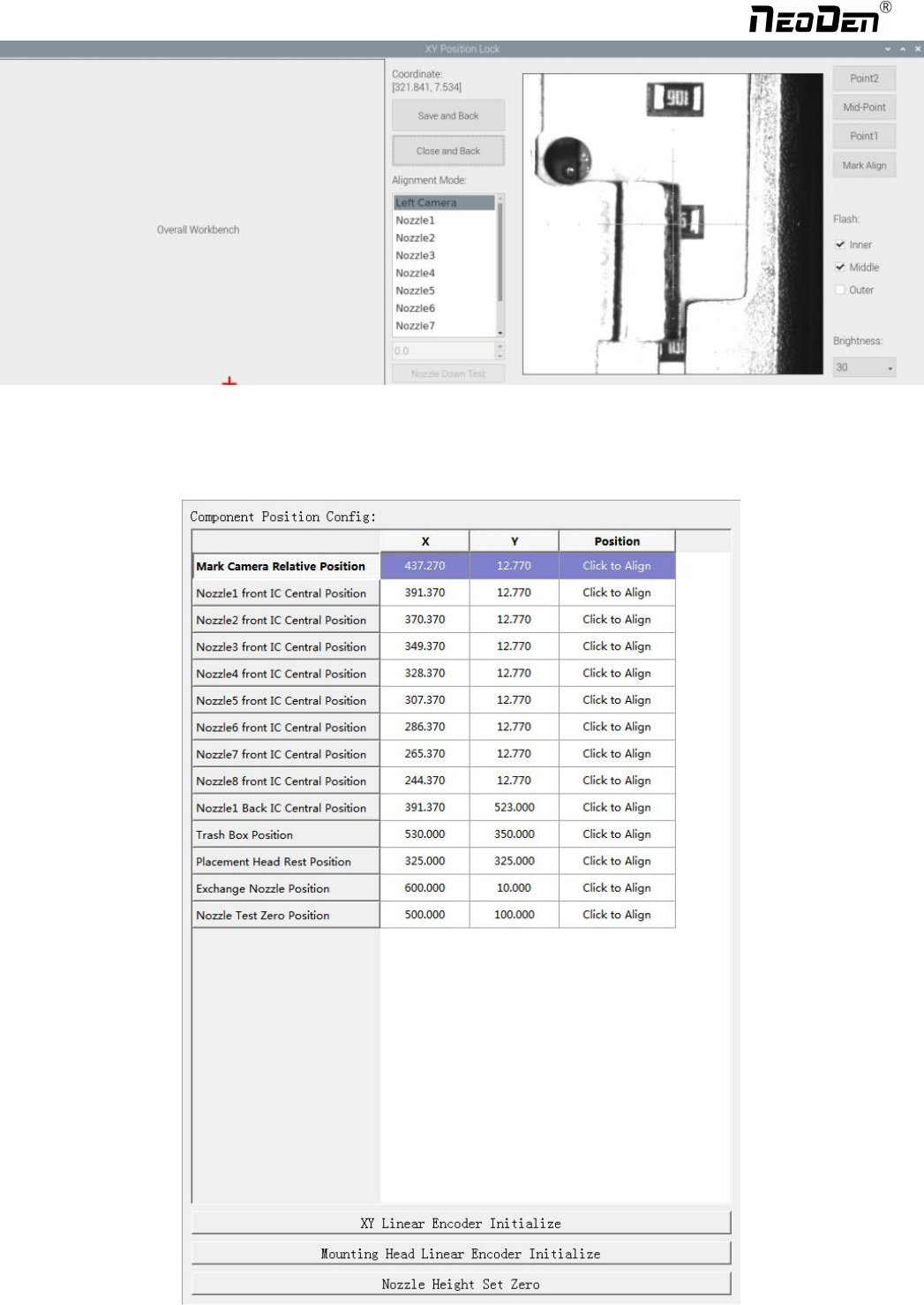

8.2 Component Positions Setup
