11. Structure and maintenance instruction
11.1 Feeder Brief Introduction
44
Zhejiang NeoDen Technology Co.,Ltd.
①Front fixed buckle
②Material-sending wheel gear
③Press material cover
④Locking Claw
⑤Tail board
⑥Single-track wheel
⑦Hand Shank
⑧Tape coiling wheel
⑨Cylinder
⑩Snap joint cover

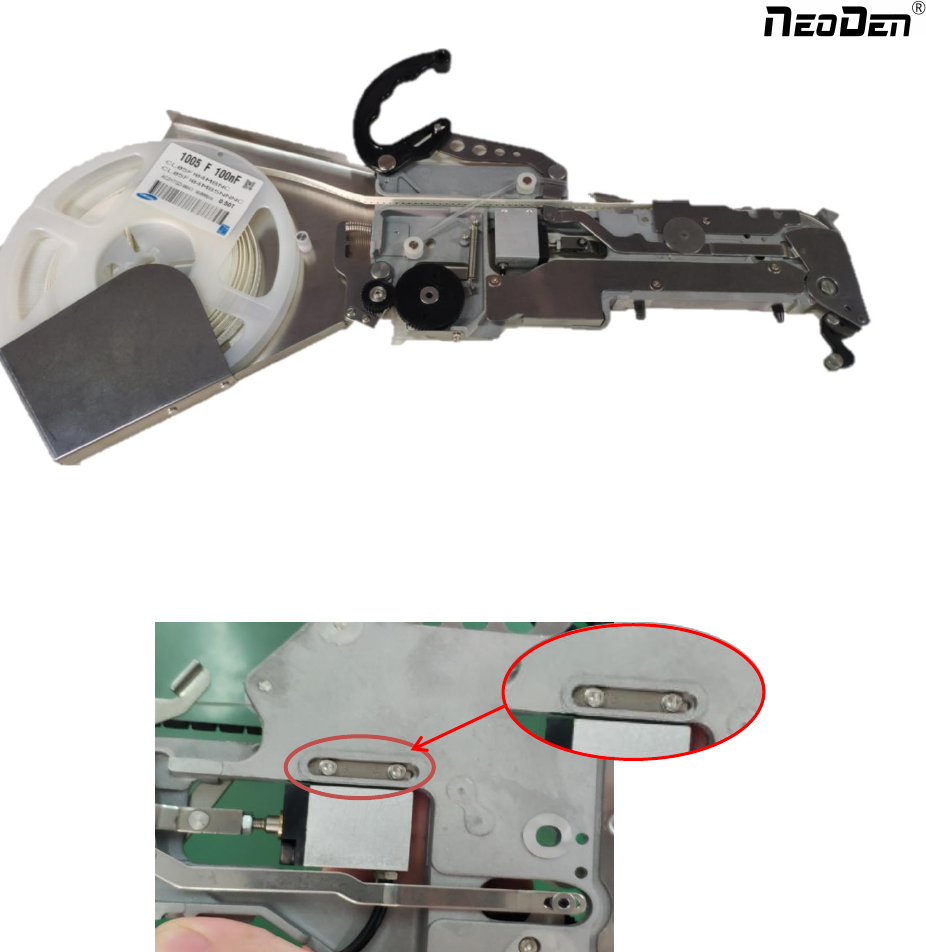

11.2Installing tape and reel components
图 1 图 2
1.Making the feeder in open status to wait for installing the tape reel ①Lift up the feeder
fixing handle；②Press the material-sending handle with left hand ③meanwhile press the
lamellule at right side of the feeder with your right hand；④loosen the material-sending handle, ensure the proper wrapped
(see figure 1) then loosen the lamellule
2.Installing the tape and reel components: setting the reel on reel storage at the back side of the
feeder, pull out approximately 10cm length tape, separate the film and tape, then put into
transfer storage (see figure 1).The tape should be closely matched with the gear, and the
film should pass through the upper denomination groove (see figure 2) through two white
guide wheels and then be sandwiched between two gears.
45
Zhejiang NeoDen Technology Co.,Ltd.
图 3
1. Finish installing tape and reel components
图 4
For 12mm,16mm width feeder, the feed rate can be adjusted by adjusting the parameters of the
feed regulator.
11.3Incorrect installation Samples：
1. Incorrect setting of reel in reel storage (see figure.5)
46
