W a r n i n g : wh en i n s t a l li n g th e f e e d e r o n t h e e q u i p m e n t , m a k e su r e th e r e is n o fo re i g n ma t t e r o n t h e fe e d e r fi x e d p l a te , a n d m a k e th e b o t t o m su r f…
图 5
2.The film is twisted, not tight enough, or the film is not between the white guide wheel and
the black gear
3.Cautions: Strictly refer to the instruction manual to use the feeder, and non-standard
operation is strictly forbidden
Warning: when installing the feeder, if feel the hand press is not strong, or loose match in place, then it is
forbidden to operate. Otherwise will cause feeder floating in the operation and collision problem. In case of this situation,
please contact the after-sales department of our company
47
Zhejiang NeoDen Technology Co.,Ltd.
Warning: when installing the feeder on the equipment, make sure there is no foreign matter on
the feeder fixed plate, and make the bottom surface of the feeder fully fit with the fixed plate. The handle is the main way
to lock the feeder, so pls pay attention to protect this part. (Note:
Don’t move the feeder while the equipment is running, or it may cause collision problem.)
11.3.1Nozzle
The size of the nozzle
Please choose nozzles according to the shape and size of components.
Table1-1 Nozzle
Type Regular Regular Regular Regular Regular Regular Regular Regular
Model
CN030 CN040 CN065 CN100 CN140 CN220 CN400 CN750
Illust
ration
Extern
al
Diame
ter
0.6mm 0.8mm 1.0mm 1.8MM 2.0mm 3.6mm 5.0mm 9.0mm
Inner
Diame
ter
0.3mm 0.4mm 0.7mm 1.0MM 1.4mm 2.2mm 4mm 7.5mm

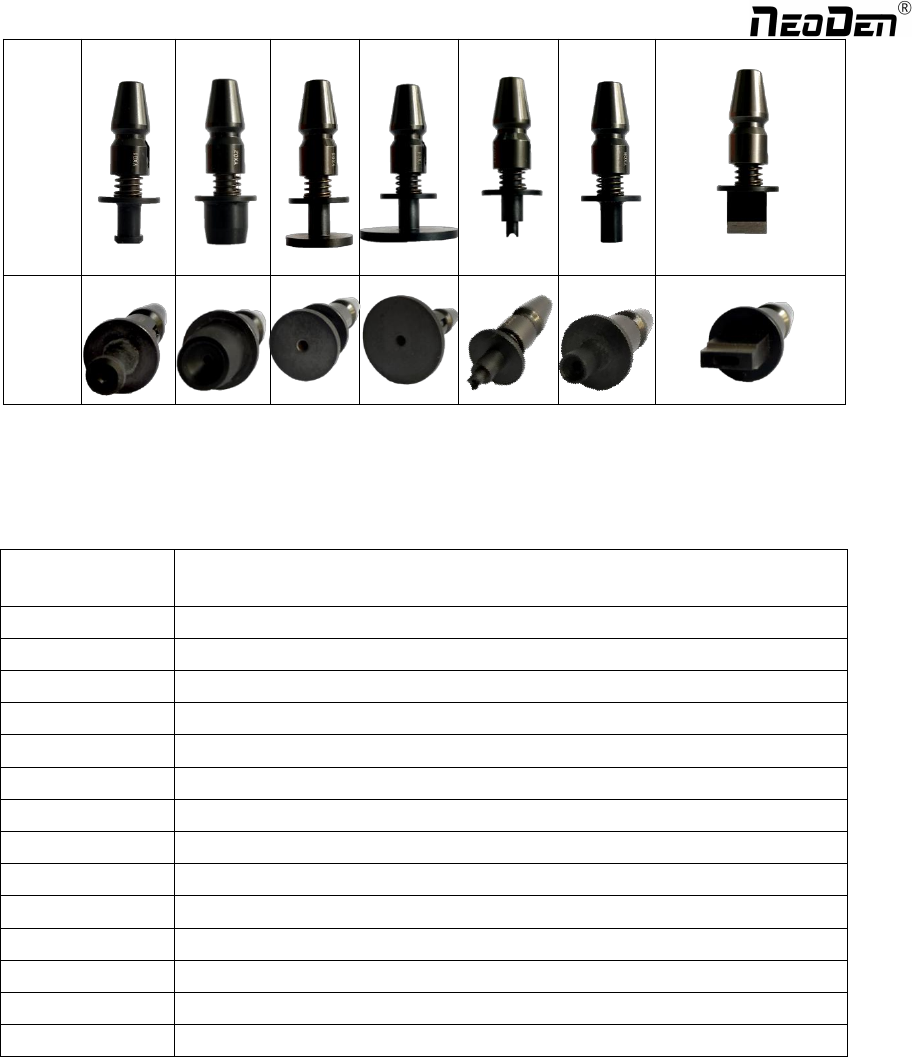

Type Special Special Special Special Special Special Special custom
Model
YX01 YX02 YX03 YX04 YX05 YX06 -
48
Zhejiang NeoDen Technology Co.,Ltd.
Illust
ration
Shape
The reference of nozzles selection
In order to ensure the placement accuracy，please select nozzles according to the shape and size of components
Table 1-2 size comparison of Nozzles
12. Maintenance
12.1 Take effective measures to reduce /avoid malfunction
12.1.1 Reinforce daily maintenance
P&P machine is that high-accuracy device which requires a clean working environment with constant temperature and
humidity, so it’s necessary to have a routine maintenance.
12.1.2 Requirements for operator
●Operator should get a basic operator training, which should cover fully all the skills and knowledge needed to safely
operate the type of pick and place machine.
Model Recommendation（Imperial system）
CN030 0201
CN040 0402（optimal）
CN065 0402、0603 etc.
CN100 0805、diode、1206、1210 etc.
CN140 1206、1210、1812、2010、SOT23、5050, etc.
CN220 SOP series ICs、SOT89、SOT223、SOT252, etc.
CN400 ICs from 5 to 12mm
CN750 ICs bigger than 12mm
YX01 3528serices Soft bead
YX02 High power lamp beads
YX03 Chips and BGA from 11mm to 17mm BGA
YX04 Chips and BGA bigger than 17mm
YX05 4148 circular diode
YX06 3535 ball shape LED(Spherical height 1.4mm,overall height 1.9mm）
