图 5 2.The film is twisted, no t tight enough, or the film is not betwe en th e white guide whee l and the b lack gear 3.Caution s: Strictly refer to the ins truction manua l to us e the feed er , a nd non-standa rd opera…
图 3
1. Finish installing tape and reel components
图 4
For 12mm,16mm width feeder, the feed rate can be adjusted by adjusting the parameters of the
feed regulator.
11.3Incorrect installation Samples：
1. Incorrect setting of reel in reel storage (see figure.5)
46
Zhejiang NeoDen Technology Co.,Ltd.
图 5
2.The film is twisted, not tight enough, or the film is not between the white guide wheel and
the black gear
3.Cautions: Strictly refer to the instruction manual to use the feeder, and non-standard
operation is strictly forbidden
Warning: when installing the feeder, if feel the hand press is not strong, or loose match in place, then it is
forbidden to operate. Otherwise will cause feeder floating in the operation and collision problem. In case of this situation,
please contact the after-sales department of our company
47
Zhejiang NeoDen Technology Co.,Ltd.
Warning: when installing the feeder on the equipment, make sure there is no foreign matter on
the feeder fixed plate, and make the bottom surface of the feeder fully fit with the fixed plate. The handle is the main way
to lock the feeder, so pls pay attention to protect this part. (Note:
Don’t move the feeder while the equipment is running, or it may cause collision problem.)
11.3.1Nozzle
The size of the nozzle
Please choose nozzles according to the shape and size of components.

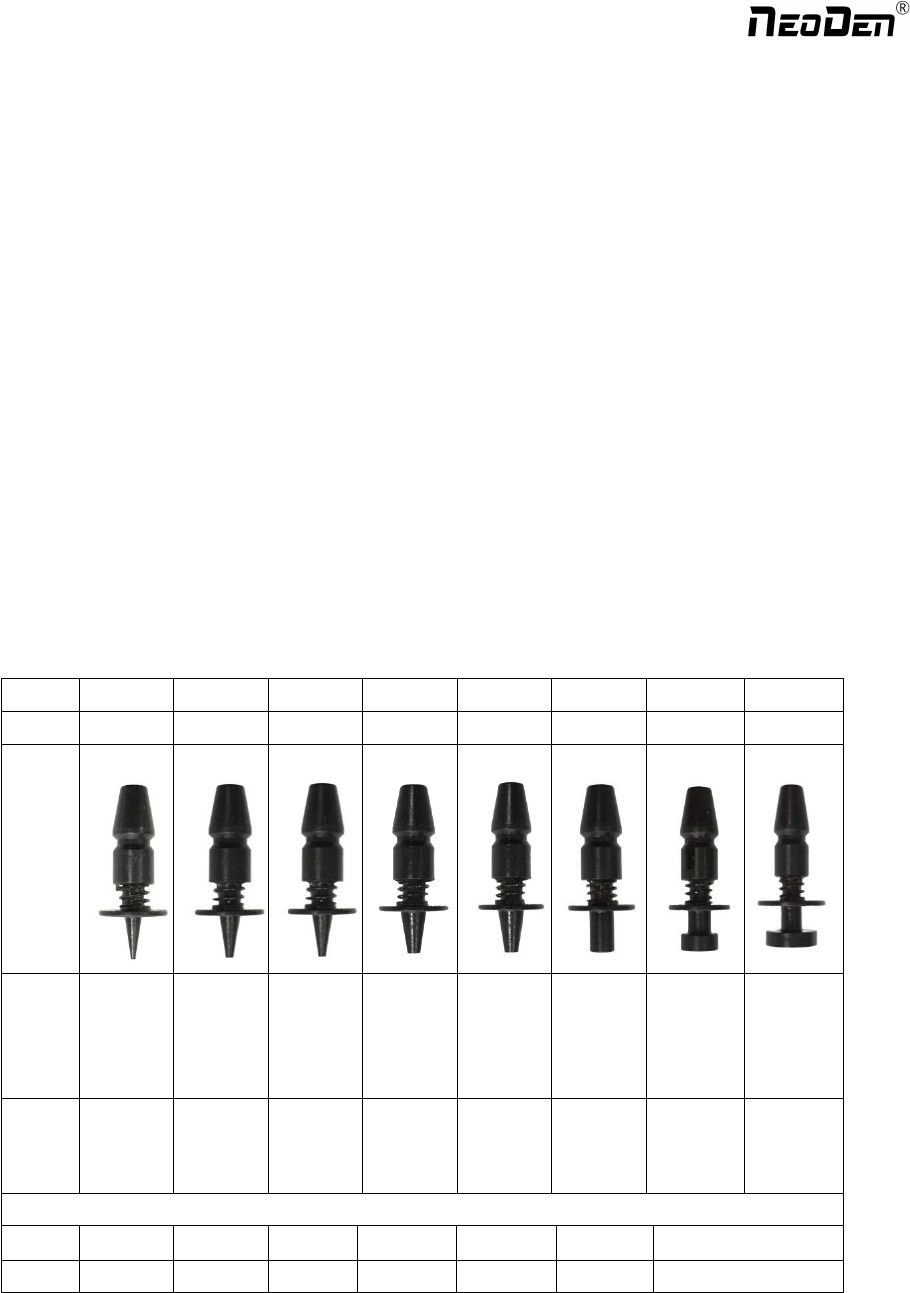

Table1-1 Nozzle
Type Regular Regular Regular Regular Regular Regular Regular Regular
Model
CN030 CN040 CN065 CN100 CN140 CN220 CN400 CN750
Illust
ration
Extern
al
Diame
ter
0.6mm 0.8mm 1.0mm 1.8MM 2.0mm 3.6mm 5.0mm 9.0mm
Inner
Diame
ter
0.3mm 0.4mm 0.7mm 1.0MM 1.4mm 2.2mm 4mm 7.5mm
Type Special Special Special Special Special Special Special custom
Model
YX01 YX02 YX03 YX04 YX05 YX06 -
48
