Feeder setting
All components’ setting on this files list, like: nozzle selecting, stack setting, the location of pick components, adjustment
setting, and others components’ setting need to be finished here. We can see that No.1-33 stack on bottom line, No.34-66
stack on top line, No. 67-76 feeders are the tray stack.
5.1 Function of feeder setting interface
(1) Assign all sequentially: After complete component information setting, click ‘Assign all sequentially’, the setting
information will be assigned to each feeder automatically.
(2) Assign feeder and nozzle: After complete stack information and nozzle setting, click ‘Assign feeder and nozzle’, all
information will update to the component list automatically.

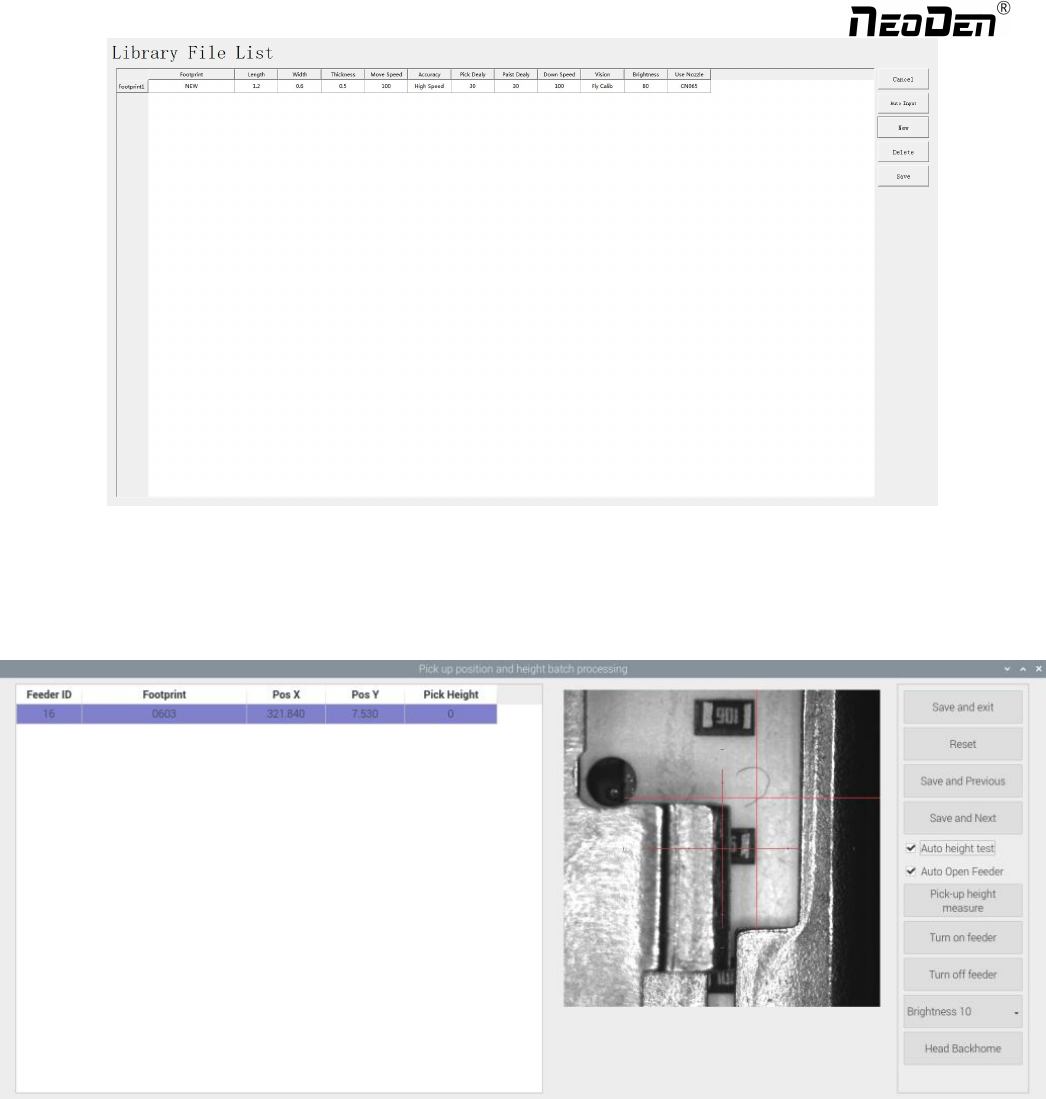

(3) Footprint library: The normal component information is saved in the footprint library including name, length, width,
height, edge, pitch etc. Please note the detail information for the IC is necessary. The interface of footprint library as below:
25
Zhejiang NeoDen Technology Co.,Ltd.
Press “Add” button, a new footprint can be edited into the library; For footprints not required, please directly select them
and press “Delete” button to move them. Save the setting before exit.
(4)Scale editing for pick position: Press this button, it will show below：
Scale setting for pick position: please select one stack to start setting (default start from the first assigned stack), at the same
time, a real-time image will be showed as right side. Please set the red cross to the component center ( generally if the
feeder is in off condition, red cross will be at the edge of feeder’s tape cover ), click “save and next” until all be set well and
there will be beep sound as a warning, then click “save and exit” will be OK. After that, you can select any feeder’s pick
position as a test.
While setting the pick position, the function of “Feeder open”/ “Feeder close” can help setting the cross position more
conveniently.
26
Zhejiang NeoDen Technology Co.,Ltd.
5.2 Feeder setting
Select one feeder, tick “Apply”, then its related info can be edited such as feeder exchange, feeder, nozzle, IC tray feeder etc.
The setting sequence for them should be: Feeder (or IC tray feeder)→ Feeder basic information→ Nozzle.
P. S.: 1) For feeders 1-66, the IC tray feeder is in disabled condition. 2) Feeder exchange depends on application condition,
if the tape reel was installed on wrong feeder, you can directly use feeder exchange to solve it.

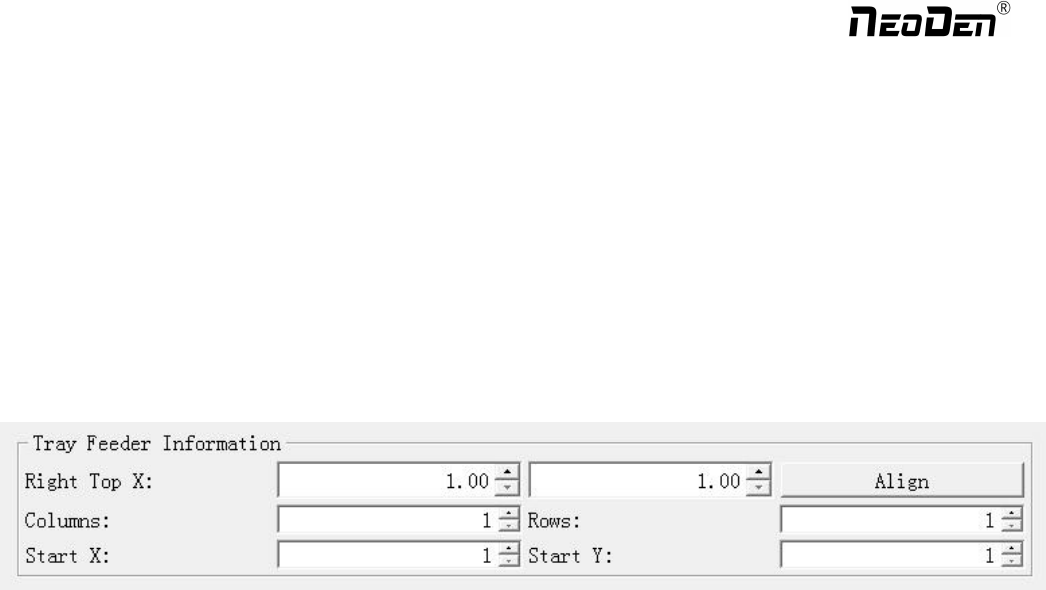

（1） IC tray feeder info
It is used to set tray package component’s pick position.
Right top XY: it refers to align the farthest component on the tray (generally take the component at right top as the
final one on the tray, and take the component at left bottom position as the first one)
X qty: it refers to how many components in X direction
Y qty: it refers to how many components in Y direction
Start X, Start Y: It refers to the first IC in X/Y direction if the tray is in full package; If some ICs have been used whic
h cause the tray is not full, you can directly set the exact position as actual situation, start X will be the location of its a
ctual column and start Y will be its actual location of row.
（2）Feeder basic info
Skip: once selected, all components in this feeder will be skipped.
Feeder exchange: this function can be used if any reel tape was installed at wrong or inappropriate position. Select
the feeder/ IC tray feeder you need to exchange, then the related feeder info will be synchronized to the swapped
feeder/ IC tray feeder.
Pick XY: Align the first component position in the feeder as fig.4.2.2, which is Mark camera align the component
central position, then click ”save and back”, the well-saved position’s X/Y coordinates will be automatically show up
as fig. 4.2.1 (P.S.: pick position can be set one by one or be set by the scale setting, scale setting is more convenient).
