8.Nozzle Height Set Zero

8.3 Basic Configuration

Warning: this is only for factory setting. DON’T click before getting any instruction from

NeoDen technical engineer.

Zhejiang NeoDen Technology Co.,Ltd.

Fiducial Camera Brightness and IC Camera Brightness: the brightness of each camera is set before shipping, it can be

adjusted during operation.

Fiducial Camera Initial Angle and IC Camera Initial Angle:

Rails Feeding Time: the time it costs to feed a PCB from conveyor to Rail #1 when the machine is in continuous production.

Safety cover: to prevent any body damage during picking and placing, enter value 1 to activate the function of cutting off

power for motors when the safety cover is opened.

Warning: both data are set up before shipping, no extra adjustment is required.

There is a risk to lead to malfunctional condition, please kindly contact technical engineer before

operation.

Zhejiang NeoDen Technology Co.,Ltd.

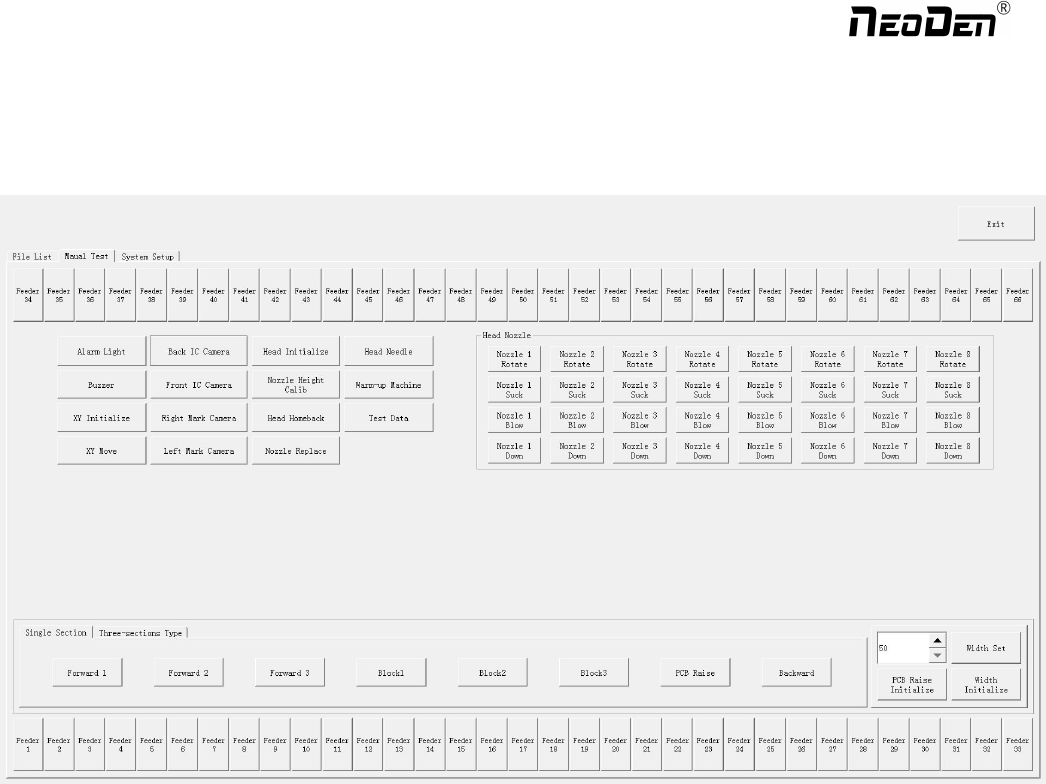

9. Manual Test

This interface is used to test each part’s function.

1.Feeder No.1-No.66: after loading tape reel on feeder, click the feeder to test its feeding function.

2.Alarm light: click it to test if the light could work correctly, the color should change from red, green to yellow by

sequence.

3.Buzzer: click it to test if it works

4.XY initialize: click to have XY back to zero

5.XY Move: click this button to enter vision interface, the movement mode are optional, use the crosshair to move the head.

6.Front IC Camera, Back IC Camera: click to test the photograph function.

7.Right Mark Camera,Left Mark Camera: click to test the photograph function.

8.Head initialize: head initialization can be executed before mounting

9.Nozzle Height Calib: click to calibrate 8 nozzles’ initial heights

10.Head Home back: click to move the head back to original left top position

11.Nozzle Replace: click to replace nozzles, the head will move to its position for easier replacement.

12.Head Nozzle: click to test rotation, suction, blow and moving down functions of nozzle NO.1-NO.8.

13.Width Set: after the initialization of rails width, enter the expected width, click Width Set, the rails be widened

accordingly
