1.4 Important Notice Figure 6 -The a ir sup ply of the equipment shall not b e less than0.6 MP Figure 7- Feede r Pressu re 0. 55MP W arning of failure risk of camera identif ication ， plea se referring to Figure 3 and Fi…
Figure 4-X-axis Beam
Figure 5-Main Placement Head Camera
7
Zhejiang NeoDen Technology Co.,Ltd.
1.4 Important Notice
Figure 6-The air supply of the equipment shall not be less than0.6MP Figure 7- Feeder Pressure 0.55MP
Warning of failure risk of camera identification，please referring to Figure 3 and
Figure 5：The following parts are forbidden to touch and impact
Front IC Camera Back IC camera Left mark camera Right mark camera
Left mark camera light source Right mark camera light source
Warning of accuracy failure risk, refer to Figure 3: The following components are
prohibited from touching and impacting.
Return to zero column
For the risk of accuracy failure, refer to Figure4: When manually moving XY, it must
be carried out on the X-axis beam moving point;
Warning of electric shock, be sure to follow the requirements below：
Connect the input power supply that meets the requirements of the equipment, the
electrical interface of the machine to the ground must be effectively grounded；
Any time you enter the case and stick to the head for maintenance, you need to shut down
the machine properly and cut off the power supply;
Warning of equipment life reduction，be sure to follow the requirements below：
When installing the equipment, the equipment must be leveled；
Correct shutdown: shut down the operating software and the system before turning off
the main
p
ower switch；
8
Zhejiang NeoDen Technology Co.,Ltd.

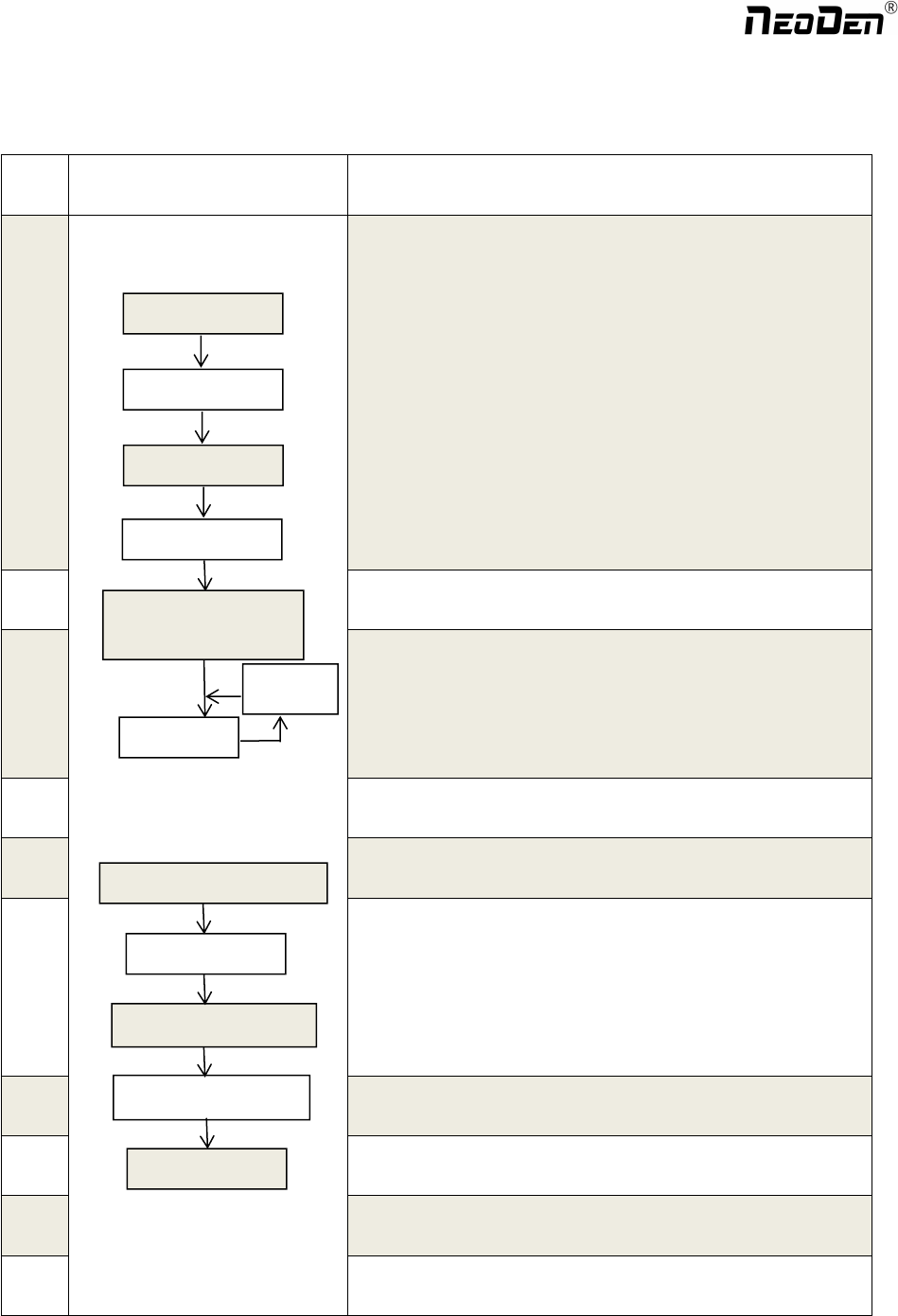

1.5 Operation flow chart
NO. Flow chart Note
1
1. The pick and place machine is a precision equipment. In the
installation position of the machine, it is necessary to carry out horizontal
correction before and after the equipment to prevent the uneven operation
of the equipment from damaging the service life of the equipment;
2. Connect and fix the equipment interface before and after the
equipment, and connect and fix the ground wire;
3. The access power must meet the requirements of power identification;
4. No less than 0.6mp air source input and adjust the pressure value to
OK;
5. Check the safety of the working area of the mounting head;
6. The XY transmission parts are not fastened and interfered, and check
that the emergency stop switch is in normal state;
2 Power on and turn the power switch clockwise;
3
1
，
1. When the self-test is carried out, the head indicator light of the
mounting head and the light source of the IC camera will be on and
flash briefly to indicate that the self-test is normal;
2
，
XY initialization (origin reset) is normal, the software enters the file
list interface, and no error report pops up;
4 After power on, directly enter the file list page;
5
See page 10 for the introduction of machine operation for
details;
6
Suggestions on production process:
1. First component confirmation: confirm the component angle
and polarity, component picking position and mounting
position;
2. Start production after confirming solder paste printing and
temperature setting;
7 Production process;
8
After the production is finished, reset the origin and prepare to
shut down;
9
Shut down the system via computer, then power off the
machine.
10
Disconnect the electricity supply after the system being
powered off.
Software shut down
System shut down
Power OFF
Exit
Production Finished
Pre
p
aration
Power ON
Automatic Test
Power on
p
a
g
e
Program and Edit;
Production
Shutdown ste
p
s
Mountin
g
Modify
Abnormal
Start-u
p
ste
p
s
9
