(2) T o enter a parameter , press the text box quickly twice. Or , double-click the text box with the pointing device. Fig. 3B135 The text box is set ready for data entry . Fig. 3B136 (3) When a parameter is entered, usi…

4.1.3 Basic Usage of Text Boxes

• How to enter numerical values

Follow the procedure below to enter numerical values in the text boxes

that require numerical values.

Using the "Tenkey" window

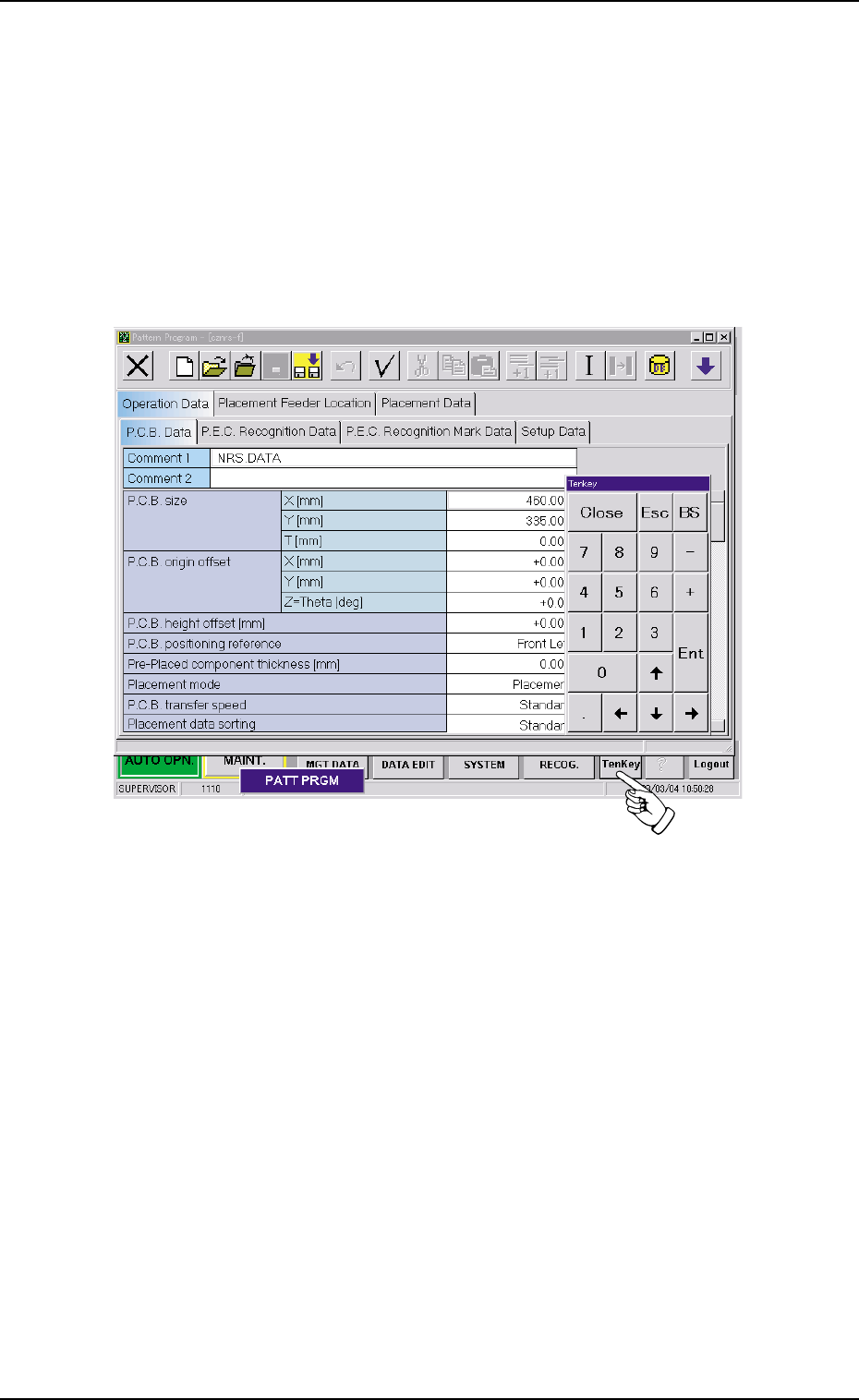

(1) Press the [TenKey] button on the main menu bar. The "Tenkey" win-

dow appears.

Fig. 3B134

4.1 Basic Operation

0303-005 2-84 AGS01EDTP

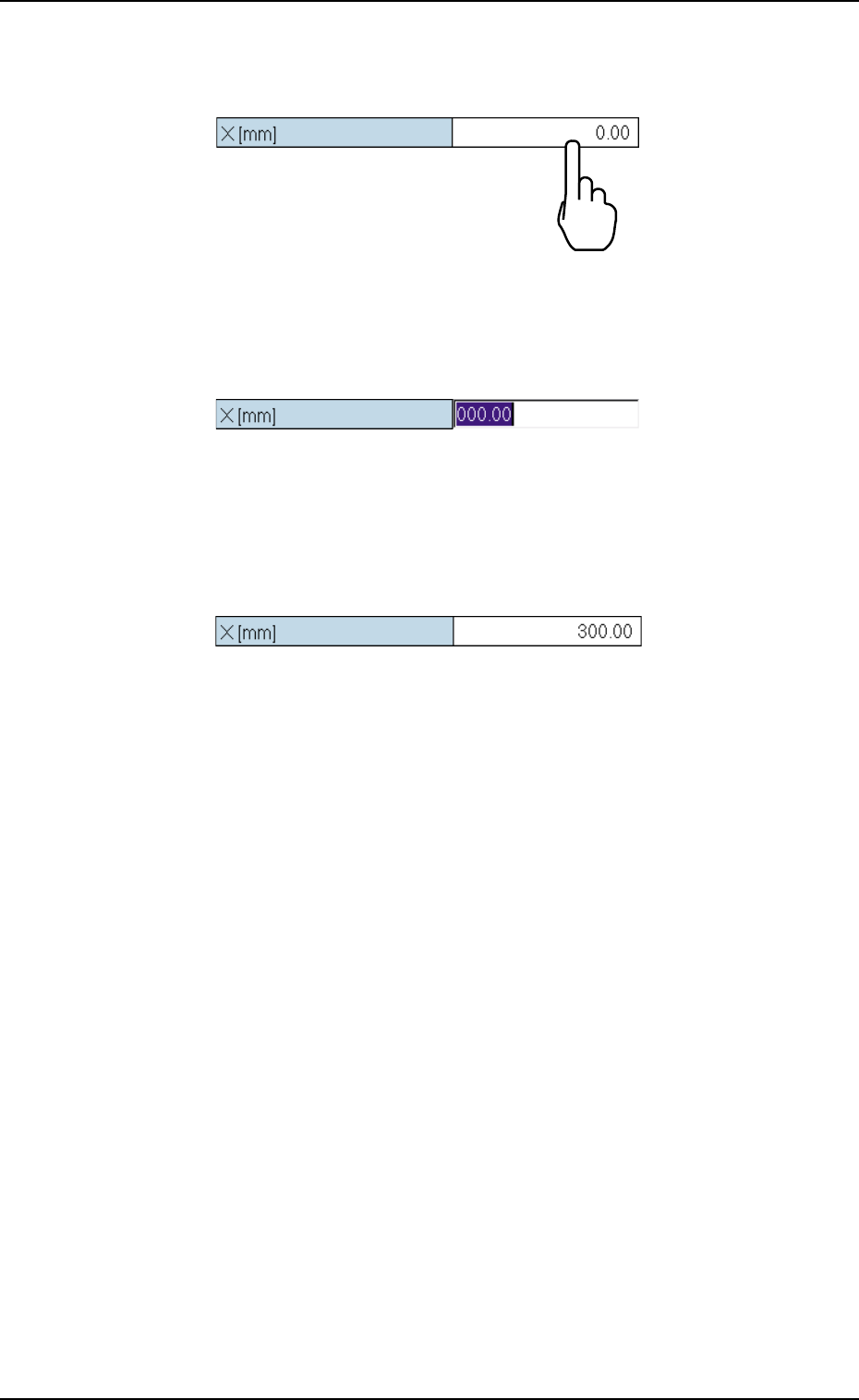

(2) To enter a parameter, press the text box quickly twice.

Or, double-click the text box with the pointing device.

Fig. 3B135

The text box is set ready for data entry.

Fig. 3B136

(3) When a parameter is entered, using the "Tenkey" window and the

[Ent] button is pressed, it is set in the text box.

Fig. 3B137

4.1 Basic Operation

01 12-003 2-85 AGS01EDTP

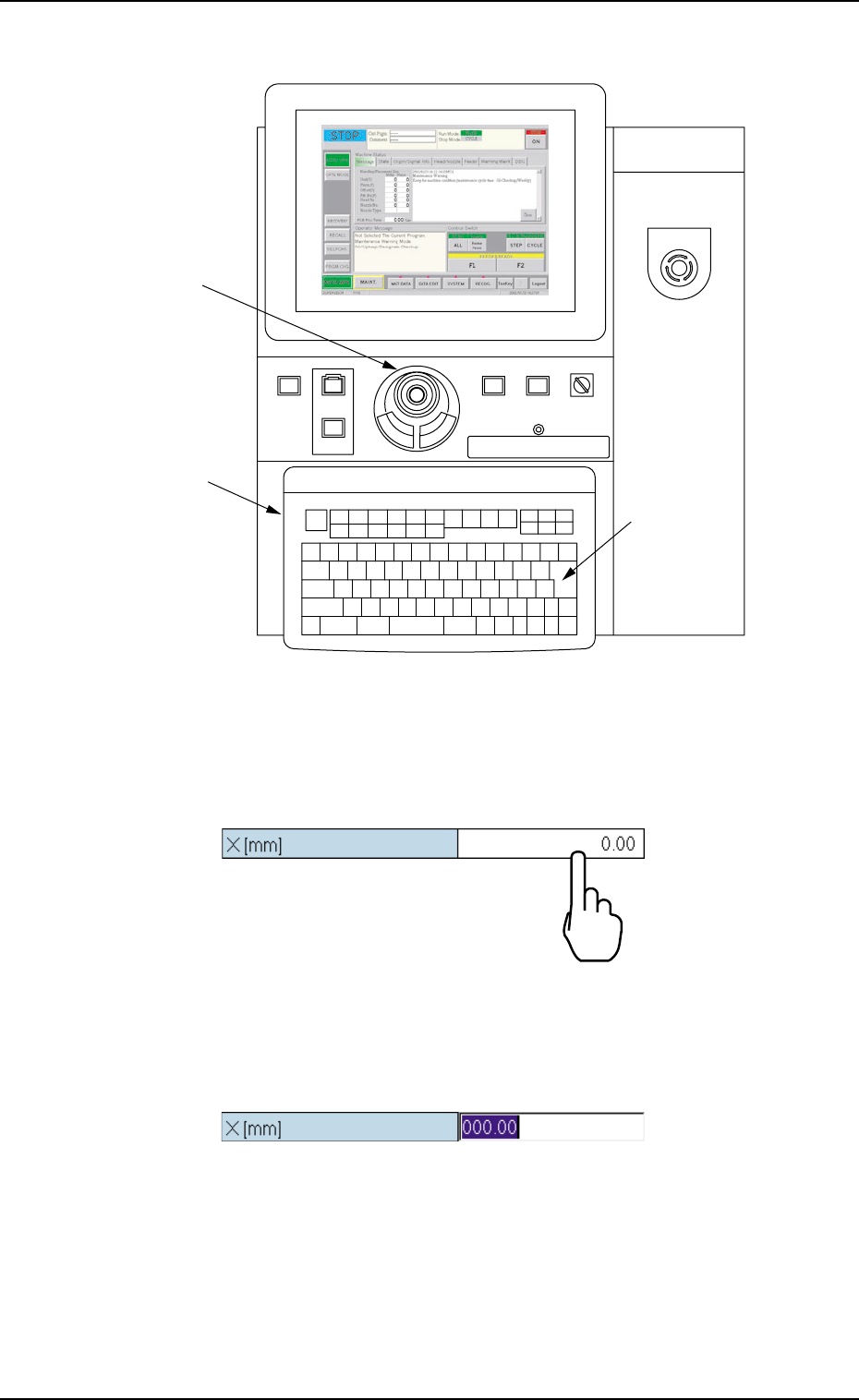

How to enter a parameter through keyboard navigation

Fig. 3B138 Keyboard and Pointing Device

(1) To enter a parameter, press the text box quickly twice.

Or, double-click the text box with the pointing device.

Fig. 3B139

The text box is set ready for data entry.

Fig. 3B140

POWER ON

STOP

START

ENABLE

RUN SETUP

OPERATION

LOCK

PNL CHANGE

Pointing Device

Keyboard

[ENTER] Key

EMERGENCY

4.1 Basic Operation

0307-005 2-86 AGS01EDTP
