5.4 "Others" Tab

The corresponding tab sheet enables the operator to connect the com-

puter system of the machine to the local network.

• Sheet Layout

When the "Others" tab is pressed, the following tab sheet appears.

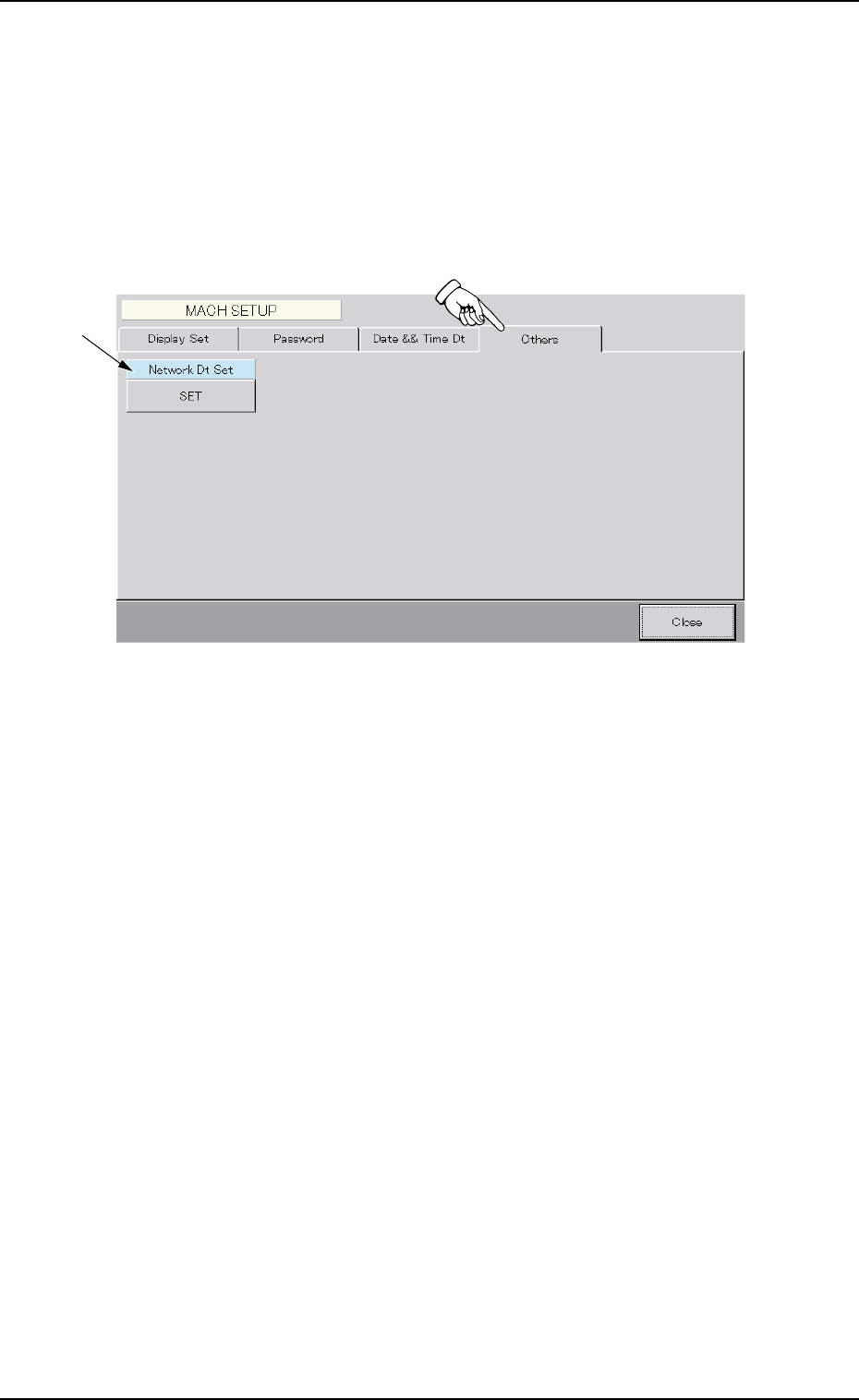

Fig. 3E52-10 "Others" Tab Sheet

• Sheet Composition

*1 Network Dt Set

To connect the computer system of the machine to the local net-

work, press the [SET] button.

0303-001 5-77 AGS01EDTP

Section 6

Supplementary Material

0307-004 6-A AGS01EDTP

The samples of the pattern program data sheets are at-

tached as supplementary material.
