6 Repairing the X Feeder modules 6.4 Tape Drive Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 27 6.4 Tape Drive 6.4.1 Pickup Window Required spare parts Example: pickup window 8-12mm (top), 24mm (bottom) Feeder mod…
6 Repairing the X Feeder modules
6.3 Left Side Cover
26 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017
Designation Size Torque Quantity
RF-SN85 2.5 x 7.5 mm 0.6 Nm 1
RF-SN75 2.5 x 6 mm 0.6 Nm 4
SN213307 M2.5x5mm 0.9 Nm 11
ISO7046 M2.5x6mm 0.9 Nm 3
SN213307 M2.5x4mm 0.9 Nm E
For 4-12mm feeder modules only
► Now fit the rear sliding guide onto the feeder (see 6.2.2 "Fitting the Rear Sliding Guide" [}22]).
6 Repairing the X Feeder modules
6.4 Tape Drive
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 27
6.4 Tape Drive
6.4.1 Pickup Window
Required spare parts

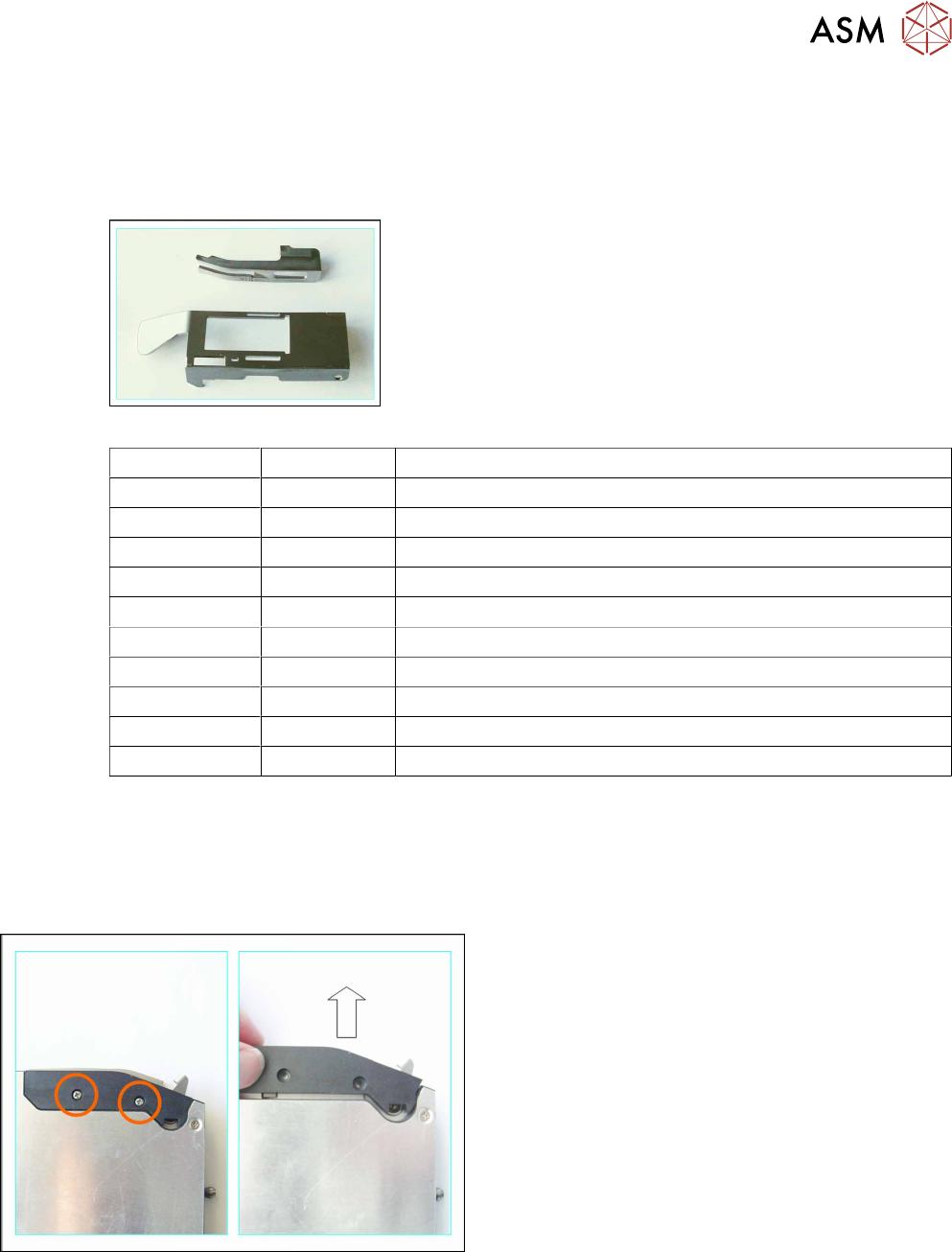

Example: pickup window 8-12mm (top), 24mm (bottom)
Feeder module Item no. Designation
4 mm 03088366-Sxx Pickup window /X4
8 mm 03010085-Sxx Pickup window /X8
12 mm 03012057-Sxx Pickup window /X12
16 mm 03021035-Sxx Pickup window assembly, /X16
24 mm 03021046-Sxx Pickup window assembly, /X24
32 mm 03021048-Sxx Pickup window assembly, /X32
44 mm 03021059-Sxx Pickup window assembly, /X44
56 mm 03021232-Sxx Pickup window assembly, /X56
72 mm 03021233-Sxx Pickup window compl. X7 2
88 mm 03021235-Sxx Pickup window assembly, /X88
Required tools
●
Phillips screwdriver
●
Tweezers
6.4.1.1 Removing the Pickup Window (4 - 12 mm)
For 12mmX feeders only
► Carefully place the feeder module down on its left
side.
► Loosen the two screws marked in the diagram.
► Lift the filler piece out of the feeder module.
6 Repairing the X Feeder modules
6.4 Tape Drive
28 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017
► If present, first remove the tape support (spacer).
Push this tape support to the front and out of the
pickup window.
► Loosen the two screws marked in the diagram.
► Turn the feeder module over and shake the two
screws, the tape slider spring and the spring
holder out of the pickup window.
► Loosen the bearing screw.
► Push the pickup window vertically to the feeder
module out of the tape drive.
Make sure that the pickup window is NOT distor-
ted.
6.4.1.2 Fitting the Pickup Window (4 - 12 mm)
► Carefully place the feeder module down on its left
side.
► Push the pickup window vertically into the tape
drive.
Make sure that the tip of the pickup window is in-
side the window lift.
