6 Repairing the X Feeder modules
6.5 Foil Disposal
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 53

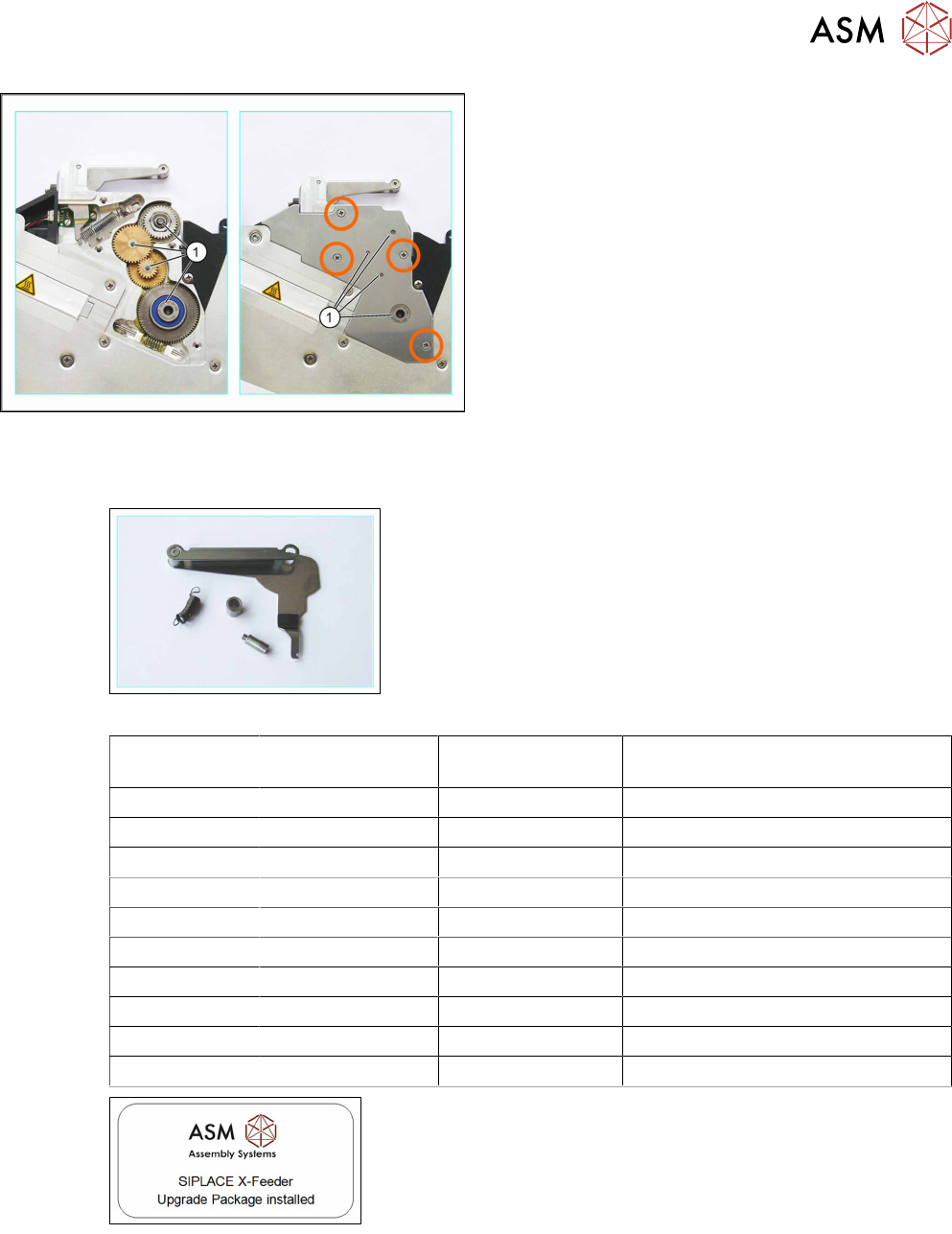

► Place the cover plate onto the foil disposal drive.
Make sure that the cover plate engages at the 3
toothed wheel axes (1).
Also make sure that the cover plate lies flat on
the side cover.
► Fix the cover plate with the 4 countersunk screws
marked in the diagram (M2.5 x 5mm).
► Fit the stripping device (depending on the feeder
module, see 6.5.2 "Stripping Device Foil Dis-
posal" [}49]).
► Re-fit the foil disposal drive (depending on the
feeder module, see 6.5.1 "Foil Disposal Drive
Assembly" [}37]).
6.5.4 Foil Rocker
Required spare parts
Example: foil rocker 8mm
Feeder module Item no. Module
Version <= -06
Item no. Module
Version >= -07
Designation
4 mm 03062904-xx 03062904-xx Foil rocker assembly, /X4
8 mm 03003264-xx 03003264-xx Foil rocker assembly, /X8
12 mm 03004861-xx 03004861-xx Foil rocker assembly, /X12
16 mm 03055644-xx 03117065-xx Foil rocker assembly, /X16
24 mm 03055600-xx 03117103-xx Foil rocker assembly, /X24
32 mm 03055603-xx 03117107-xx Foil rocker assembly, /X32
44 mm 03055604-xx 03117109-xx Foil rocker assembly, /X44
56 mm 03055606-xx 03117176-xx Foil rocker assembly, /X56
72 mm 03055655-xx 03117341-xx Foil rocker assembly, /X72
88 mm 03055660-xx 03117357-xx Foil rocker assembly, /X88
Modules with upgrade kit:
Feeder modules which contain an upgrade kit (marked with a label
on the left), can have the module version -07 foil rocker fitted as a
spare part (item no.).
Required tools
●
Flat bladed (slotted) screwdriver
●
Phillips screwdriver
●
TORX screwdriver size T8
●
Hexagon socket-head screwdriver size 2
●
Split pin punch size 1.4
●
Tweezers
6 Repairing the X Feeder modules
6.5 Foil Disposal
54 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

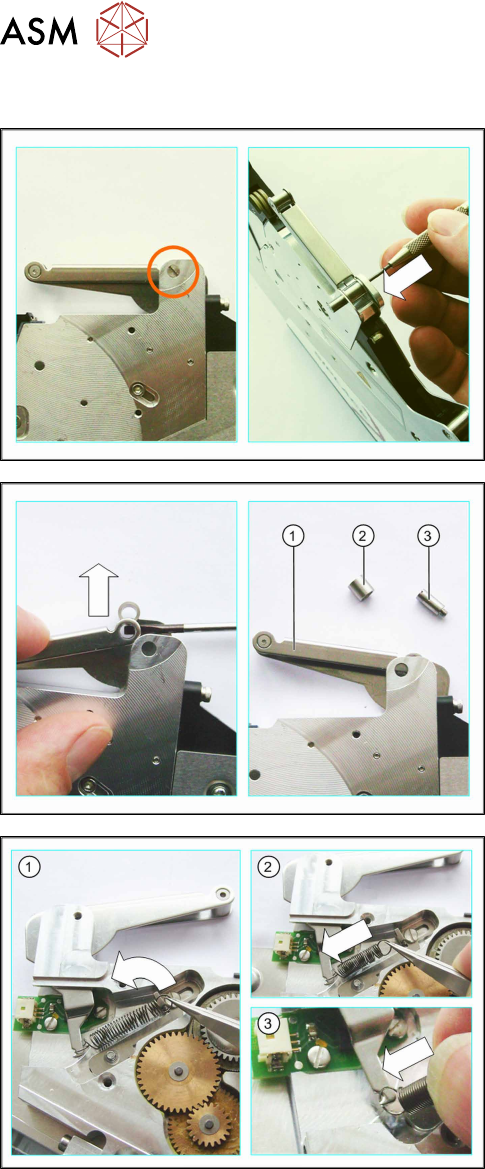

6.5.4.1 Removing the Foil Rocker (4 - 88 mm)
► Place the feeder module down on its left side.
► Loosen the bearing shaft marked in the diagram.
The shaft thread ends after several millimeters.
► Lift the feeder module.
► Press the bearing shaft out of the foil rocker from
the other side, with a split pin punch.
► Remove the roller from the foil rocker.
(1) Foil rocker
(2) Roller
(3) Bearing shaft
► Remove the ratchet (see 6.5.5.1 "Removing the
Ratchet (4 - 12 mm)" [}56]).
► Loosen the spring from its holding device (1) and
from the hook on the foil rocker (3) with a pair of
tweezers.
6 Repairing the X Feeder modules
6.5 Foil Disposal
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 55

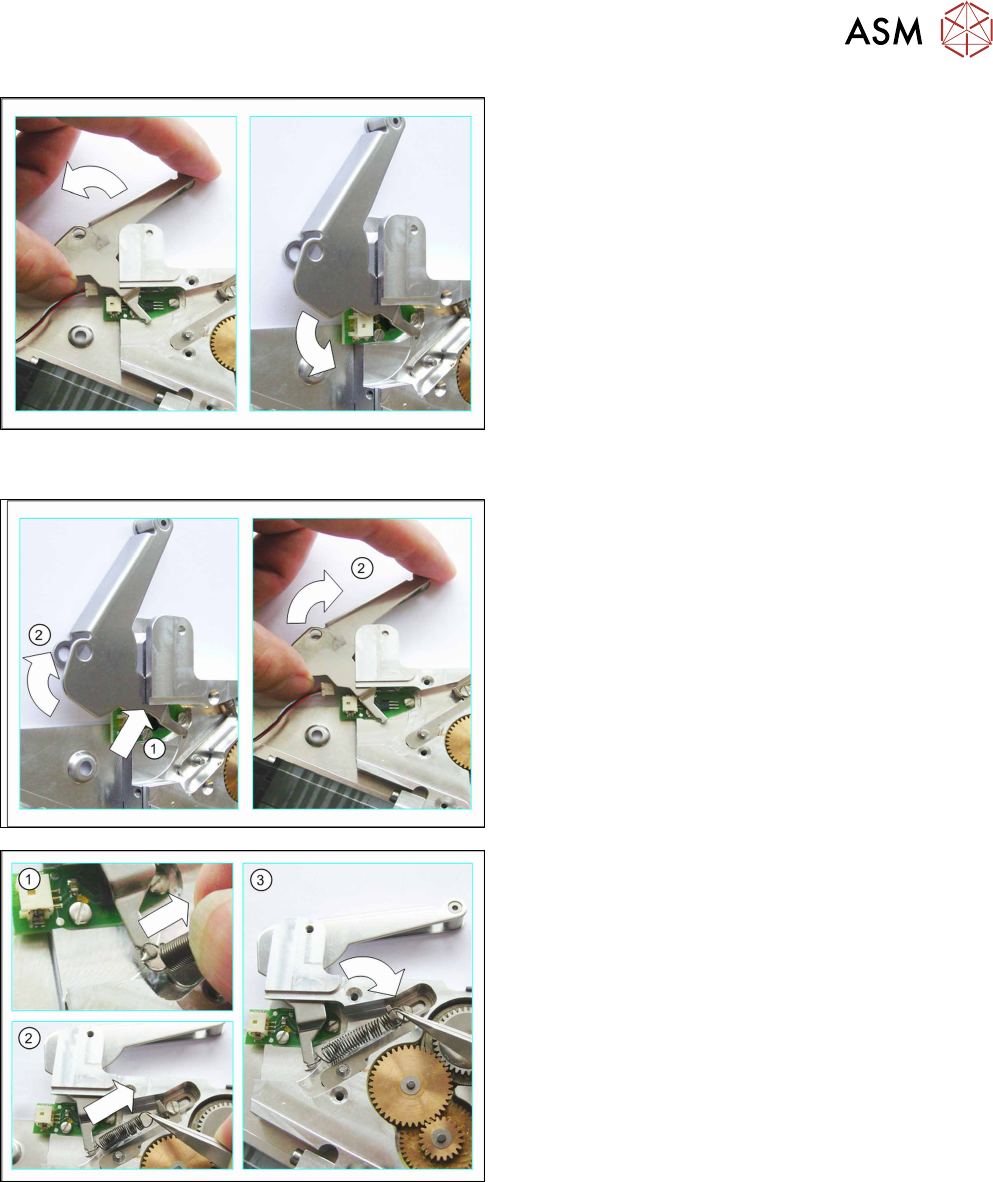

► Push the foil rocker to the left and out of the foil
disposal drive.
6.5.4.2 Fitting the Foil Rocker 4 - 88 mm)
► Push the foil rocker from the left into the gap on
the foil disposal drive.
► Fix the spring to the hook on the foil rocker (1)
and then to the holding device shown, with a pair
of tweezers.
► Fit the ratchet (see 6.5.5.2 "Fitting the Ratchet (4
- 12 mm)" [}58]).
