6 Repairing the X Feeder modules 6.5 Foil Disposal 66 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 6.5.6.2 Fitting the Flap (4–12mm) ► Carefully place the feeder module with the right side down on a stable, level…
6 Repairing the X Feeder modules
6.5 Foil Disposal
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 65

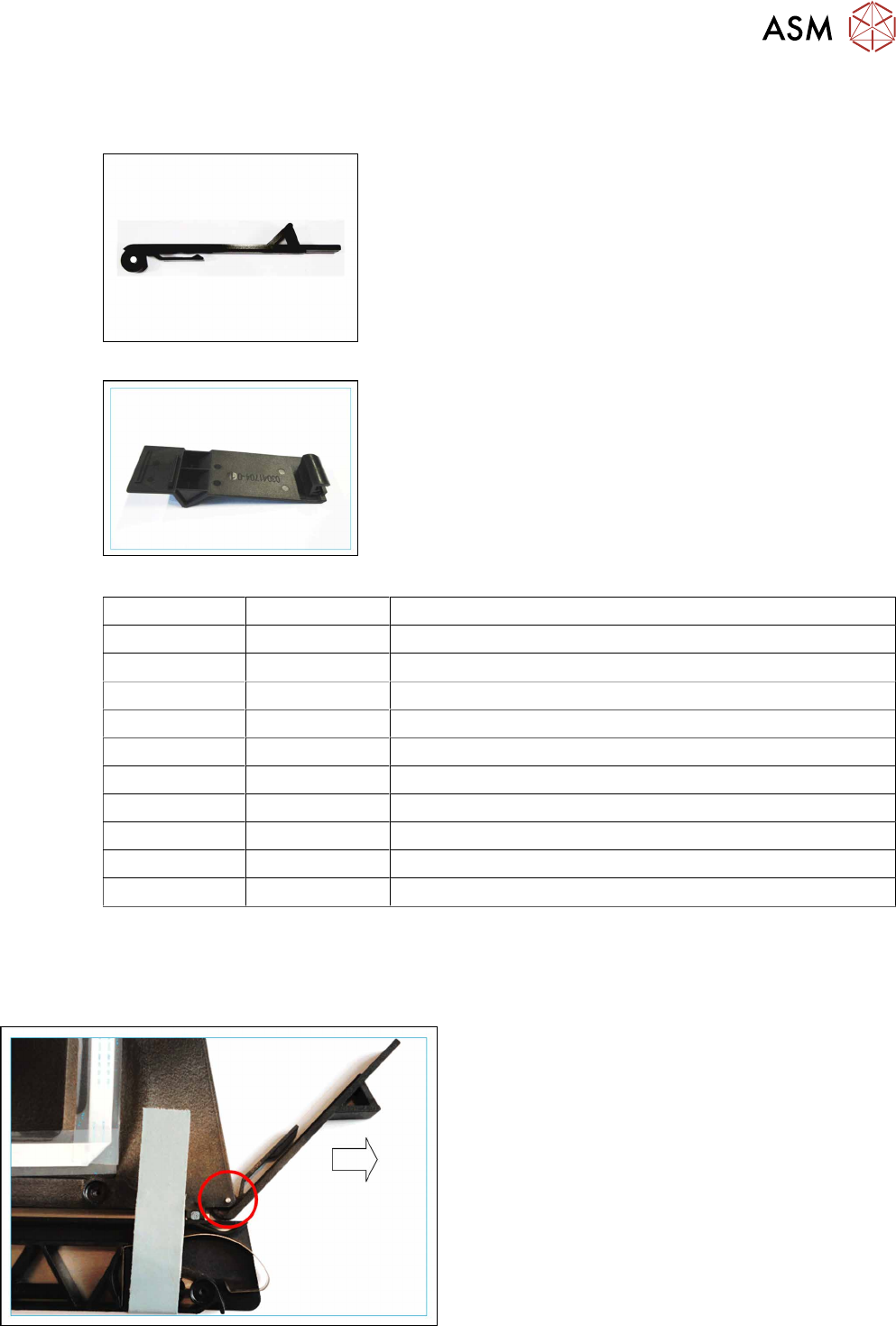

6.5.6 Tape Disposal Flap
Required spare parts
Fig.3: Example: foil disposal flap 8mm X
Fig.4: Example: foil disposal flap 24mm X
Feeder module Item no. Designation
4 mm 03088304-xx Foil disposal flap X4
8 mm 03003124-xx Flap / tape disposal X8
12 mm 03006127-xx Flap / tape disposal X12
16 mm 03096848-xx Flap / tape disposal X16
24 mm 03085750-xx Flap / tape disposal X24
32 mm 03085752-xx Flap / tape disposal X32
44 mm 03085790-xx Flap / tape disposal X44
56 mm 03085763-xx Flap / tape disposal X56
72 mm 03085772-xx Flap / tape disposal X72
88 mm 03085782-xx Flap / tape disposal X88
Required tools
●
Universal pliers
6.5.6.1 Removing the Flap (4–12mm)
► Remove the left side cover (see 6.3.1 "Removing
the Left Side Cover" [}23]).
► Pull the spindle out of the flap. Use universal pli-
ers for this.
► Remove the flap sideways from the feeder mod-
ule.
6 Repairing the X Feeder modules
6.5 Foil Disposal
66 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

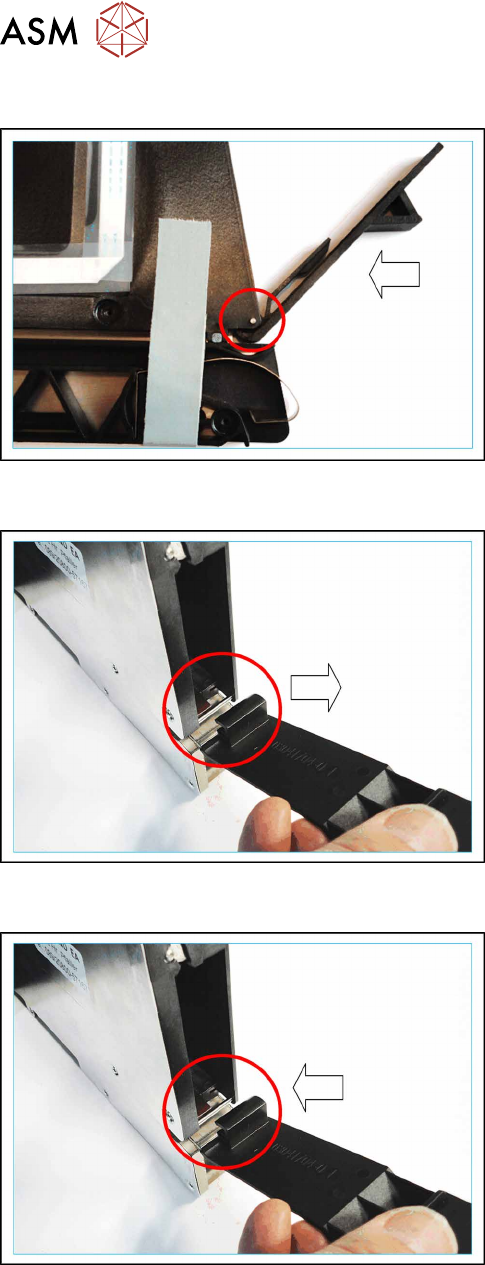

6.5.6.2 Fitting the Flap (4–12mm)
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Push the flap, as shown, sideways into the feeder
module.
► Press the spindle into the hole on the flap up to
the stop.
► Close the flap.
6.5.6.3 Removing the Flap (16–88mm)
► Open the flap.
► Pull the flap sideways from the feeder module.
(2)
6.5.6.4 Fitting the Flap (16–88mm)
► Fit the flap to the axis from behind as indicated.
► Close the flap.
6 Repairing the X Feeder modules
6.6 Rocker
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 67

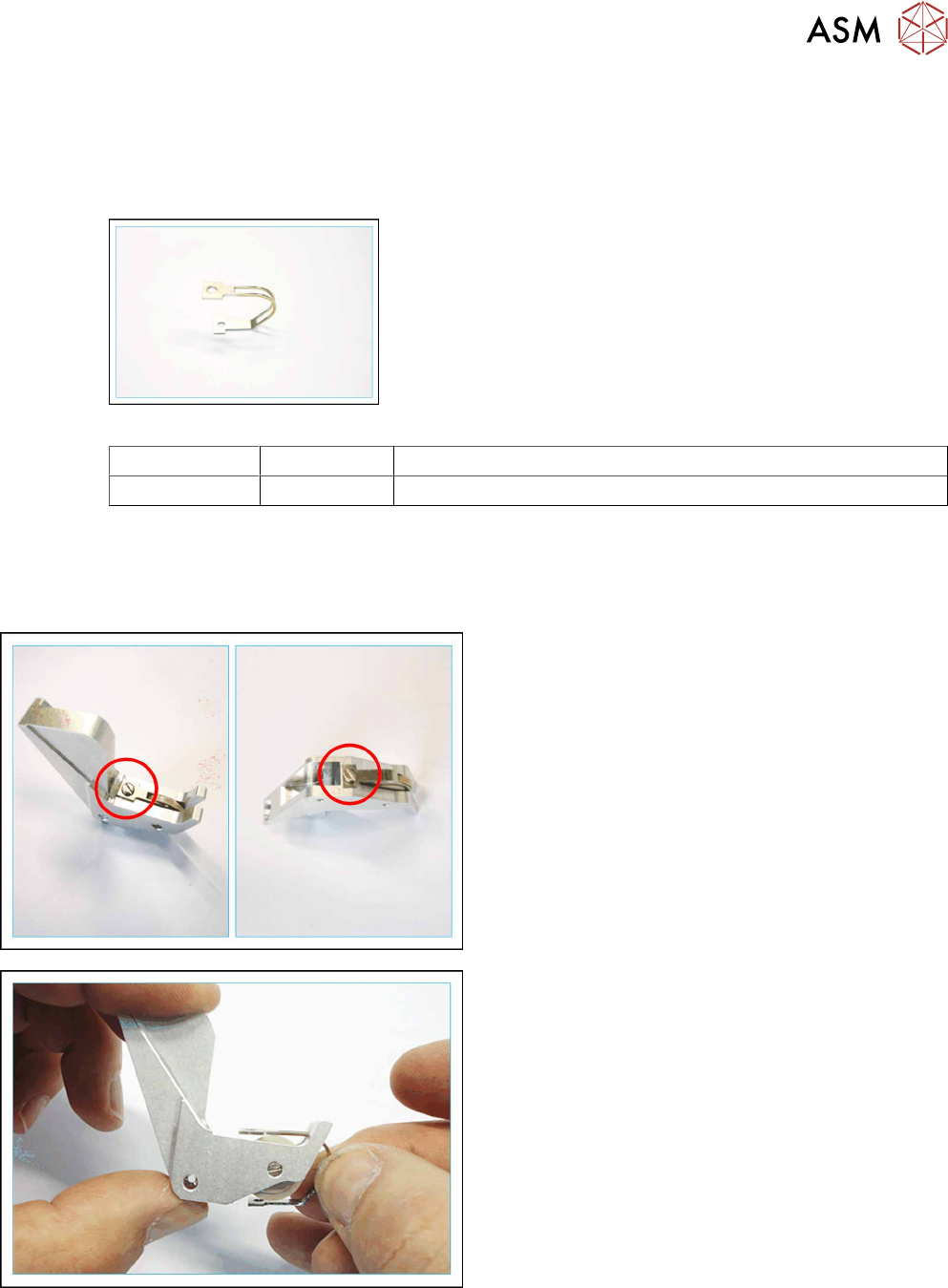

6.6 Rocker
6.6.1 Rocker Stripping Device (4mm only)
Required spare parts
Rocker Stripping Device
Feeder module Item no. Designation
4 mm 03087913-Sxx Stripping device /rocker X4
Required tools
●
Flat bladed (slotted) screwdriver
6.6.1.1 Removing the Rocker Stripping Device
► Remove the rocker (see 6.6.2.1 "Removing the
Rocker (4 - 88 mm)" [}69]).
► Loosen the screw that fixes the stripping device
at the top of the rocker.
► Loosen the screw that fixes the stripping device
at the bottom of the rocker.
► Pull the stripping device sideways from the
rocker.
