6 Repairing the X Feeder modules
6.4 Tape Drive
28 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

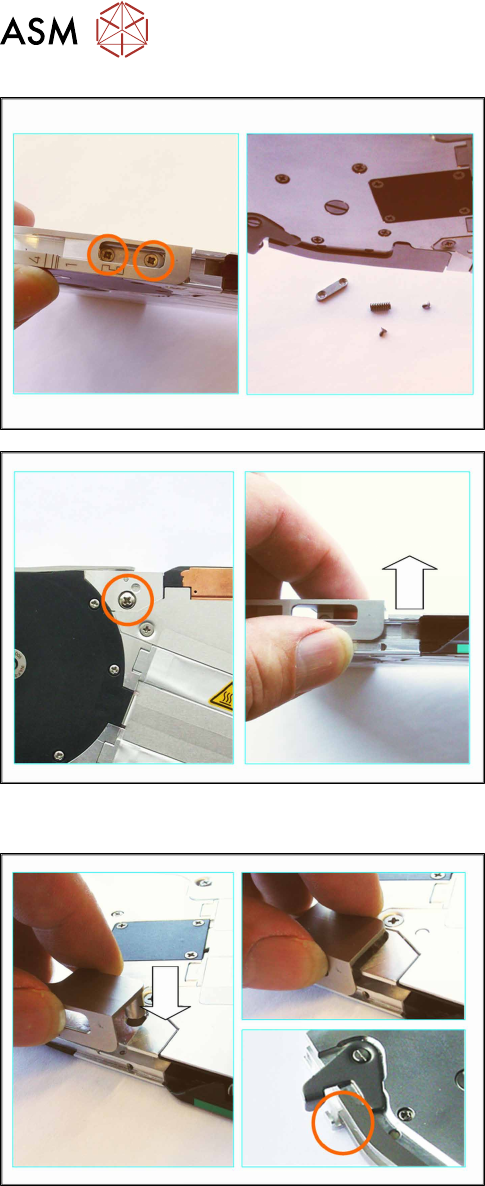

► If present, first remove the tape support (spacer).
Push this tape support to the front and out of the
pickup window.
► Loosen the two screws marked in the diagram.
► Turn the feeder module over and shake the two
screws, the tape slider spring and the spring
holder out of the pickup window.
► Loosen the bearing screw.
► Push the pickup window vertically to the feeder
module out of the tape drive.
Make sure that the pickup window is NOT distor-
ted.
6.4.1.2 Fitting the Pickup Window (4 - 12 mm)
► Carefully place the feeder module down on its left
side.
► Push the pickup window vertically into the tape
drive.
Make sure that the tip of the pickup window is in-
side the window lift.
6 Repairing the X Feeder modules
6.4 Tape Drive
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 29

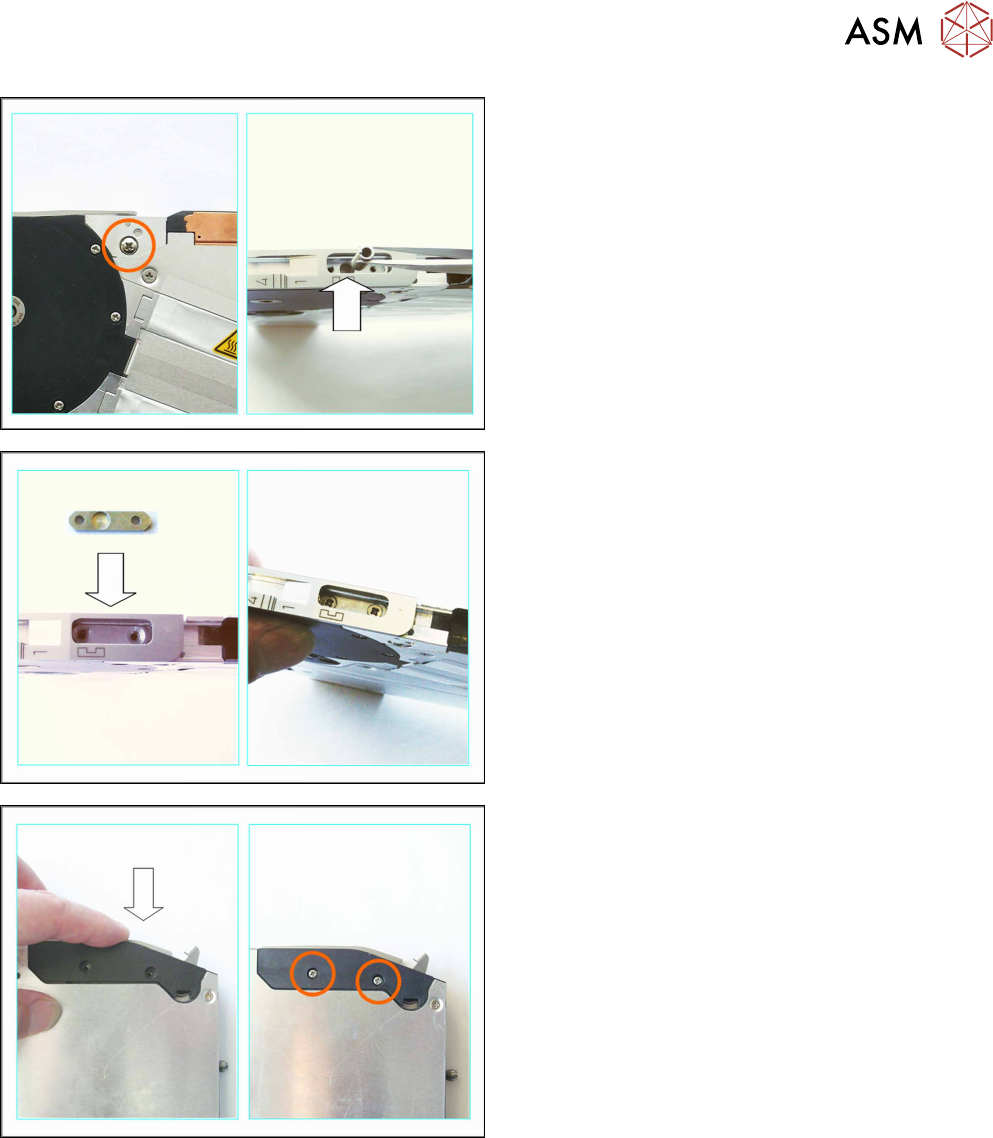

► Fix the pickup window with a bearing screw.
► Insert the compression spring into the recess in
the tape drive.
► Place the spring holder onto the compression
spring, so that it engages into the spring holder
and the two holes for the screws can be seen
through the spring holder.
► Fix the spring holder with the two countersunk
screws (M 2 x 4mm).
For 12mmX feeders only
► Insert the filler piece into the feeder module.
Make sure that the filler piece is aligned flush
against the feeder module.
► Fix the filler piece with the screws marked in the
diagram.
6 Repairing the X Feeder modules
6.4 Tape Drive
30 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

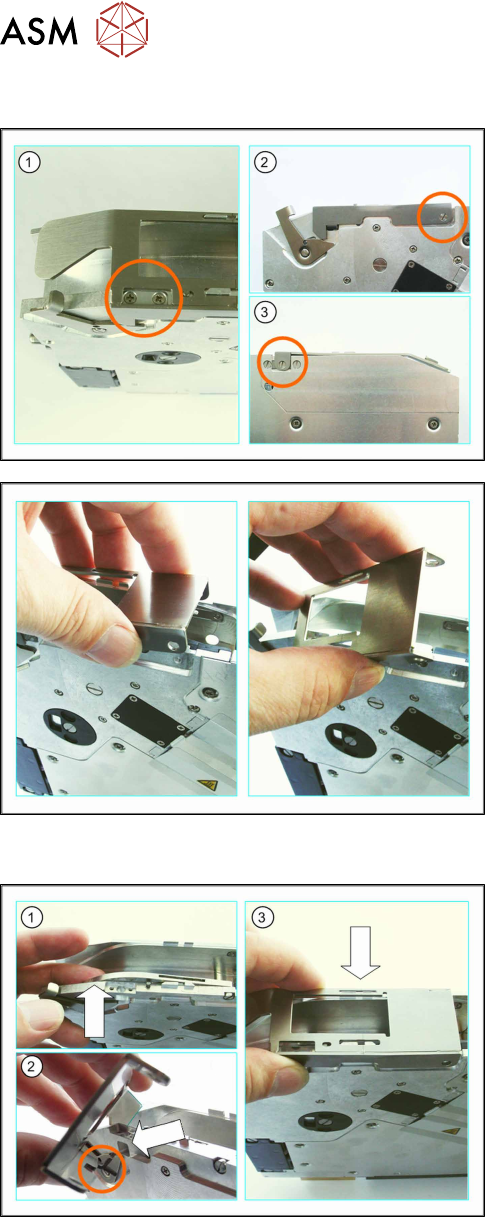

6.4.1.3 Removing the Pickup Window (16 - 88 mm)
► (1) Loosen the two marked screws which fasten
the spring holder to the pickup window.
► Remove the two screws, the tape spring and the
spring holder out of the pickup window.
► (2) Loosen the marked screw on the left-hand
side of the feeder module.
► (3) Loosen the marked screw on the right-hand
side of the feeder module.
► First lift the pickup window at the back.
► Tilt the pickup window, incline it to the left and lift
it off the feeder module.
6.4.1.4 Fitting the Pickup Window (16 - 88 mm)
► (1) Lift the reject device and hold with one finger.
► (2) Hold the pickup window inclined and hook
from the left into the opening in the feeder mod-
ule.
► (3) Swivel the pickup window so that the back
part is over the feeder module and hold the
pickup window in a horizontal position.
Make sure that the pickup window also projects
beyond the feeder module on the right outer side.
► Lower the pickup window over the snap tabs on
the feeder module.
The pickup window should be fitted loosely on
the feeder module.
