6 Repairing the X Feeder modules
6.7 Operating Panel Assembly
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 77
► Loosen the 2 screws marked in the diagram.
► (1) Carefully swing the lock on the flat ribbon
cable connection up to the left and release the
flat ribbon cable.
Make sure that the lock is not pushed too far
back. The lock could break off if you do this.
► (2) Carefully pull the connector marked in the dia-
gram out of its connection in the direction of the
arrow. Pull on the connector and NOT on the
cable.
► Press the removal handle so that this springs out.
► Lever up the operating panel.
The operating field is caught slightly on the foil con-
tainer frame.
► Carefully spread the foil container frame apart.
► Carefully jog the operating panel to move it up
and out of the foil container frame.
6 Repairing the X Feeder modules
6.7 Operating Panel Assembly
78 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

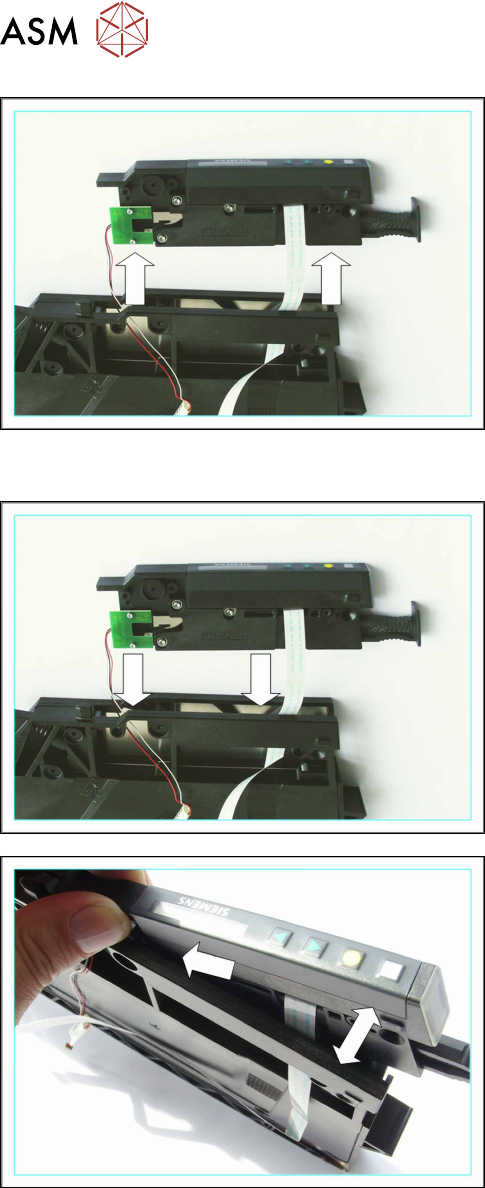

► Pull both cables out of the foil container frame.
6.7.4 Fitting the Operating Panel (12 mm)
► Thread the cable into the foil container frame as
marked in the diagram.
The control panel gets caught slightly on the foil con-
tainer frame during insertion.
► Carefully spread the foil container frame apart.
► Carefully jog the control panel into the foil con-
tainer frame.
6 Repairing the X Feeder modules
6.7 Operating Panel Assembly
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 79

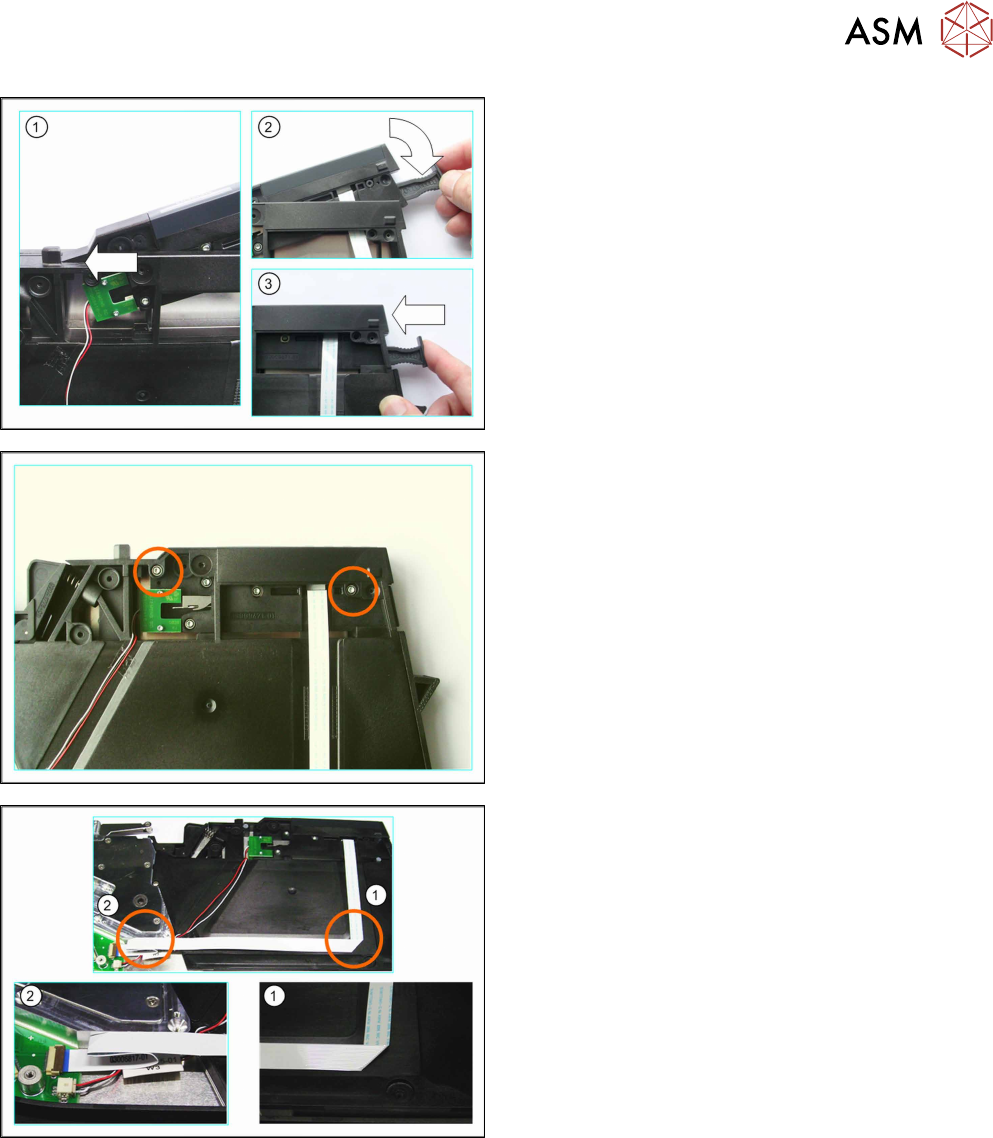

► (1) Push the front part of the control panel as far
as the stop into the slit in the foil container frame.
► (2) Pull the control panel towards the foil con-
tainer.
► (3) Press the release handle into the control
panel.
► Fix the control panel with the self-cutting Torx
screws marked in the diagram.
Run the cable as shown in the example diagram (8
mm feeder module).
► (1) Run the flat ribbon cable vertically downwards
and carefully fold it to the left.
► (2) Carefully fold the flat ribbon cable as marked
in the diagram.
Make sure that the blue surface at the end of the
cable is at the top.
► Thread the other cable under the flat ribbon
cable, to the second connection.
