6 Repairing the X Feeder modules
6.8 Leaf Spring
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 87

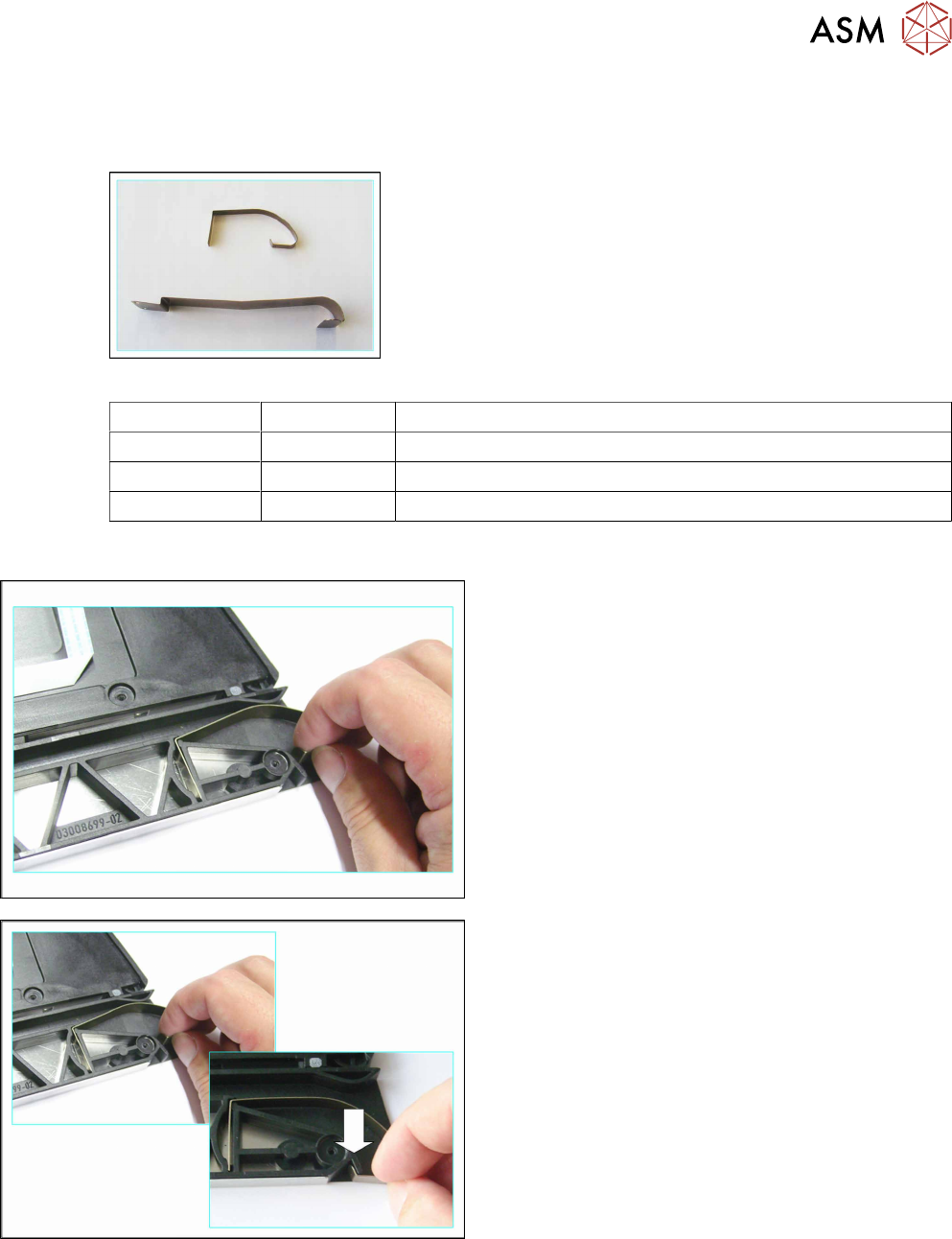

6.8 Leaf Spring
Required spare parts
Fig.5: Example: leaf spring 8mm (top) and 24mm (bottom)
Feeder module Item no. Designation
4+ 8mm 03008284-Sxx Leaf spring/foil disposal X8
12 mm 03009283-Sxx Leaf spring/foil disposal X12
16–88mm 03022105-Sxx Leaf spring/foil disposal X16 - 88
6.8.1 Removing/Fitting the Leaf Spring (4 - 12 mm)
► Remove the left side cover (see 6.3.1 "Removing
the Left Side Cover" [}23]).
► Lift the leaf spring straight up and out of the hold-
ing device.
► Insert the leaf spring vertically (from above) into
the holding device.
► Hook the end of the leaf spring in behind the
marked holder.
► Fit the left side cover into place (see 6.3.2 "Fitting
the Left Side Cover" [}24]).
6 Repairing the X Feeder modules
6.8 Leaf Spring
88 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

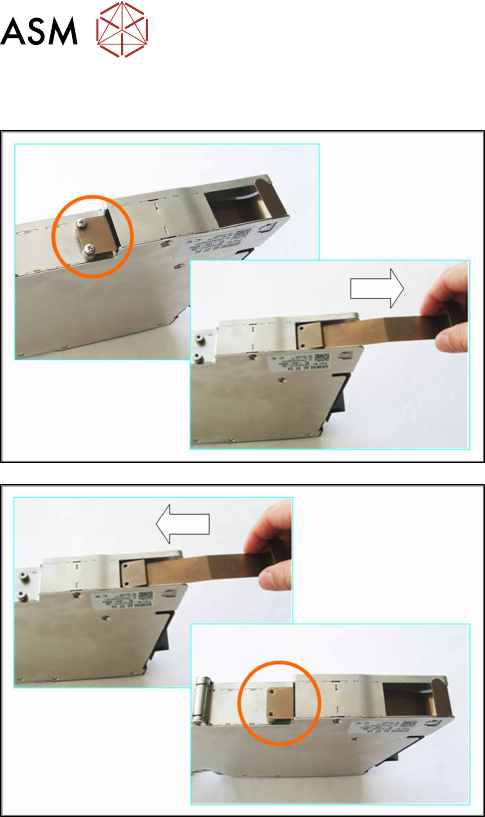

6.8.2 Removing/Fitting the Leaf Spring (16 - 88 mm)
► Turn the feeder module so that its underside is at
the top.
► Loosen the two screws marked in the diagram.
► Pull the leaf spring sideways out of the feeder
module.
► Push the leaf spring from the side into the feeder
module.
► Position the leaf spring so that you can see com-
pletely through the two drillings for the screws.
► First fasten the leaf spring with one screw.
Do not tighten the screw yet so that you can still
move the leaf spring slightly.
► Tighten the leaf spring with the second screw.
► Now tighten the first screw.
