6 Repairing the X Feeder modules 6.5 Foil Disposal Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 43 ► Insert the foil disposal drive, together with the foil container, into the feeder module. ► (1) Insert the flat ri…
6 Repairing the X Feeder modules
6.5 Foil Disposal
42 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

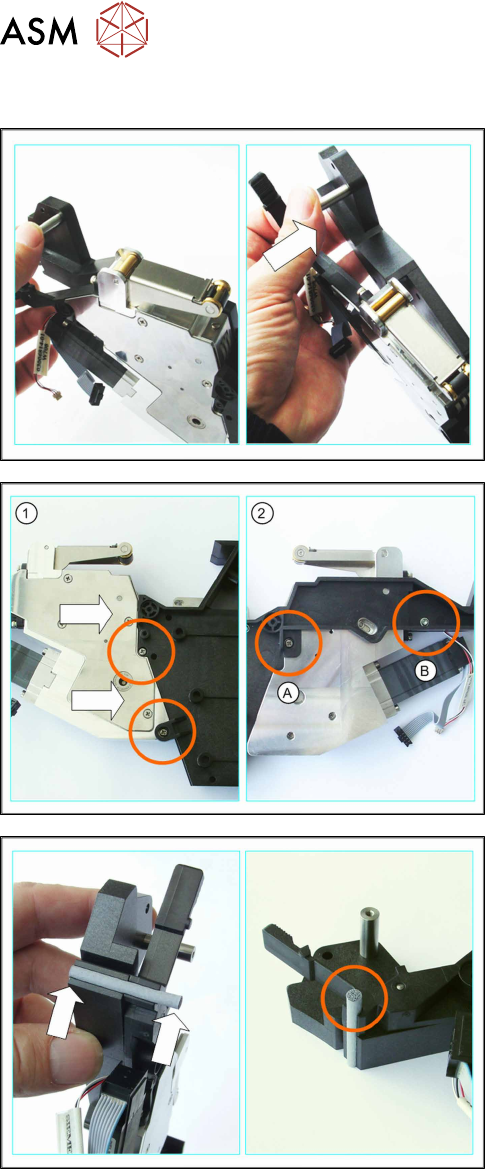

6.5.1.4 Fitting the Foil Disposal Drive (16 mm)
► While doing so, bend the frame on the left side
slightly towards the back and press the foil dis-
posal drive into the frame.
► (1) Press the foil disposal drive in the direction of
the arrow and into the foil container.
Make sure that the foil disposal drive is directly
aligned flush against the foil container.
► Insert the washer and fix the foil disposal drive
with the cylinder head screws marked in the dia-
gram.
► Turn the foil disposal drive over.
► (2) Fix the foil disposal drive into place with the
screws marked in the diagram.
(A) cylinder head screw with washer
(B) mushroom head cutting screw (Torx)
► Turn the foil disposal drive over again.
► Place the rubber seal into the fixture as marked
in the diagram.
On the left-hand side, this rubber seal should be
flush while on the right-hand side it should project
somewhat. The spacer will then be fitted to this
projected part of the rubber seal.
6 Repairing the X Feeder modules
6.5 Foil Disposal
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 43

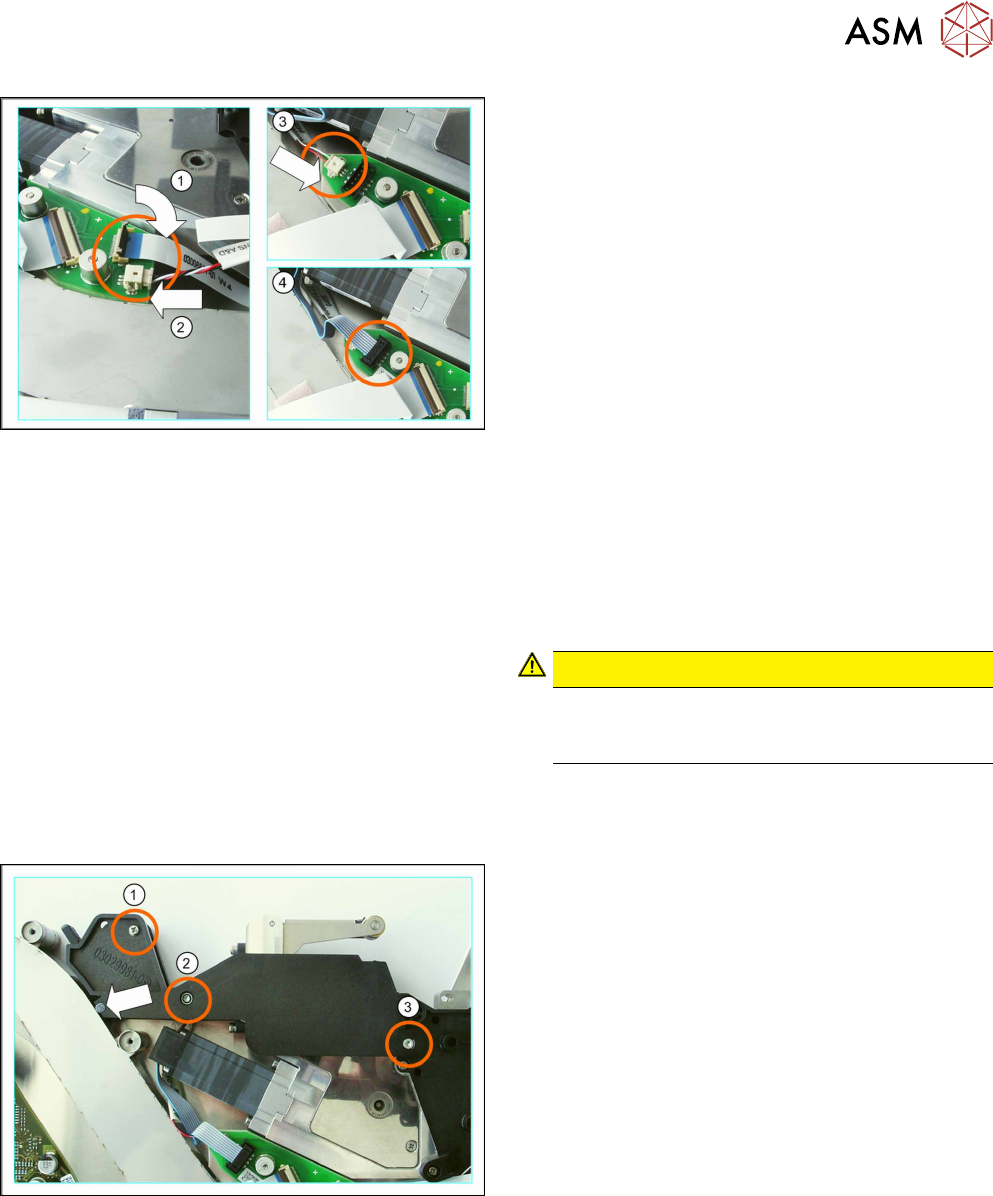

► Insert the foil disposal drive, together with the foil
container, into the feeder module.
► (1) Insert the flat ribbon cable into the connection,
as far as the stop.
Make sure that the blue surface at the end of the
cable is at the top and that the flat ribbon cable
lies straight in the connection.
► Swing the lock on the connection down onto the
flat ribbon cable.
Make sure that the flat ribbon cable is fitted firmly
in the connection. Tug gently on the cable to
check.
► Check again whether the flat ribbon cable is fitted
straight in the connection.
If necessary, open the lock and correct the posi-
tion of the cable before closing the lock again.
► (2) and (3)
Carefully insert the connector in the direction of
the arrow, as far as the stop, into the connection
shown.
Make sure that the smooth side of the connector
is at the top.
CAUTION!
Do not push the connector with force into the
connection, otherwise individual pins may
break off or be distorted.
.
► (4) Insert the other connector into the connection
marked in the diagram.
► Push the spacer from the right, around the rubber
seal.
► Fix the spacer with the screws marked in the dia-
gram.
(1) cylinder head Phillips screw with washer(2)
mushroom head cutting screw (Torx long)
(3) countersunk cutting screw (Torx short)
► Fit the left side cover into place (see 6.3.2 "Fitting
the Left Side Cover" [}24]).
6 Repairing the X Feeder modules
6.5 Foil Disposal
44 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

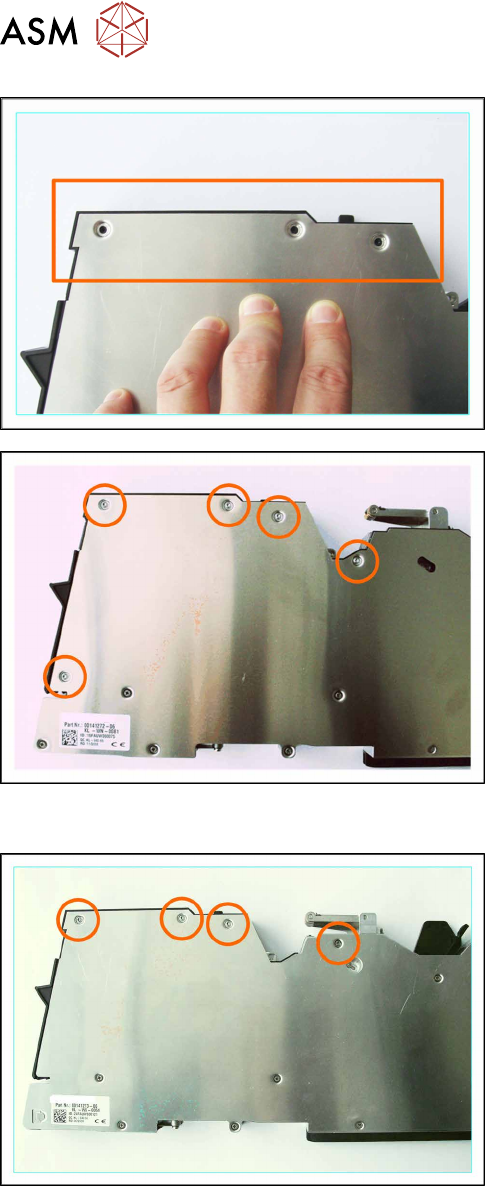

► Carefully place the feeder module down on its left
side.
► Position the foil container so that it is aligned
against the side cover.
► Fix the mushroom head cutting screws marked in
the diagram (2.5 x 7.5mm) Torx.
► Fit the rocker (see 6.6.2.2 "Fitting the Rocker (4 -
88 mm)" [}70]).
6.5.1.5 Removing the Foil Disposal Drive (24 - 88 mm)
► First remove the rocker (see 6.6.2.1 "Removing
the Rocker (4 - 88 mm)" [}69]).
► Carefully place the feeder module down on its left
side.
► Remove the screws marked in the diagram.
