User manual E by SIPLACE 3 Technical data and assemblies From software version SC 712.1 Edition 05/2019 3.3 Dimensions an d weight 109 3 Fig. 3.3 - 3 Dimensions of E by SIPLACE double sided machine wit h fixed table/fixe…
3 Technical data and assemblies User manual E by SIPLACE
3.3 Dimensions and weight From software version SC 712.1 Edition 05/2019
108
3

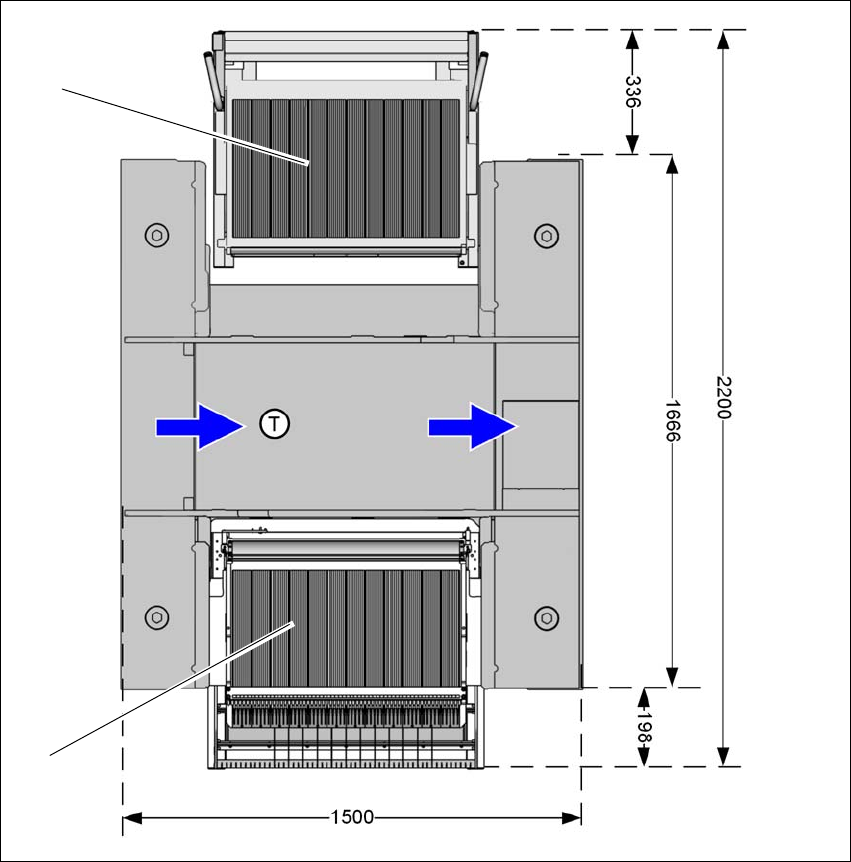

Fig. 3.3 - 2 Dimensions of E by SIPLACE double sided machine with fixed table/changeover table
(1) Location 1 with fixed table
(2) Location 2 with changeover table
1
(2)
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.3 Dimensions and weight
109
3
Fig. 3.3 - 3 Dimensions of E by SIPLACE double sided machine with fixed table/fixed table
(1) Location 1 with fixed table
(2) Location 2 with fixed table
1
(2)
3 Technical data and assemblies User manual E by SIPLACE
3.3 Dimensions and weight From software version SC 712.1 Edition 05/2019
110
3.3.2.2 Dimensions of E by SIPLACE single sided machine
3
Fig. 3.3 - 4 Dimensions of E by SIPLACE single sided machine with changeover table
