3.9.4.2 Usage
The SIPLACE PowerAdaptor E is used to check, maintain and repair SIPLACE SmartFeeder E.
It can also be used for setting up in advance for PCB production. The tape reel holder is also
mounted on the base plate. When a component tape is inserted, you can check or reset the incre-
ment, pick-up position and conveyor speed. The detailed user manual describes how to use the
SIPLACE PowerAdaptor E and the necessary servicing work.
3.9.4.3 Scope of delivery
– SIPLACE PowerAdaptor E
– Power supply, 100 - 120 / 200 - 240 VAC, +24VDC, 3.0 A
– Base plate with tape reel arm
3 Technical data and assemblies User manual E by SIPLACE
3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019
158
3.10 Changeover table for E by SIPLACE
Item no. 03104678-xx Changeover table for E by SIPLACE with 60 tracks
The changeover tables are stand-alone modules that can be set up with
SIPLACE SmartFeeder E.
3
Fig. 3.10 - 1 Changeover table locations, E by SIPLACE (Example - double sided machine)
(1) Location 1
(2) Location 2
(T) Direction of PCB transport
3
CAUTION
The E by SIPLACE changeover tables may only be docked onto locations at which the
changeover table COT insert for the E by SIPLACE has been installed
(fig. 5.16 - 3, page 253 ).
(1)
(2)
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.10 Changeover table for E by SIPLACE
159
3

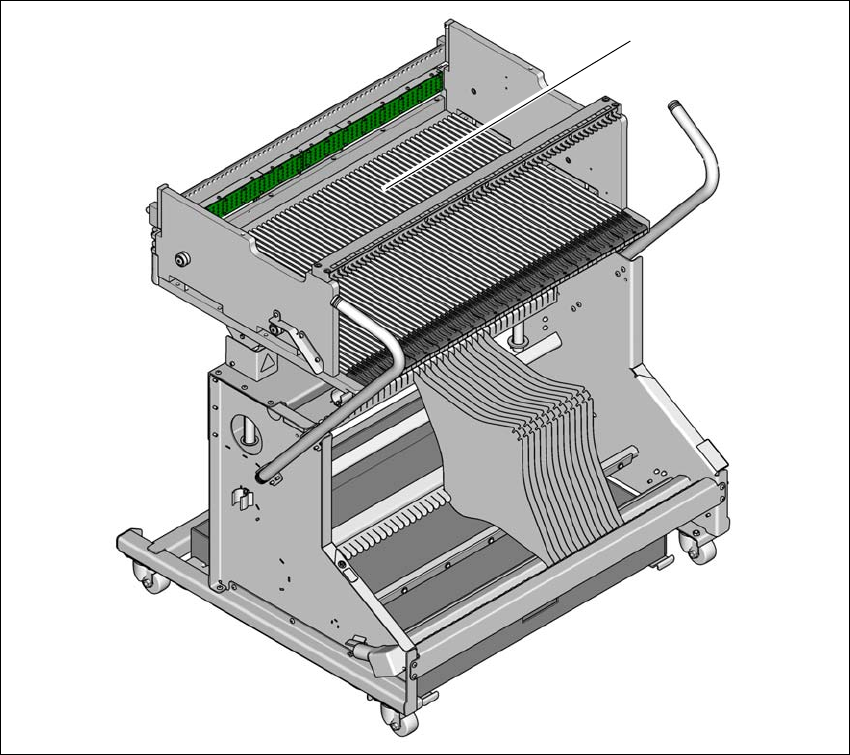

Fig. 3.10 - 2 Changeover table, E by SIPLACE
(1) Changeover table with 60 tracks
(1)
