3 Technical data and assemblies User manual E by SIPLACE
3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019
160
3.10.1 Structure
The changeover table essentially consists of the chassis, the changeover table for holding the
feeder modules, the tape reel container and the waste tape container.
3

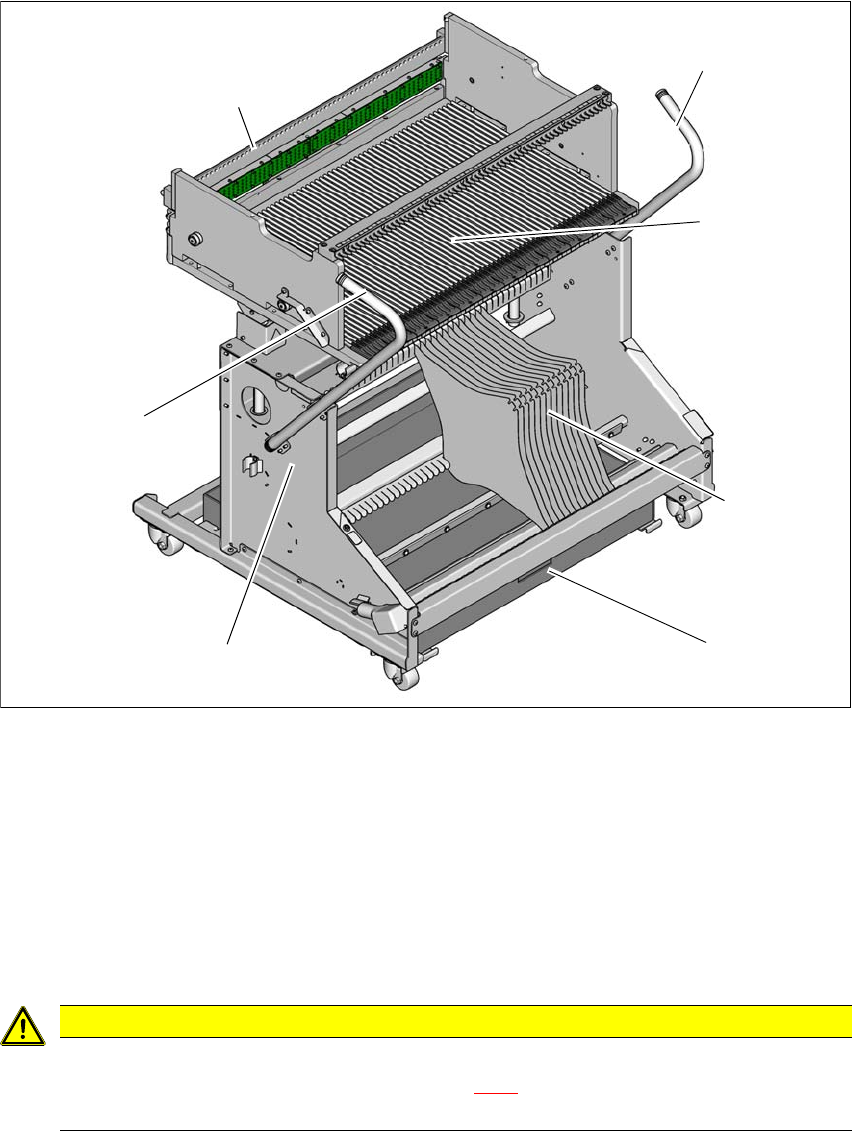

Fig. 3.10 - 3 Changeover table, E by SIPLACE with 60 tracks - overview
(1) Chassis
(2) Changeover table
(3) Tape container
(4) Waste tape container
(5) Handle
(6) Centering bar
3
CAUTION
Observe the safety instructions!
Observe the safety instructions in section 5.9.2, page 228 when you pull the tape re-
ject bin out of the changeover table.
(1)
(2)
(5)
(4)
(3)
(6)
(5)
User manual E by SIPLACE 3 Technical data and assemblies
From software version SC 712.1 Edition 05/2019 3.10 Changeover table for E by SIPLACE
161
3
3.10.2 Description
The tape reel container holds tape reels up to a size of 19" (483 mm).
There are two 5 mm wide gaps on the left and right, between the tape container and the change-
over table, for holding setup lists.
The pullout waste tape container can be found beneath the chassis. The cut waste tape travel
down a chute into the waste tape container, which must be emptied as it fills up.
3
3.10.3 Technical Data
3
CAUTION
Risk of breaking handles!
Risk of breaking handles when transporting the changeover table.
When transporting the changeover table, do not lift it by its handles.
Only use the handles to push the changeover table.
Use a fork-lift if you want to transport the changeover table or lift it off the pallet.
PLEASE NOTE
All changeover tables must be docked onto the machine in order to operate it.
Fill any free locations with dummy feeder modules as described in
section 2.7.5.1
, page 88.
Changeover table dimensions
Changeover table with 60 tracks (length x width) 735 mm x 820 mm
Height (PCB transport height)
Standard
Option
900 mm to 930 mm
950 mm
Weight of changeover table with 60 tracks
Without feeder modules
With feeder modules (fully configured)
88 kg
138 kg
Tape reel diameter up to 483 mm (19“)
Feeder locations
Changeover table with 60 tracks 60 feeders with SIPLACE
SmartFeeder 8 mm E
Changeover table changeover time < 1 minute
3 Technical data and assemblies User manual E by SIPLACE
3.10 Changeover table for E by SIPLACE From software version SC 712.1 Edition 05/2019
162
3.10.4 Fiducial on the changeover table
3
Fig. 3.10 - 4 Fiducials on the changeover table
(1) Fiducial on the changeover table
Once the SIPLACE changeover table has been docked in, the machine measures the fiducial on
the changeover table.
For components with an edge length of less than 0.5 mm, i.e. 0402 components and smaller, the
position of the component is determined with the tape pocket before the first component is picked
up.
(1)
