6.3.5.5 Warning labels on the SIPLACE JTF-MW
6

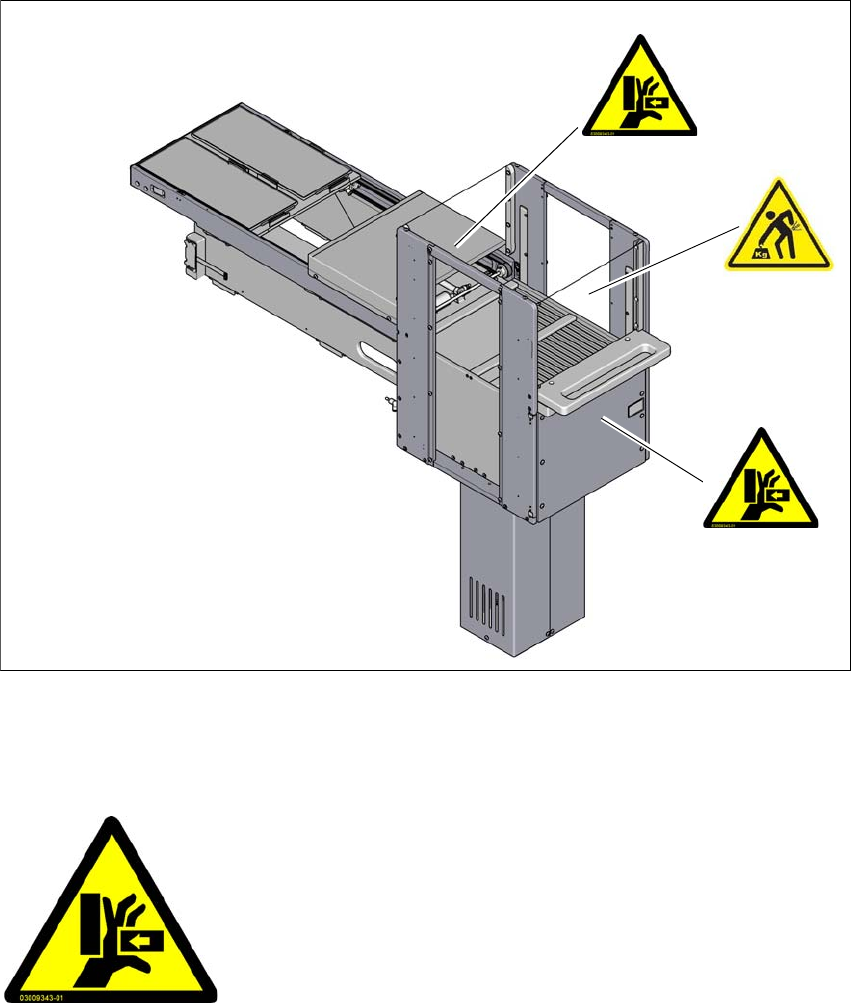

Fig. 6.3 - 4 Warning labels on SIPLACE JTF-MW
– W204, item no. 03009343-01
Warning label W204
6
Quantity per SIPLACE JTF-MW: 2
W 204
W 204
Heavy weight
6
6
6
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the SIPLACE JTF-MW while it is running
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.3 SIPLACE JTF-MW
295
Warning label heavy weight
Quantity per SIPLACE JTF-MW: 1
6
6
6
Heavy weight!
The heavy weight of the SIPLACE JTF-MW (
~ 60 Kg) could cause
injuries if the module is not handled correctly.
Do not lift or carry the module alone.
Use lifting aids and proper lifting techniques when removing
or replacing.
You might need to enlist the help of a second person.
6 Station extensions User manual E by SIPLACE
6.4 Manual Tray holder E From software version SC 712.1 Edition 05/2019
296
6.4 Manual Tray holder E
Item no. 03113327Sxx Manual Tray holder E Speed only
Item no. 03113012Sxx Manual Tray holder E Flex only
Item no. 03126454Sxx Manual Tray holder E Flex Accessory Kit only
6
Fig. 6.4 - 1 Manual Tray holder E
(1) Manual Tray holder E Speed
(2) Manual Tray holder E Flex
Manual tray holder is used at Location 2 of an E by SIPLACE, to provide tray support for 2x stan-
dard JEDEC trays at one time. Components can be made available quickly on JEDEC trays with
the help of the manual tray holder.
