User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
51

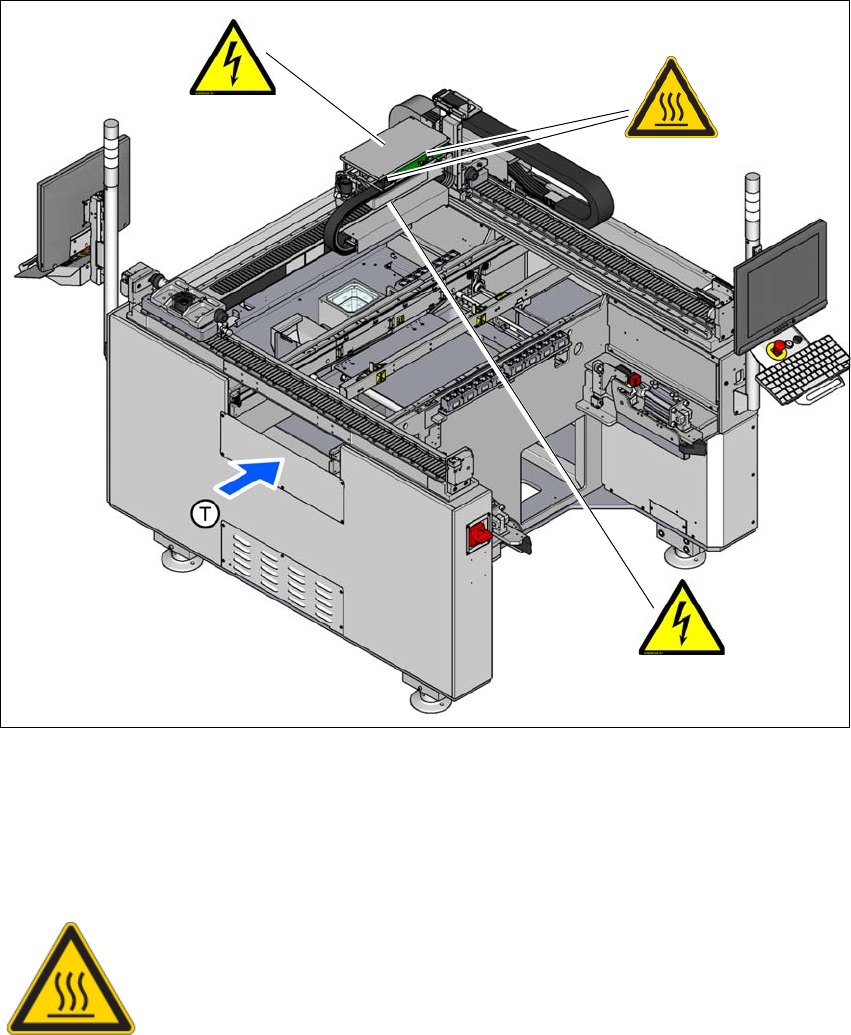

Fig. 2.2 - 6 Warning labels in the machine - part 2
– W206, on the cover of the MHCU
– W206, on the cover of the trailing IF/VBI
– W-Hot surface, on the MHCU (under the cover)
Hot surface label in fig. 2.2 - 6, page 51, item no. 03031926-01 (2 labels on the MHCU)
W206
W206
(W-Hot surface
2
RISK OF BURNS FROM HOT SURFACE!
The housing of the Head Control Unit (MHCU) can become hot during con-
tinuous operation.
Take care when touching the Head Control Unit (MHCU).
2 Operational safety User manual E by SIPLACE
2.2 Warning labels From software version SC 712.1 Edition 05/2019
52
2
W206 in fig. 2.2 - 5, page 50 and fig. 2.2 - 6, page 51, item no. 03009345-01.
Fig. 2.2 - 7 Warning label W202 inside the protective covers
2
– W202, item no. 03009341-01
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W 202
W 202
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.2 Warning labels
53
2.2.2.1 Warning label 202
2
W202, in fig. 2.2 - 7, page 52, item no. 03009341-01
(quantity per machine: 2)
W202, in fig. 2.2 - 5, page 50, item no. 03012700-01
(quantity per machine: 2)
2.2.2.2 Warning label W-Magnetic field
2
W-Magnetic field, in fig. 2.2 - 5, page 50, (quantity per machine: 24)
POWERFUL MAGNETIC FIELDS INSIDE THE
MACHINE
See Section 2.2.2.3 on page 54.
POWERFUL MAGNETIC FIELDS INSIDE THE MACHINE
See Section 2.2.2.3 on page 54.
POWERFUL MAGNETIC FIELDS INSIDE THE MACHINE
See Section 2.2.2.3 on page 54.
