5 Working with the machine User manual E by SIPLACE 5.8 Indicator lamps with buzzer From software version SC 712.1 Edition 05/2019 222 5.8 Indicator lamps with buzzer 5.8.1 Overview These indicator lamps are used to sign…
User manual E by SIPLACE 5 Working with the machine
From software version SC 712.1 Edition 05/2019 5.7 Messages and online help
221
5.7.4 Context-sensitive online help
To see information about the current view, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor-
mation refers to the view currently shown and from which the help function was started. Use the
list of contents, index and the search function to view the contents of the Online Help.
5 Working with the machine User manual E by SIPLACE
5.8 Indicator lamps with buzzer From software version SC 712.1 Edition 05/2019
222
5.8 Indicator lamps with buzzer
5.8.1 Overview
These indicator lamps are used to signal operating statuses and malfunctions of the machine. The
buzzer indicates when an alert has occurred. SIPLACE machines can either be fitted with a two
or three color indicator lamp. The relevant indicator lamp system (two or three color) is set in the
auto configuration, see installation guide for station software, Item No. 00196771-xx.
5.8.1.1 Triple color signal lamp (Standard)
Fig. 5.8 - 1 Indicator lamps for operating states
(1) Buzzer
(2) L1 - Red indicator lamp
(3) L2 - Yellow indicator lamp
(4) L3 - Green indicator lamp
(2)
(1)
(3)
(4)
User manual E by SIPLACE 5 Working with the machine
From software version SC 712.1 Edition 05/2019 5.8 Indicator lamps with buzzer
223

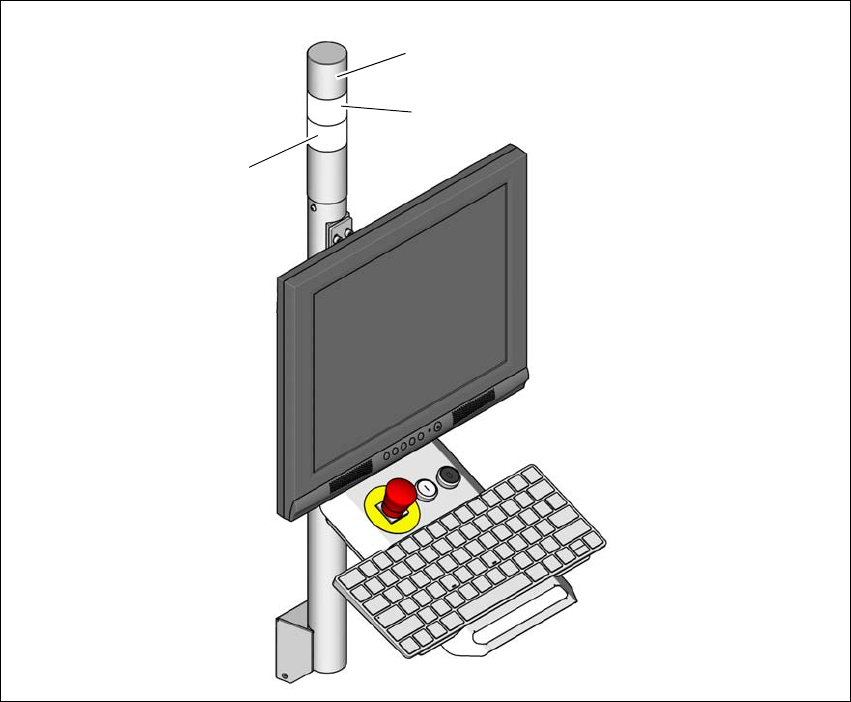

5.8.1.2 Two color indicator lamp (optional)
Item no. 03110193-xx Indicator lamp, 2 lights
Fig. 5.8 - 2 Indicator lamps for operating states
(1) Buzzer
(2) L1 - Green indicator lamp
(3) L2 - White indicator lamp
(1)
(2)
(3)
