User manual E by SIPLACE 2 Operational safety From software version SC 712.1 Edition 05/2019 2.5 Safety instru ctions for operating the machine 75 2.5.5 ESD safety of machine 2 2.5.6 Safety instruct ions for c orrect fit…
2 Operational safety User manual E by SIPLACE
2.5 Safety instructions for operating the machine From software version SC 712.1 Edition 05/2019
74
2.5.4 Safety instructions for SIPLACE TH/SIPLACE PP
2
2
Fig. 2.5 - 2 Risk of crushing by return unit on SIPLACE TH/SIPLACE PP
(1) Return unit, compressed air cylinder
(2) Piston rod
(3) Bumper of the return unit
(4) Risk of crushing finders here
CAUTION
Risk of crushing on SIPLACE TH/SIPLACE PP!
The strong spring tension of the cylinder moves the buffer back very quickly and could
injure your fingers. The same warning applies to the inside of the SIPLACE TH or SI-
PLACE PP, when the piston rod moves back to its original position.
NEVER move the Z axis down with your hand at the buffer of the return unit.
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.5 Safety instructions for operating the machine
75
2.5.5 ESD safety of machine
2
2.5.6 Safety instructions for correct fitting of the reject bin
Observe the following instructions to avoid risk of collision between the placement head and com-
ponent or the nozzle reject bin:
Make sure, that the reject bin is seated correctly in its mount.
Check that the reject bin does not project over the mount.
2.5.7 Safety instructions for using the nozzle changer
Observe the following instructions to avoid risk of collision between the placement head and the
nozzle changer.
2
2
PLEASE NOTE
Requirements for ESD safety of machines
Only use nozzles that are identified as conductive.
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
WARNING
Risk of head crashes with protruding lever!
A lever which projects above the magazine could lead to a placement head crash.
You should therefore make sure that the lever does not protrude over the magazines.
2 Operational safety User manual E by SIPLACE
2.5 Safety instructions for operating the machine From software version SC 712.1 Edition 05/2019
76
2.5.8 High temperatures on SIPLACE CP14 placement head
2

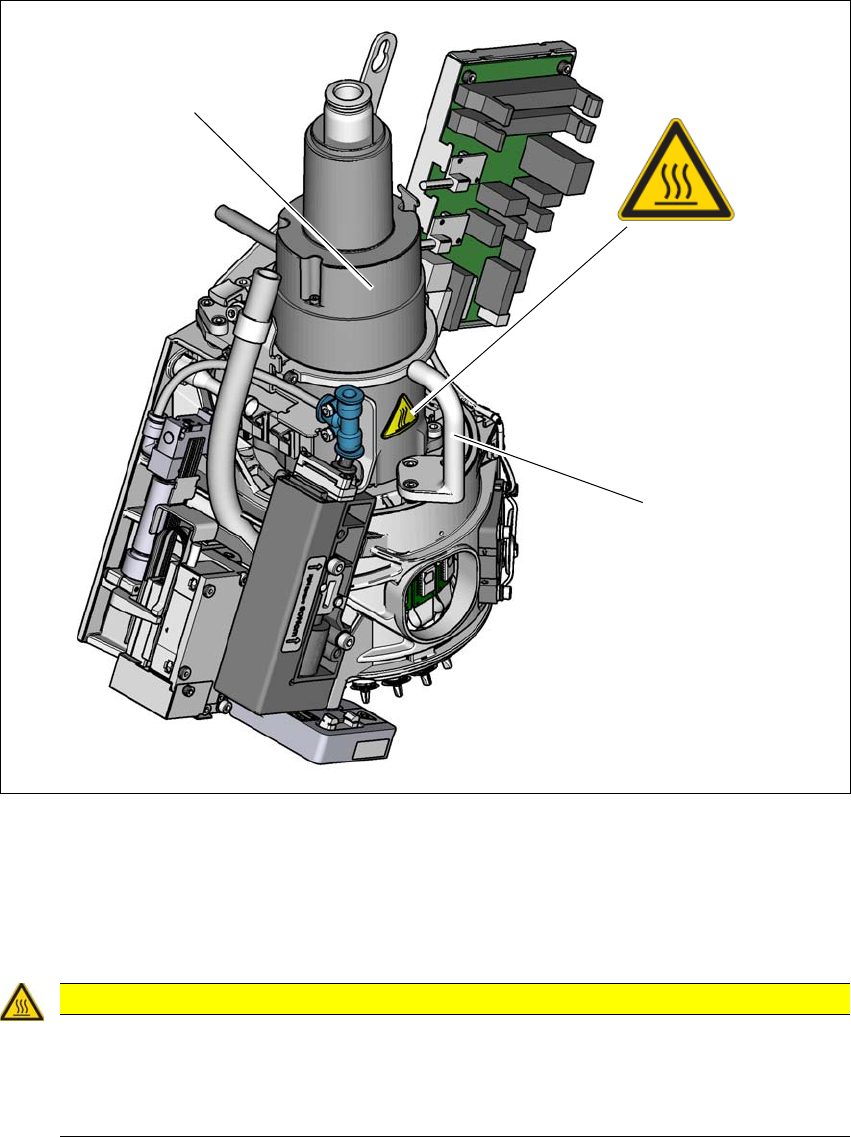

Fig. 2.5 - 3 High temperatures on SIPLACE CP14 during continuous operation
(1) Temperature label, item no. 03031926-01
(2) Housing for the star motor
(3) Handle
2
CAUTION
Risk of burns due to high temperatures!
The housing of the star motor and the handle on the placement head may become very
hot during continuous operation and in ambient temperature in excess of 22 °C.
Be careful when touching the parts.
(1)
(2)
(3)
