6.1.4 Nozzle changer for the SIPLACE CP6
Item no. 03113131-xx Nozzle changer E by SIPLACE, CP6, location 1
Item no. 03113126--xx Nozzle changer E by SIPLACE, CP6, location 2
Item no. 03105864-xx Magazine for 1 x 12 nozzles for nozzle type 39xx
Item no. 03106048-xx Magazine for 1 x 6 nozzles for nozzle type 38xx
6

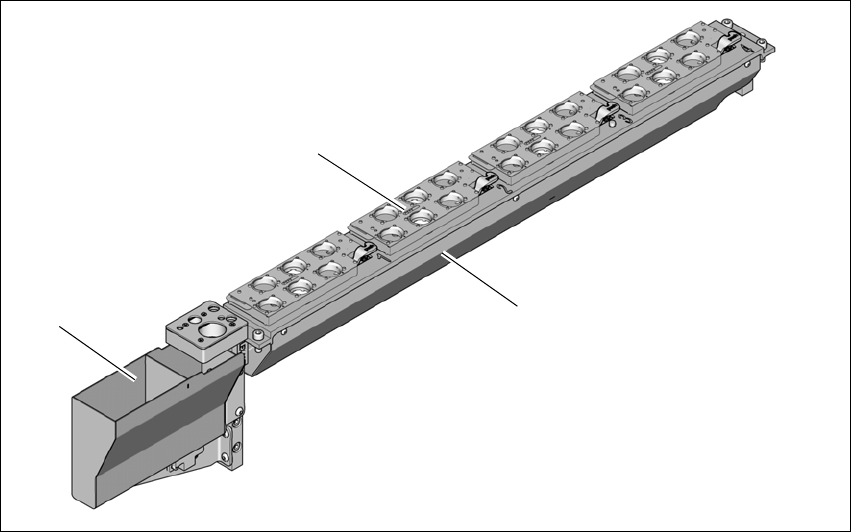

Fig. 6.1 - 15 Nozzle changer for the SIPLACE CP6
(1) Nozzle changer magazin (38xx)
(2) Nozzle changer
(3) Component reject bin
(2)
(3)
(1)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.1 Nozzle changer
279
6.1.4.1 Description
This nozzle changer can accommodate 4 magazines, each with 6 nozzle garages.
The magazines are seated on a common support. They are centered with two parallel pins and
fixed in place with 4 push buttons. The exact position is determined with two fiducials on each
magazine. The correct seat of the magazines on the basic nozzle changer body is monitored by
microswitches, to prevent a collision of the placement head with any magazines projecting up-
wards. All magazine locations must be filled since the safety circuit stops the machine in response
to missing magazines or magazines that are not seated correctly.
At the installed nozzle station, components can be blown off the nozzles of the SIPLACE CP6 and
nozzles stripped off and rejected.
6
6
Fig. 6.1 - 16 Nozzle changer magazin for the SIPLACE SIPLACE CP6
(1) 6 garages for 38xx nozzles
(2) Fiducials (only visible when locking plate open)
CAUTION
Only use the magazine for the SIPLACE SIPLACE CP6 together with the SIPLACE
CP6.
(1)
(2)
(2)
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
280
6
Fig. 6.1 - 17 Nozzle magazin for the SIPLACE CP6
(1) 12 garages for 39xx nozzles
(2) Fiducials (only visible when locking plate open)
(1)
(2)
(2)
