5 Working with the machine User manual E by SIPLACE 5.11 Setting up the feeder modules From software version SC 712.1 Edition 05/2019 238  Carefully push the feeder module fur ther until the "front" cent ering…

User manual E by SIPLACE 5 Working with the machine

From software version SC 712.1 Edition 05/2019 5.11 Setting up the feeder modules

237

5.11.3.2 Inserting the SIPLACE SmartFeeder E into the changeover table

Fig. 5.11 - 3 Inserting the SIPLACE SmartFeeder E into the changeover table

(1) Front slider guide for the feeder module

(2) Back slider guide for the feeder module

(3) Latch on the feeder module

(4) "Front" centering pin on the feeder module

(5) Recesses in the feeder locking bar for latch locking mechanism

(6) Centering bar

(7) Guide profile for the changeover table

(8) Insertion aid for the feeder module

(9) Stop Bar

 Place the front slider guide (item 1) of the feeder module on the insertion aid (item 8).

 Hold the feeder module vertically and push it forward, along the guide profile (item 7). The

front (item 1) and rear (item 2) slider guides of the feeder module slide on the guide profile

(item 7).

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

5 Working with the machine User manual E by SIPLACE

5.11 Setting up the feeder modules From software version SC 712.1 Edition 05/2019

238

 Carefully push the feeder module further until the "front" centering pin (item 4) is pushed

against the stop bar (item 9).

 Check the latch (item 3) of the feeder module as you do so. This must slide easily into the

recess (item 5) in the feeder locking bar, otherwise the feeder module is not seated vertically

on the changeover table or it was not placed on the guide profile (item 7) correctly.

 When the feeder module is at the stop position, the locking latch latches onto the locking bar

(item 6) of the feeder table.

5.11.4 Placing the component tape on the SIPLACE SmartFeeder E

5.11.4.1 Checking the feeder module

 When you place the component tape in the feeder module, first check whether there are any

components in the vicinity of the pickup window.

 Remove any components that you find since they could cause a fault.

5.11.4.2 Preparing the component tape for insertion

 Check that there is a straight cut edge at the start of the component tape.

 If the transport holes are torn or bent, cut off this part of the tape.

 Also make sure that there are no streaks of adhesive on the cover foil.

 Pull around 30 cm cover foil away from the component tape if this does not expose any com-

ponents.

 Shorten the component tape with the now exposed component pockets by around 3 cm.

 Remove the components from the open tape pockets.

 Wrap the cover foil around the front edge of the tape along the bottom of the tape.

User manual E by SIPLACE 5 Working with the machine

From software version SC 712.1 Edition 05/2019 5.11 Setting up the feeder modules

239

5.11.4.3 Inserting the tape into the SIPLACE SmartFeeder E

Step1 5

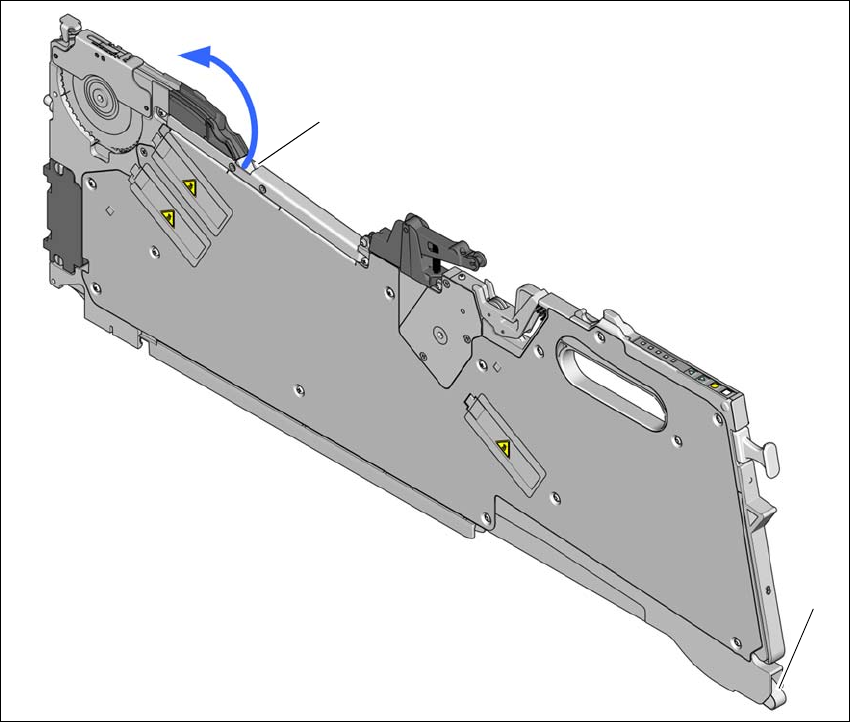

Fig. 5.11 - 4 Inserting the component tape

(1) Entry to the tape guide channel

(2) Tape guide channel outlet

 Hold the component tape so that the transport holes are on the left-hand side viewed in the

direction of travel.

 Push the component tape into the entry (item 1) to the tape guide channel and further until it

emerges from the exit opening (item 2).

 Pull the component tape up and out.

(1)

(2)
