← → ° ← → PROGRAM/TEST ONLY USE ARROW KEYS TO ALIGN DEVI CE WITH PROG. MODULE. PRESS [D] TO L OWER BEAM. PRESS START TO CONTINUE. FRONT PANEL ARROW KEYS 1857-1 Operation 4. Press and to center the chuck over the device (…
PROGRAM/TEST ONLY
USE ARROW KEYS TO ALIGN BEAM WITH
DEVICE CENTER. PRESS [D] TO LOWER BEAM.
PRESS START TO CONTINUE.
Operation
Aligning
a
Device
to
a
PLCC
Programming
Module
Whenever
you
run
a
new
TaskLink
Task
or
Kit
using
a
PLCC
device,
the
display
on
the
2500
prompts
you
to
align
the
beam.
Follow
the
procedure
below
to
adjust
the
position
of
the
beam
so
that
it
picks
the
device
at
its
center
and
inserts
the
device
into
the
programming
module
correctly.
Failure
to
perform
the
alignment
and
cleaning
procedures
may
cause
premature
wear
of
the
module's
contacts
and
an
eventual
decrease
in
programming
yield.
Note:
This
alignment
procedure
assumes
that
the
devices
are
square
PLCCsf
with
pin
1
oriented
toward
the
back
of
the
input
track
(away
from
the
front
of
the
2500).
Alignment
of
rectangular,
32-pin
PLCC
devices
is
described
on
page
4-32.
Align
Beam
to
the
Device
Follow
these
steps
to
align
the
beam
to
a
device
in
the
input
track.
1.
Insert
a
tube
of
devices
into
the
input
track
and
close
the
hood.
2.
Start
the
new
Task.
3.
The
beam
positions
itself
over
the
first
device
and
pauses.
The
2500
displays:
ProMaster
2500
User
Manual
4-27
← →
°
← →
PROGRAM/TEST ONLY
USE ARROW KEYS TO ALIGN DEVICE WITH
PROG. MODULE. PRESS [D] TO LOWER BEAM.
PRESS START TO CONTINUE.
FRONT PANEL ARROW KEYS
1857-1
Operation
4.
Press
and
to
center
the
chuck
over
the
device
(left-to-right).
Pressing
the
arrow
key
once
moves
the
beam
one
small
step
in
that
direction.
Figure
4-22
Aligning
Beam
to
the
Device
Align
Device
to
Module
Note:
You
can
change
beam
alignment
while
a
Task
is
running.
When
the
beam
hesitates
above
the
device,
press
STOP
and
use
the
front
panel
arrow
keys.
5.
Press
and
hold
D
on
the
2500's
keyboard
to
lower
the
beam
and
check
the
position
of
the
chuck
on
the
device.
For
a
slower
insertion,
lower
the
beam
manually
by
pushing
directly
on
the
top
of
the
beam
assembly,
on
either
side
of
the
beam's
limit
bar
(the
limit
bar
is
shown
in
Figure
1-7).
Adjust
the
left-to-right
position
as
necessary.
When
the
beam
is
centered,
press
START.
6.
The
beam
picks
up
the
device,
rotates
it
90
,
moves
it
over
the
programming
module,
and
pauses
before
inserting
the
device
in
the
block.
The
2500
displays:
7.
Press
and
to
center
the
device
over
the
programming
module
(left-to-right
when
you
stand
in
front
of
the
2500).
4-28
ProMaster
2500
User
Manual
PIN 1
1858-1
FRONT PANEL
ARROW KEYS
X2
X4
3
X
Operation
8.
Press
and
hold
D
on
the
2500's
keyboard
to
lower
the
device
into
the
programming
block
so
you
can
check
the
alignment.
You
may
also
lower
the
beam
with
your
hand
by
pushing
on
either
side
of
the
beam's
limit
bar
(see
Figure
1-7).
Pushing
on
the
beam
head
or
any
other
part
of
the
beam
might
distort
the
alignment.

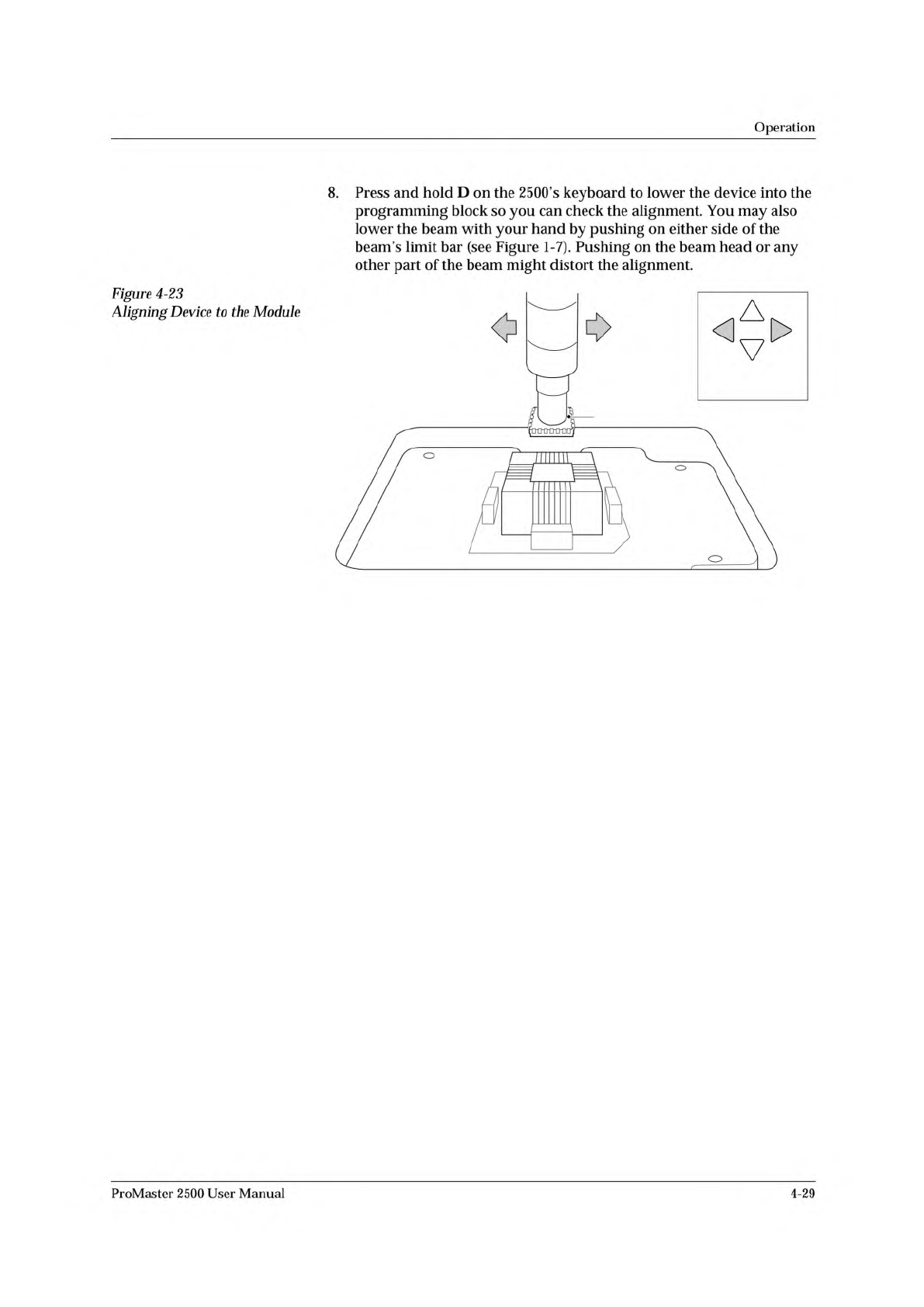

Figure
4-23
Aligning
Device
to
the
Module
ProMaster
2500
User
Manual
4-29
