1591-1 Preventive Maintenance Faulty Printing Printing Is Too Light The ribbon is worn or broken, the print head is worn, or the print head gap is too great. Replace ribbon, or print head. Adjust the print head gap (see …

Preventive

Maintenance

TaskLink

also

allows

you

to

download

device

data

from

a

file

on

your

PC.

TaskLink

sends

the

PE

information

on

the

data

file

format

and

then

downloads

the

file.

The

PE

translates

the

formatting

information

in

the

file,

discards

all

formatting

characters

and

stores

the

data

in

RAM.

The

PE

signals

TaskLink

when

it

completes

writing

the

file

data

into

RAM.

TaskLink

then

sends

the

“program”

command

to

the

PE

and

the

device

is

programmed.

Conditions

Requiring

Corrective

Action

To

run

the

diagnostic

tests

and

to

make

some

of

the

adjustments,

you

must

operate

the

2500

from

its

front

panel

in

local

mode.

You

cannot

run

the

tests

using

TaskLink.

To

access

the

front

panel

from

remote

mode,

press

LOWER

CASE

+

L.

To

return

to

remote

mode

after

completing

the

diagnostics

and

adjustments,

press

LOWER

CASE

十

R

from

the

Main

Menu.

Device

Jams

The

optics

detect

stopped

or

jammed

devices

and

alert

you

to

the

condition.

Some

common

causes

for

device

jams

are

listed

below.

•

The

track

width

is

not

adjusted

correctly

for

the

device

in

the

track.

•

A

partially

full

output

tube

was

inserted

in

the

tube

holder.

TaskLink

assumed

the

tube

was

empty

and

sent

too

many

devices

to

the

tube.

•

The

number

of

parts

per

tube

is

incorrect.

•

The

track

is

dirty

so

devices

cannot

travel

smoothly.

•

A

device

has

bent

leads

that

cause

it

to

become

wedged

in

the

narrow

track.

•

A

device

has

foreign

material

(such

as

residual

label

adhesive)

on

the

surface.

•

The

output

track

air

pressure

is

set

too

low

for

the

size

of

the

device.

•

The

transition

height

between

the

output

tracks

and

the

tubes

is

incorrect.

Adjust

the

output

transition

height

screw

(for

the

affected

track)

for

the

correct

tube

thickness.

If

a

jam

occurs

in

the

output

track

and

the

2500

stops

operating,

push

the

jammed

device

with

a

wood

or

plastic

pointer

into

the

tube.

When

you

free

the

device,

either

the

2500

resumes

operation

automatically

or

you

may

need

to

press

START

to

continue

operation.

If

a

device

does

not

move

easily

down

the

input

track

due

to

bent

pins

or

some

other

condition,

you

might

have

to

remove

that

device

from

the

input

track

and

resume

operation

by

pressing

START

or

by

restarting

the

Task.

If

a

device

falls

off

the

chuck,

replace

it,

press

START

and

follow

the

prompts

on

the

2500's

display.

If

the

system

times

out,

press

STOP

and

then

START.

ProMaster

2500

User

Manual

5-21

1591-1

Preventive

Maintenance

Faulty

Printing

Printing

Is

Too

Light

The

ribbon

is

worn

or

broken,

the

print

head

is

worn,

or

the

print

head

gap

is

too

great.

Replace

ribbon,

or

print

head.

Adjust

the

print

head

gap

(see

page

5-24).

Characters

Too

Close

Together

Labels

are

loaded

incorrectly,

the

rollers

are

dirty,

or

the

motor

or

drive

circuitry

is

not

operating

properly.

Load

the

labels

correctly,

clean

the

rollers,

and

make

sure

the

pinch

rollers

are

engaged

(see

page

2-9).

Check

the

label

advance

motor;

run

motor

diagnostics.

Print

Is

Erratic

or

Slanting

Print

head

gap

is

too

great,

or

the

label

drive

is

slipping.

Check

and

adjust

the

print

head

gap

(see

page

5-24),

or

clean

the

label

rollers.

Dots

in

Characters

Are

Missing

The

cables

may

not

be

properly

connected

or

they

may

be

faulty.

The

print

head

or

handler

controller

board

may

not

be

operating

properly.

The

labeler

power

supply

may

not

be

at

the

correct

voltage

level.

Check

the

power

supply

voltage

switch.

If

problem

persists,

contact

Data

I/O

Support

(phone

numbers

listed

in

the

Preface).

Check

the

LEDs

on

the

handler

controller

board

and

evaluate

the

labeler

operation

by

running

the

print

test.

Check

the

cable

connections.

Swap

cables

and

see

if

different

dots

are

missing.

Replace

the

print

head

(see

page

7-13).

Figure

5-5

Missing

Character

Dots

in

Label

Printout

KI

Characters

Are

Cut

Off

If

characters

are

cut

off

on

the

top

and

bottom

of

the

label,

try

a

smaller

font.

Check

and

adjust

the

label

calibration

(see

page

5-25).

Miscellaneous

Beam

Stalls

There

is

a

problem

with

the

motor

driver,

encoder,

fuses,

or

wiring.

Lead

screws

need

cleaning

and

lubrication.

Also,

inspect

the

shaft

for

wear

from

bad

bearings.

If

cleaning

does

not

correct

the

problem,

reduce

the

motor

speed

to

increase

the

motor

torque.

Refer

to

the

LOWER

CASE

+

M

command

in

the

“Firmware

Keys”

Appendix.

Contact

Data

I/O

Support

(phone

numbers

listed

in

the

Preface)

for

assistance.

5-22

ProMaster

2500

User

Manual

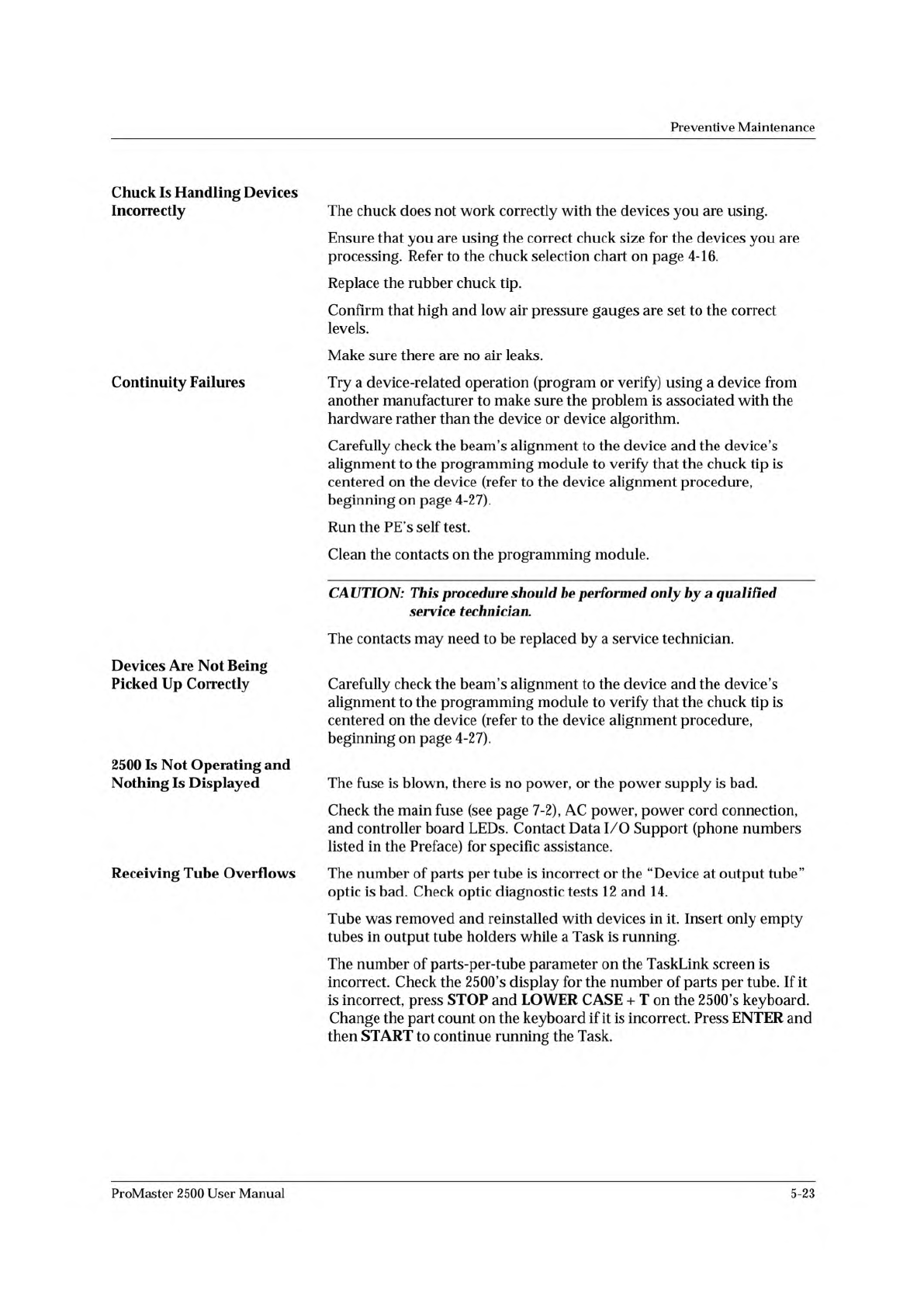

Preventive

Maintenance

Chuck

Is

Handling

Devices

Incorrectly

The

chuck

does

not

work

correctly

with

the

devices

you

are

using.

Ensure

that

you

are

using

the

correct

chuck

size

for

the

devices

you

are

processing.

Refer

to

the

chuck

selection

chart

on

page

4-16.

Replace

the

rubber

chuck

tip.

Confirm

that

high

and

low

air

pressure

gauges

are

set

to

the

correct

levels.

Make

sure

there

are

no

air

leaks.

Continuity

Failures

Try

a

device-related

operation

(program

or

verify)

using

a

device

from

another

manufacturer

to

make

sure

the

problem

is

associated

with

the

hardware

rather

than

the

device

or

device

algorithm.

Carefully

check

the

beam's

alignment

to

the

device

and

the

device's

alignment

to

the

programming

module

to

verify

that

the

chuck

tip

is

centered

on

the

device

(refer

to

the

device

alignment

procedure,

beginning

on

page

4-27).

Run

the

PE's

self

test.

Clean

the

contacts

on

the

programming

module.

CAUTION:

This

procedure

should

be

performed

only

by

a

qualified

service

technician.

The

contacts

may

need

to

be

replaced

by

a

service

technician.

Devices

Are

Not

Being

Picked

Up

Correctly

Carefully

check

the

beam's

alignment

to

the

device

and

the

device's

alignment

to

the

programming

module

to

verify

that

the

chuck

tip

is

centered

on

the

device

(refer

to

the

device

alignment

procedure,

beginning

on

page

4-27).

2500

Is

Not

Operating

and

Nothing

Is

Displayed

The

fuse

is

blown,

there

is

no

power,

or

the

power

supply

is

bad.

Check

the

main

fuse

(see

page

7-2),

AC

power,

power

cord

connection,

and

controller

board

LEDs.

Contact

Data

I/O

Support

(phone

numbers

listed

in

the

Preface)

for

specific

assistance.

Receiving

Tube

Overflows

The

number

of

parts

per

tube

is

incorrect

or

the

“Device

at

output

tube”

optic

is

bad.

Check

optic

diagnostic

tests

12

and

14.

Tube

was

removed

and

reinstalled

with

devices

in

it.

Insert

only

empty

tubes

in

output

tube

holders

while

a

Task

is

running.

The

number

of

parts-per-tube

parameter

on

the

TaskLink

screen

is

incorrect.

Check

the

2500's

display

for

the

number

of

parts

per

tube.

If

it

is

incorrect,

press

STOP

and

LOWER

CASE

+

T

on

the

2500's

keyboard.

Change

the

part

count

on

the

keyboard

if

it

is

incorrect.

Press

ENTER

and

then

START

to

continue

running

the

Task.

ProMaster

2500

User

Manual

5-23
