User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.8 Vision system
141
3.8.4 PCB camera, type 34, digital
3.8.4.1 Structure
3

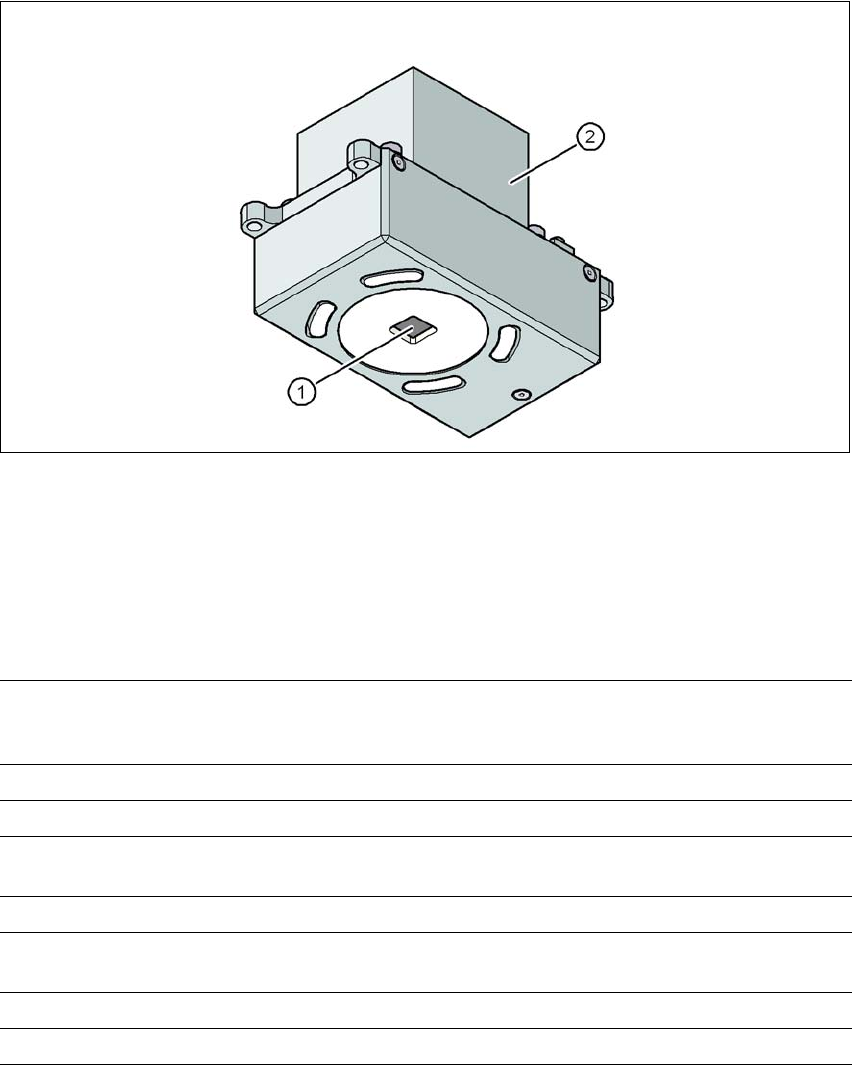

Fig. 3.8 - 3 PCB camera, type 34, digital
(1) PCB camera lens and illumination
(2) Camera amplifier
3.8.4.2 Technical data
3
PCB fiducials Up to 3 (subpanels and multiple panels)
Up to 6 for the Long board option (Optional PCB fiducials are
output by the optimization).
Local fiducials Up to 2 per PCB (may be of different type)
Library memory Up to 255 fiducial types per subpanel
Image analysis Edge detection method (Singular feature) based on grayscale
values
Illumination type Front-illumination (3 levels, programmable as required)
Detection time per
fiducial/bad fiducial
20 ms - 200 ms
Field of vision 5.78 mm x 5.78 mm
Distance from the focus plane 28 mm
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.8 Vision system From software version SC 706.1 SP1 Version 10/2014
142
3.8.4.3 Fiducial criteria
3
3.8.4.4 Ink spot criteria
3
Locate 2 fiducials
Locate 3 fiducials
X-/Y-position, rotation angle, mean PCB distortion
additional: shearing, distortion separately in X and Y direction
Fiducial shapes Synthetic fiducials: circle, cross, square, rectangle, diamond,
circular, square and rectangular contours, double cross
Pattern: any
Fiducial surface
Copper
Tin
Without oxidation and solder resist
Warp ≤ 1/10 of structure width, both with good contrast to
environment
Dimensions of synthetic fiducials
Min. X/Y size for circle and rectangle:
Min. X/Y size for annulus and rectangle:
Min. X/Y size for cross:
Min. X/Y size for double-cross:
Min. X/Y size for rhombus:
Min. frame width for annulus and rectangle:
Min. bar width / bar distance for cross, double-cross:
Max. X/Y size for all fiducial shapes:
Max. bar width for cross, double-cross:
Min. tolerances, general:
Max. tolerances, general:
0.25 mm
0.3 mm
0.3 mm
0.5 mm
0.35 mm
0.1 mm
0.1 mm
3 mm
1.5 mm
2% of nominal dimension
20% of nominal dimension
Dimensions of patterns
Min. size
Max. size
0.5 mm
3 mm
Fiducial environment Clearance around reference fiducial not necessary if there is no
similar fiducial structure in the search area.
Methods - Synthetic fiducial recognition method
- Mean grayscale value
- Histogram method
- Template matching
Shapes and sizes of fiducials/
structures for
Synthetic fiducials
Other methods
For dimensions of synthetic fiducials, see Section Fiducial crite-
ria 3.8.4.3, page 142.
Min. 0.3 mm
Max. 5 mm
Masking material Good coverage
Recognition time Depends on the method: 20 ms - 0.2s
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2
143
3.9 X feeder modules for SIPLACE SX1/SX2
The SIPLACE SX1/SX2 uses the entire spectrum of the SIPLACE X feeder modules. All SIPLACE
X feeder modules are compatible with the changeover tables of the SIPLACE SX1/SX2 and can
be used without restrictions. Key properties of the SIPLACE X feeder modules include the high
precision of the pickup position, online programmability, status displays on an LCD display and
simple handling for feeder module changes during the placement process. The power supply to
the feeder modules is contactless and uses an inductive interface. Each feeder module commu-
nicates with the feeder module control unit (FCU) via two optoelectronic channels (optical fiber).
The two interfaces form the EDIF assembly (energy and data interface, see item 2 in fig. 3.9 - 1
,
page 146
). The feeder module control unit is connected to the control unit of the machine via the
CAN bus.
3.9.1 Tape feeder modules for the SIPLACE X-Series
3.9.1.1 Tape material
The possible tape widths range from 4 mm to 88 mm. The tape material is blister or paper. Com-
ponent tapes with a permanently adhesive cover foil (PSA foil) can also be processed. This will
require the "PSA Kit" option.
The design of the tape feeder modules was based on the following tape standards:
DIN EN 60286-3 (12/1998) / IEC 60286-3 (12/1997)
JIS C 0806-3 (1999)
ANSI/EIA 481-C (10/2003)
IEC 60286-3-2 3
PSA Kit Item no.
8 mm X PSA Kit 00141224-xx
12 mm X PSA Kit 00141225-xx
16 mm X PSA Kit 00141227-xx
