5 Working with the machine User manual SIPLACE SX1/SX2 5.10 Setting up the feeder modules From software version SC 706.1 SP1 Version 10/2014 262 5 Fig. 5.10 - 2 Check the X feeder module before using it (1) Remov al hand…
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.10 Setting up the feeder modules
261
5
Close the pickup window (item 3 in fig. 5.10 - 2), by returning the lever (item 4 in fig. 5.10
- 2) to its original position.
Remove loose components from the changeover table with a brush or use a vacuum
cleaner with appropriate nozzle.
5
If the removal handle (item 1) is still protruding, then latch it in place.
PLEASE NOTE
If the component tape is already inserted, cut it off flush with the front edge of the
feeder module.
5 Working with the machine User manual SIPLACE SX1/SX2
5.10 Setting up the feeder modules From software version SC 706.1 SP1 Version 10/2014
262
5
Fig. 5.10 - 2 Check the X feeder module before using it
(1) Removal handle
(2) Cover foil rocker
(3) Pickup window
(4) Lever for raising and latching the pick-up window
(5) Component disposal compartment
User manual SIPLACE SX1/SX2 5 Working with the machine
From software version SC 706.1 SP1 Version 10/2014 5.10 Setting up the feeder modules
263
5.10.3.2 Inserting the X feeder module into the changeover table
5

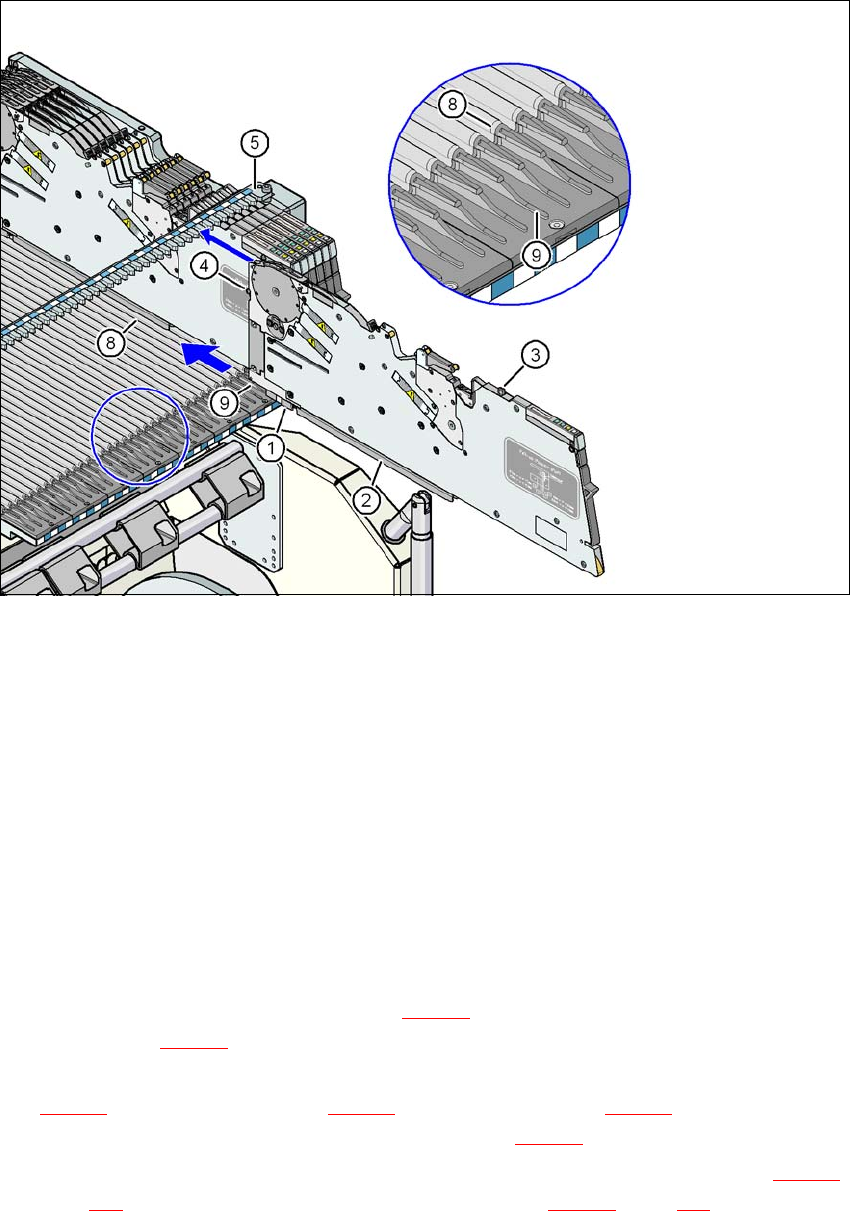

Fig. 5.10 - 3 Inserting the X feeder module into the changeover table
(1) Front slider guide for the X feeder module
(2) Back slider guide for the X feeder module
(3) "Back" centering pin on the X feeder module
(4) "Front" centering pin on the X feeder module
(5) Recesses in the centering bar for holding the "back" centering pin
(6) Centering holes on the changeover table for holding the "front" centering pin
(7) Locking latches
(8) Guide profile for the changeover table (Ω profile)
(9) Insertion aid for the feeder module
5
Place the front slider guide (item 1 in fig. 5.10 - 3) of the feeder module on the insertion aid
(item 9 in fig. 5.10 - 3
) of the changeover table.
Hold the feeder module vertically and push it forward, along the guide profile (item 8 in fig.
5.10 - 3
). The front (item 1 in fig. 5.10 - 3) and rear (item 2 in fig. 5.10 - 3) slider guides of the
feeder module slide on the guide profile (item 8 in fig. 5.10 - 3
).
Carefully push the feeder module further until the "front" centering pin (item 4 in fig. 5.10 - 3,
page 263
) is pushed into the centering hole (item 6 in fig. 5.10 - 3, page 263).
