3.9.2.8 Tape feeder module 32 mm X
3

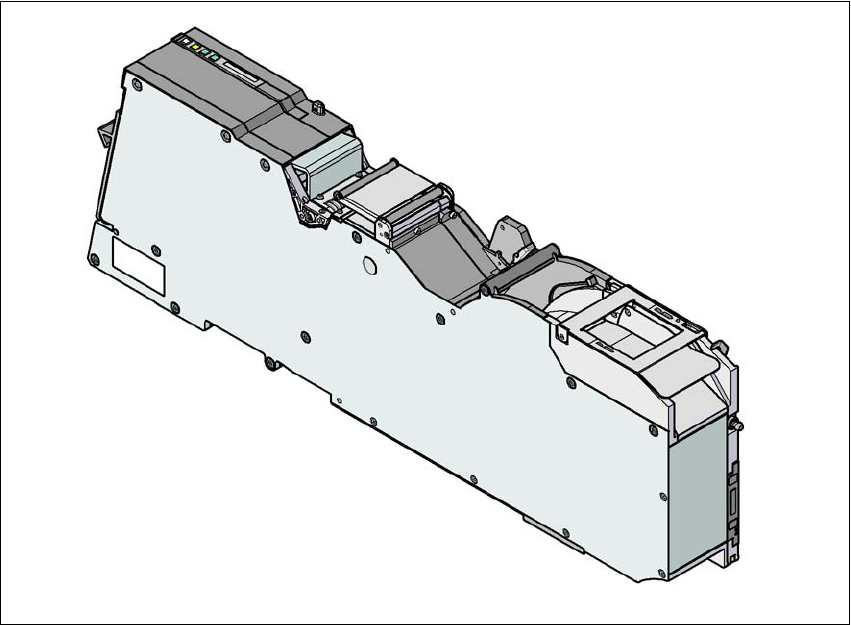

Fig. 3.9 - 10 Tape feeder module 32 mm X
3
3
Tape feeder module 32 mm X Item no. 00141274-xx
32 mm X tape feeder module with splice sensor Item no. 00141294-xx
Width 46.2 mm
Feeder module locations filled 4
Conveyor increment From 4 mm to 40 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User manual SIPLACE SX1/SX2
3.9 X feeder modules for SIPLACE SX1/SX2 From software version SC 706.1 SP1 Version 10/2014
156
3.9.2.9 Tape feeder module 44 mm X
3
Fig. 3.9 - 11 Tape feeder module 44 mm X
3
3
3
3
Tape feeder module 44 mm X Item no. 00141275-xx
44 mm X tape feeder module with splice sensor Item no. 00141295-xx
Width 58,0
Feeder module locations filled 5
Conveyor increment From 4 mm to 52 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User manual SIPLACE SX1/SX2 3 Technical data and assemblies
From software version SC 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE SX1/SX2
157
3.9.2.10 Tape feeder module 56 mm X
3
Fig. 3.9 - 12 Tape feeder module 56 mm X
3
3
3
Tape feeder module 56 mm X Item no. 00141276-xx
56 mm X tape feeder module with splice sensor Item no. 00141296-xx
Width 69,8
Feeder module locations filled 6
Conveyor increment From 4 mm to 64 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
