6.6 Docking station for the component trolley of the
SIPLACE SX
6.6.1 Overview
The docking station is an additional component for the setup area. It forms the link between the
setup area and the component trolley for the SIPLACE SX1/SX2 and X-Series. The docking sta-
tion allows the component trolleys to be set up with feeder modules and function tests and setup
checks to be carried out externally. The component trolley can be used with 30, 40 or 60 tracks.
The appropriate separating modules will be needed where relevant.
For a detailed description, see the "Operating guide Docking Station for Component Trolleys in
SIPLACE SX", Item No. 00196691-xx]
6

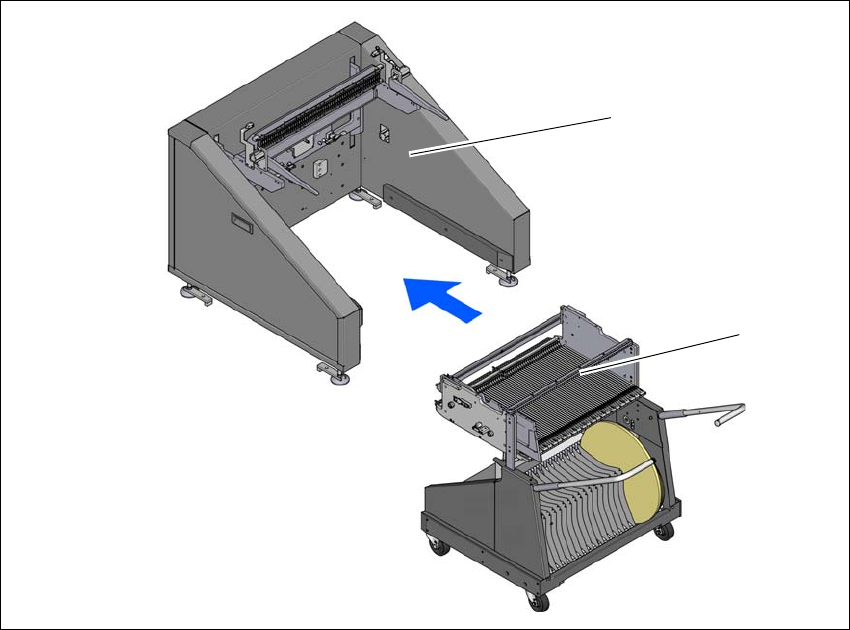

Fig. 6.6 - 1 Docking station, SIPLACE SX-Series
(1) Docking station
(2) Component trolley (with 60 tracks)
(1)
(2)
6 Station extensions User manual SIPLACE SX1/SX2
6.6 Docking station for the component trolley of the SIPLACE SX From software version SC 706.1 SP1 Version 10/2014
330
6.6.2 Technical data
6
Fig. 6.6 - 2 Docking station, SIPLACE SX-Series - dimensions
6
L1 Length 1038 mm
L2 Width 801.5 mm
L3 Height to centering pin 859 mm for 900 mm PCB conveyor height
889 mm for 930 mm PCB conveyor height
909 mm for 950 mm PCB conveyor height
Weight
Compressed air pressure values p
min
0.5 MPa (5.0 bar)
p
max
1.0 MPa (10.0 bar)
Compressed air connection Connection plug KS 2-M5-A
Rate of flow
*a
5 Nl/min
Supply voltage 88 - 264 V~
Frequency max. 63 Hz
Rated current max. 2 A
Performance 0.23 kW
Fuse 2 x 8 A
*)a Under normal atmospheric conditions at 20°C and 1013 hPa
User manual SIPLACE SX1/SX2 6 Station extensions
From software version SC 706.1 SP1 Version 10/2014 6.6 Docking station for the component trolley of the SIPLACE SX
331
6.6.2.1 Dimensions with docked component trolley
6
Fig. 6.6 - 3 Docking station with component trolley, SIPLACE SX-Series - dimensions
(1) Component trolley
(2) Docking station
(2)
(1)
