User manual SIPLACE SX1/SX2 6 Station extensions From software version SC 706.1 SP1 Versi on 10/2014 6.2 Waffle pack changer (WPC5/WPC6) 313 6.2 W affle p ack changer (WPC5/WPC6) The functionality and the tech nical data…

6 Station extensions User manual SIPLACE SX1/SX2

6.1 Nozzle changer From software version SC 706.1 SP1 Version 10/2014

312

6.1.4.7 Position detection

Each magazine of the nozzle changer has two fiducials: one for determining the position and one

for determining the angular position.

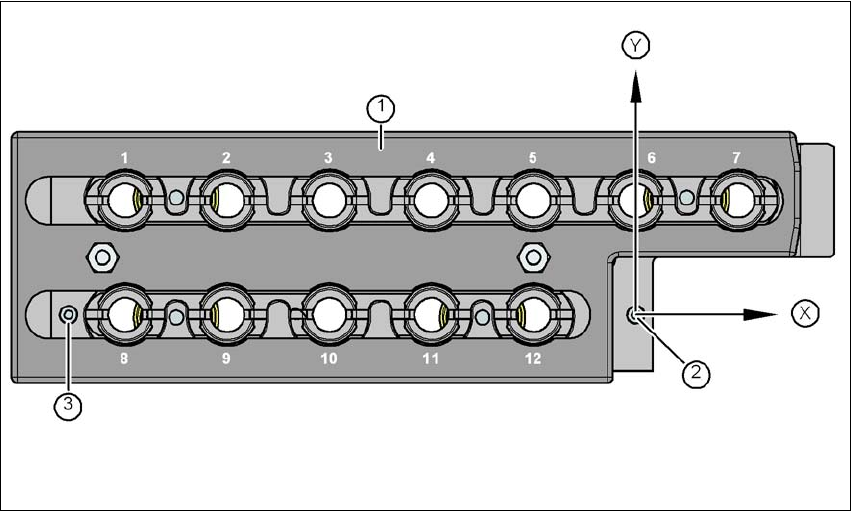

Fig. 6.1 - 21 Nozzle magazine - holder numbering, fiducials for determining the position and angular position

(1) Locking plate in the "magazine open" position

(2) Fiducial for determining the position

(3) Fiducial for determining the angular position

User manual SIPLACE SX1/SX2 6 Station extensions

From software version SC 706.1 SP1 Version 10/2014 6.2 Waffle pack changer (WPC5/WPC6)

313

6.2 Waffle pack changer (WPC5/WPC6)

The functionality and the technical data for the WPC5 are largely identical to those for the WPC6.

However, the WPC6 also has a non-stop module.

6.2.1 Description

The waffle pack changer makes components available in the waffle pack trays, to avoid unneces-

sary loss of time during storage and automatic changing of the waffle pack trays. The individual,

programmable access to up to 28 waffle pack trays also increases the range of components avail-

able.

The waffle pack changer has an integral chassis, and is easy to move to other locations. It is sup-

plied with the PCB conveyor height set for the customer-specific machine but can be quickly and

easily adapted to conveyor heights of 900, 930, and 950 mm. The changeover table with 30 loca-

tions needs to be set up on the remaining location.

6 Station extensions User manual SIPLACE SX1/SX2

6.2 Waffle pack changer (WPC5/WPC6) From software version SC 706.1 SP1 Version 10/2014

314

6.2.2 Overview WPC5

Item no. 00119827-xx WPC5

Fig. 6.2 - 1 WPC5 on the SIPLACE SX1/SX2

(1) WPC5

(2) Component trolley with 30 tracks

(1)

(2)
