Fitting the Long Board Option Overview Long Board Option 47 3 Fitting the Long Board Option 3.1 Overview 3.2 Preparing the S top Guide Rails Overview of stop guide rail parts NOTICE Single conveyor Installation o f the o…
Brief Description
Scope of Delivery Parts Overview
46 Long Board Option

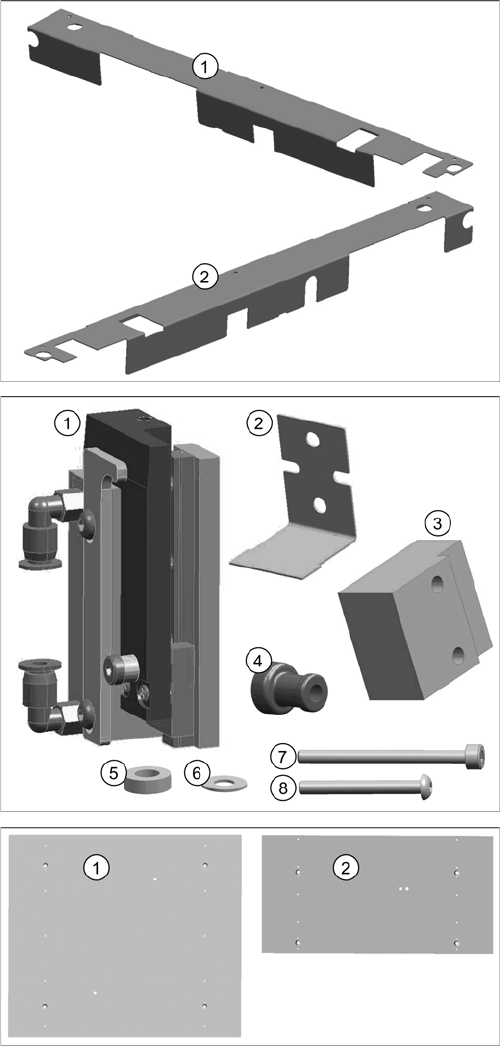

1. Cover 2 right stopper rail LBO SX12 [03091990-xx]
2. Cover 2 left stopper rail LBO SX12 [03091991-xx]
1. Stopper 25 SX pneumatic complete [03084034-xx]
2. Sheet [03084255-xx]
3. Spacer LBO [03091992-xx]
4. Support socket [03085311-xx]
5. Distance washer M3 / H=2 mm [03092259-xx]
6. Washer (H = 0.5 mm, DIN125-A-3.2-140HV-A2)
[00316904-xx]
7. Socket head cap screw for fitting the stopper
(ISO4762-M3x35-A2-70) [03043114-xx]
8. Filister hex socket head screw for fitting the stopper
(DIN-EN-ISO7380-M3x25-A2-70) [03045198-xx]
1. Lifting table plate LBO B2 SC (Single Conveyor)
[03070780-xx]
2. Lifting table plate LBO B2 DC (Double Conveyor)
[03070791-xx]
Fitting the Long Board Option
Overview
Long Board Option 47
3 Fitting the Long Board Option
3.1 Overview
3.2 Preparing the Stop Guide Rails
Overview of stop guide rail parts
NOTICE
Single conveyor
Installation of the option is described below, using the example of a dual conveyor. Unless oth-
erwise specified, installation for a single conveyor is identical to that described for lane 1 of the
dual conveyor.
Overview of single conveyor SX1/SX2 (FS02)
1. Standard stopper
2. Sensor rail
3. Installation position of new stopper
T = transport direction
Item No. Quantity Designation
03088191-xx Stop guide rail left 599 complete
00200240-xx 7 Filister hex socket head screw (DIN-EN-ISO7380-M3x6-
12.9)
03064824-xx 2 Spring steel plate for height reference run
00317829-xx 2 Positioning fiducial
03088194-xx 1 Stop guide rail with rubber molding left 599
03088192-xx 1 Guidance rail left 599 (lower section)
03088196-xx Stop guide rail right 599 complete
00200240-xx 7 Filister hex socket head screw (DIN-EN-ISO7380-M3x6-
12.9)
03064824-xx 2 Spring steel plate for height reference run
00317829-xx 2 Positioning fiducial
03088199-xx 1 Stop guide rail with rubber molding right 599
03088197-xx 1 Guidance rail right 599 (lower section)
Fitting the Long Board Option
Preparing the Stop Guide Rails
48 Long Board Option
Overview
Stop guide rail structure
► Dismantle the stop guide rails on the upper and lower sections. To do this, loosen the screws (5) and
remove the upper section. Make sure that you keep the parts of the individual rails separate from
one another, to avoid subsequent confusion.
► Repeat these steps for all stop guide rails.
1 Stop guide rail, dismantled 2 Detailed view of stop guide rail
3 Upper section of stop guide rail 4 Lower part of stop guide rail
5 Filister hex socket head screw for fitting the
upper part to the lower part
6 Filister hex socket head screw for fitting the
rail to the conveyor side
