sufficient to raise the height of the table to roughly the height of the extension. If the table extension

is installed, simply affix the tray or tape to the extension using double-sided tape or any other

suitable method. It is important that the components be placed in a reasonably straight horizontal or

vertical orientation, and that the tray or tape is placed flat to avoid variations in pick height. Figure 3

shows an example of a simple short tape/tray configuration.

5.2.3 Auto-rails

Adjustment of auto-rails

Figure 5.3

Loosen screws on A and B, then the left rail can be moved arbitrarily.

Put PCB on the groove of rails and tighten and screws A and B once confirmed the width.

Once finished width adjustment, put the board into rails. See the Figure 5.3.

Adjustment of belt tightness

Loose the screw, move the motor up and down to adjust the tightness. Loose the screw, to adjust the

tightness, see the Figure 5.4.

Figure 5.4

Flash board of the upward-looking Camera:

Figure 5.5

Adjust the brightness of the camera by gear switch, to work with different components. See the

Figure 5.5.

High magnetic positioning plate

Figure 5.6

Use high magnetic positioning plate to fix PCB and IC tray. See the Figure 5.6.

5.3

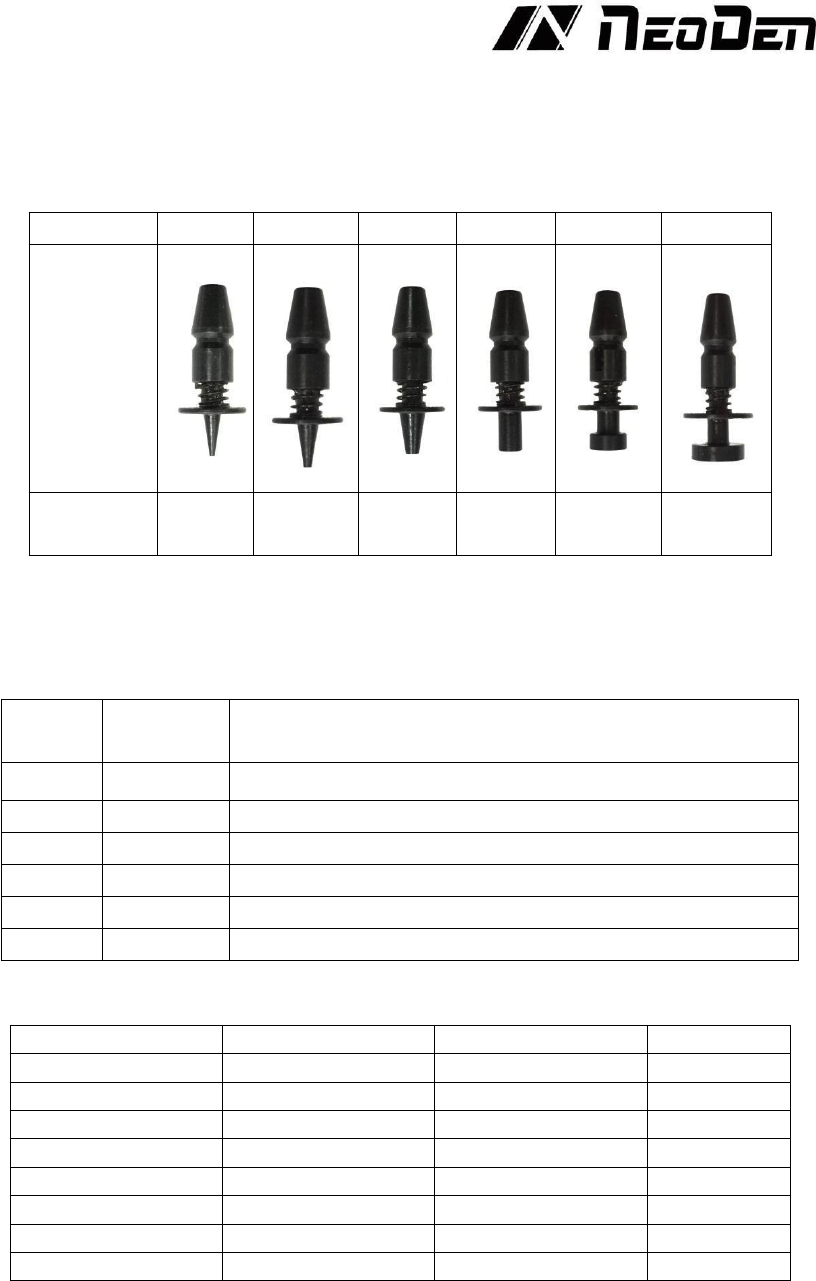

Nozzle

The size of nozzle

Please choose nozzles according to the shape and size of components.

Table 1-1 Nozzle

Model

CN030

CN065

CN140

CN220

CN400

CN750

Illustration

Inner

diameter

0.3mm

0.65mm

1.4mm

2.2mm

4mm

7.5mm

Reference of nozzle selection

In order to assure placement accuracy, please select nozzles according to the shape and size of

components.

Table 1-2 Size comparison of nozzles

Size

Minimum

diameter

Recommendation

CN030

0.2mm

0201,0402

CN065

0.5mm

0402,0603,0805, diode

CN140

1.2mm

1206,1210,1812,2010, SOT23,5050

CN220

2.0mm

SOP series ICs, SOT89, SOT223, SOT252

CN400

4.0mm

ICs from 5 to 12mm

CN750

7.5mm

ICs bigger than 12mm

size

0201

0.6*0.3

0402

1.0*0.5

0603

1.6*0.8

0805

2.0*1.2

1206

3.2*1.6

1210

3.2*2.5

1812

4.5*3.2

2010

5.0*2.5

SMA

4.0*2.5

SMB

4.0*3.3

SMC

6.6*5.6

SOT23

3*1.4

SOT89

4.5*2.5

SOT223

6.4*3.7

TO252

6.5*6.3
