Overview
Service Manual SIPLACE Glue Feeder 9
2
2 Overview
Overview

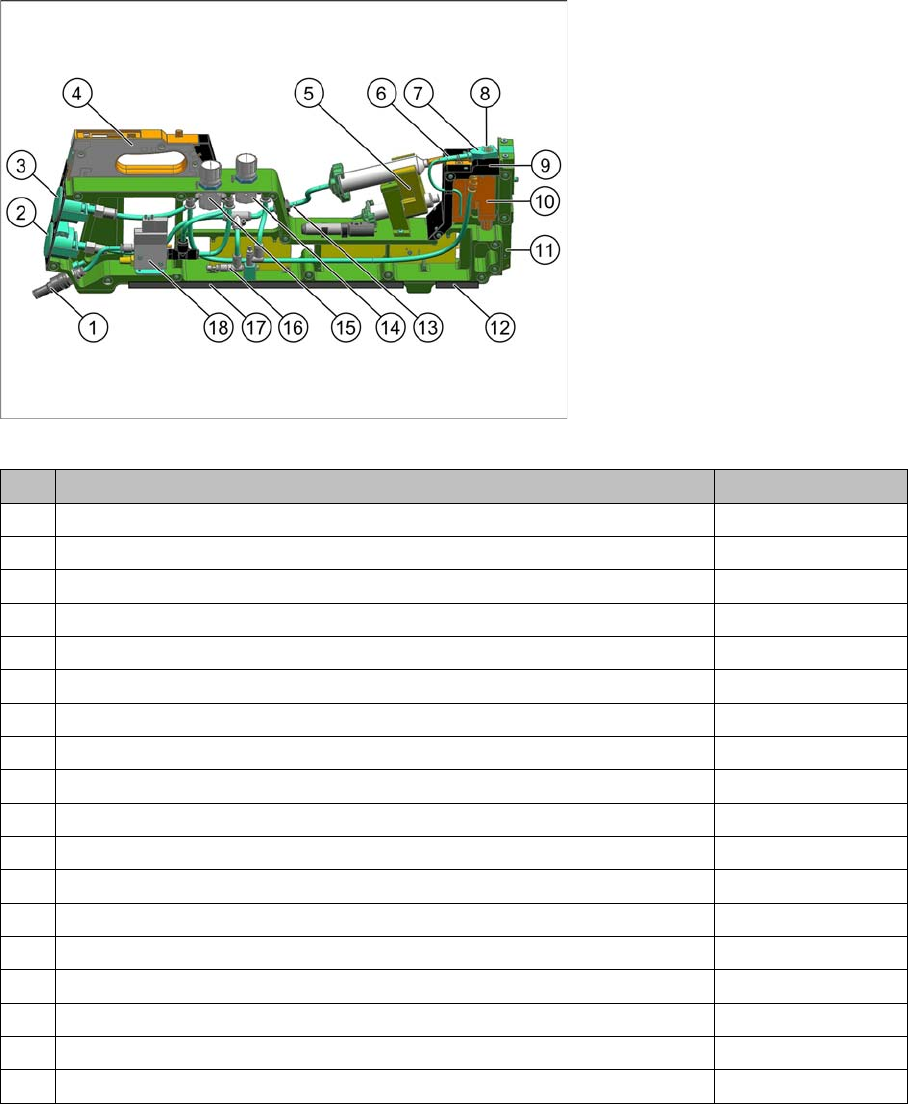

Overview of spare parts
Spare part Item no.
1 Coupler plug KK3P-06E 03093200- xx
2 Manometer 4K8-4P assembly. (cartridge) 03094560- xx
3 Manometer 4K8-10P assembly. (dispenser) 03094559- xx
4 Handle assembly X12/X16 V2 03082057- xx
5 Cartridge holder assembly 03094060- xx
6 Cartridge Pipe 03089046- xx
7 Nozzle heating 03096486- xx
8 Flat nozzle FD6100 03094220- xx
9 Spare fluidic (jet block) 03094177- xx
10 Jet valve P-DOT (jet valve) 03096487- xx
11 EDIF secondary assembly X2x8 03065209- xx
12 Sliding foil, X-feeder JUM-S-06LY 03019604- xx
13 Plug-in fitting SCN-PK-4 03095834- xx
14 Pressure control valve LR-M7-D-O-MICRO-B assembly (cartridge) 03094558- xx
15 Pressure control valve LR-M7-D-O-7 assembly (dispenser) 03097857- xx
16 Regulator holder assembly 03097710- xx
17 Sliding guide/rear L200 03003994- xx
18 Solenoid valve assembly 03096565- xx
Overview
10 Service Manual SIPLACE Glue Feeder
