MODEL TPM-1 10F/R 0108-001 120 メカ廻り MECHANICAL DISTRIBU TION SECTION Fig. K-2 エア配管 1 Air Piping-1 162 163 161 102 103 105 101 See Fig.K-1 Key No.4 104 Fig.K-2 TPM-100F/R TPM-110F/R 106
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
119
K-1
1 630 092 8099 CASTER 4 748K--210-001
2 630 003 0570 FEED SCREW 4 748K--210-002
3 630 029 8178 BLOCK,LOCATE 4 748K--210-003
4 630 102 9825 BASE 1 748K--210-004
5 630 090 8459 PLATE 4 748K--210-005
6 630 090 9579 PLATE 4 748K--210-006
61 630 000 8012 BOLT,HEX-SCT 16 748K--210-061
62 411 141 4503 WASHER V 8X17X1.6 16 748K--210-062
63 411 141 3100 WASHER SPR 8 16 748K--210-063
MODEL TPM-110F/R
0108-001
120
メカ廻り MECHANICAL DISTRIBUTION SECTION

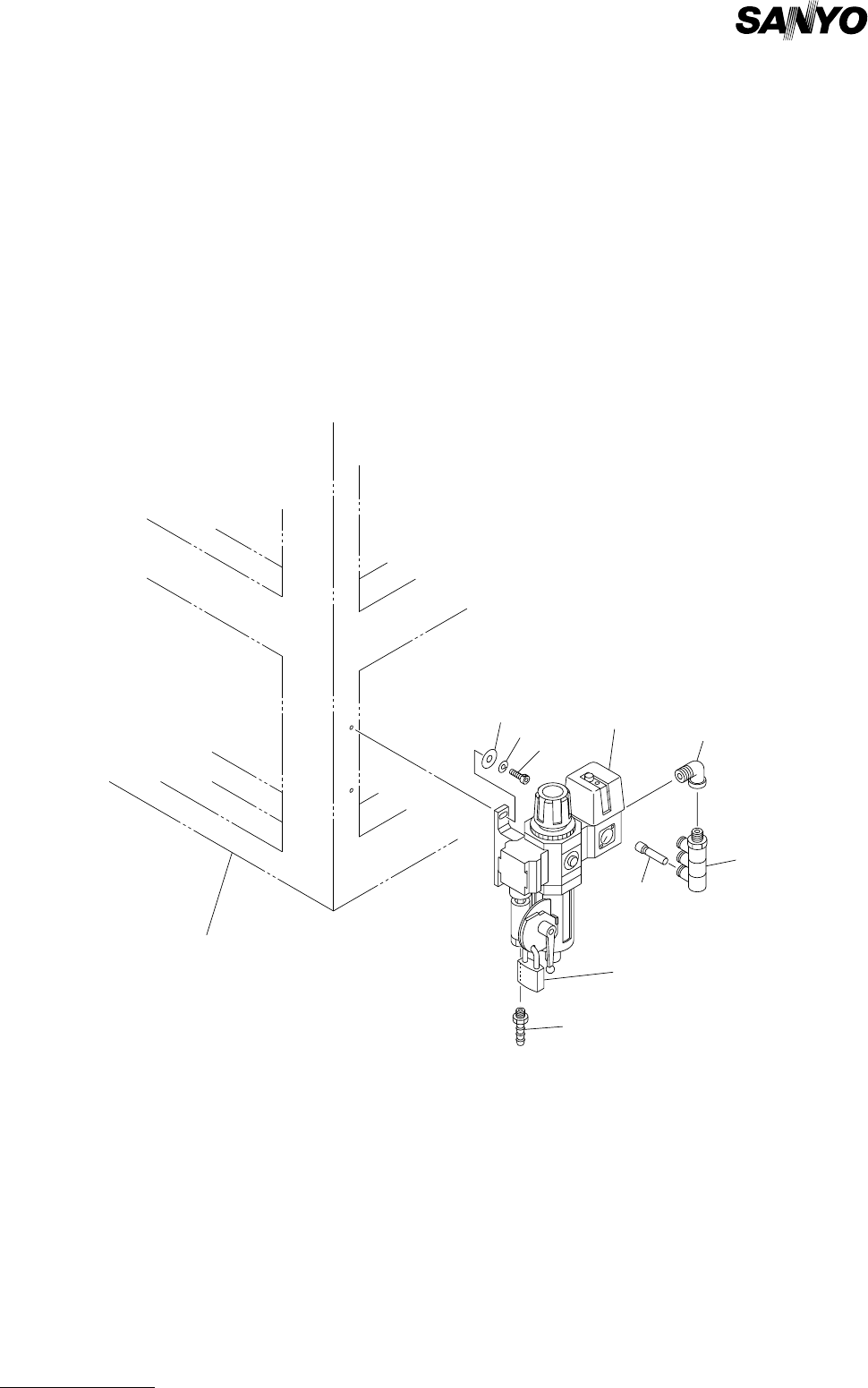

Fig. K-2 エア配管 1 Air Piping-1
162
163
161
102
103
105
101
See Fig.K-1
Key No.4
104
Fig.K-2
TPM-100F/R
TPM-110F/R
106
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
121
K-2
101 630 057 9383 AIR LINE EQPT 1 #A3-211496 748K--210-101
102 630 003 7890 PIPE FITTINGS 1 748K--210-102
103 630 092 8181 PIPE FITTINGS 1 748K--210-103
104 630 096 8163 MECH PARTS 1 748K--210-104
105 630 003 7814 PIPE FITTINGS 1 748K--210-105
106 630 061 9737 MECH PARTS (PADLOCK) 1 748K--210-106
161 630 000 7893 BOLT,HEX-SCT 2 748K--210-161
162 630 001 0237 WASHER 2 748K--210-162
163 411 141 3001 WASHER SPR 6 2 748K--210-163
