MODEL TPM-1 10F/R 0108-001 Key No . P AR T No . P AR T NAME Q’ty REMARKS NOTE 143 BA-1 1 630 089 2772 BREAKER 1 Q200 748BA-210-001 2 630 083 5441 HANDLE 1 748BA-210-002 3 630 083 5434 COVER 1 748BA-210-003 4 630 091 2562…
MODEL TPM-110F/R
0108-001
142
メイン電源部 MAIN POWER SUPPLY SECTION

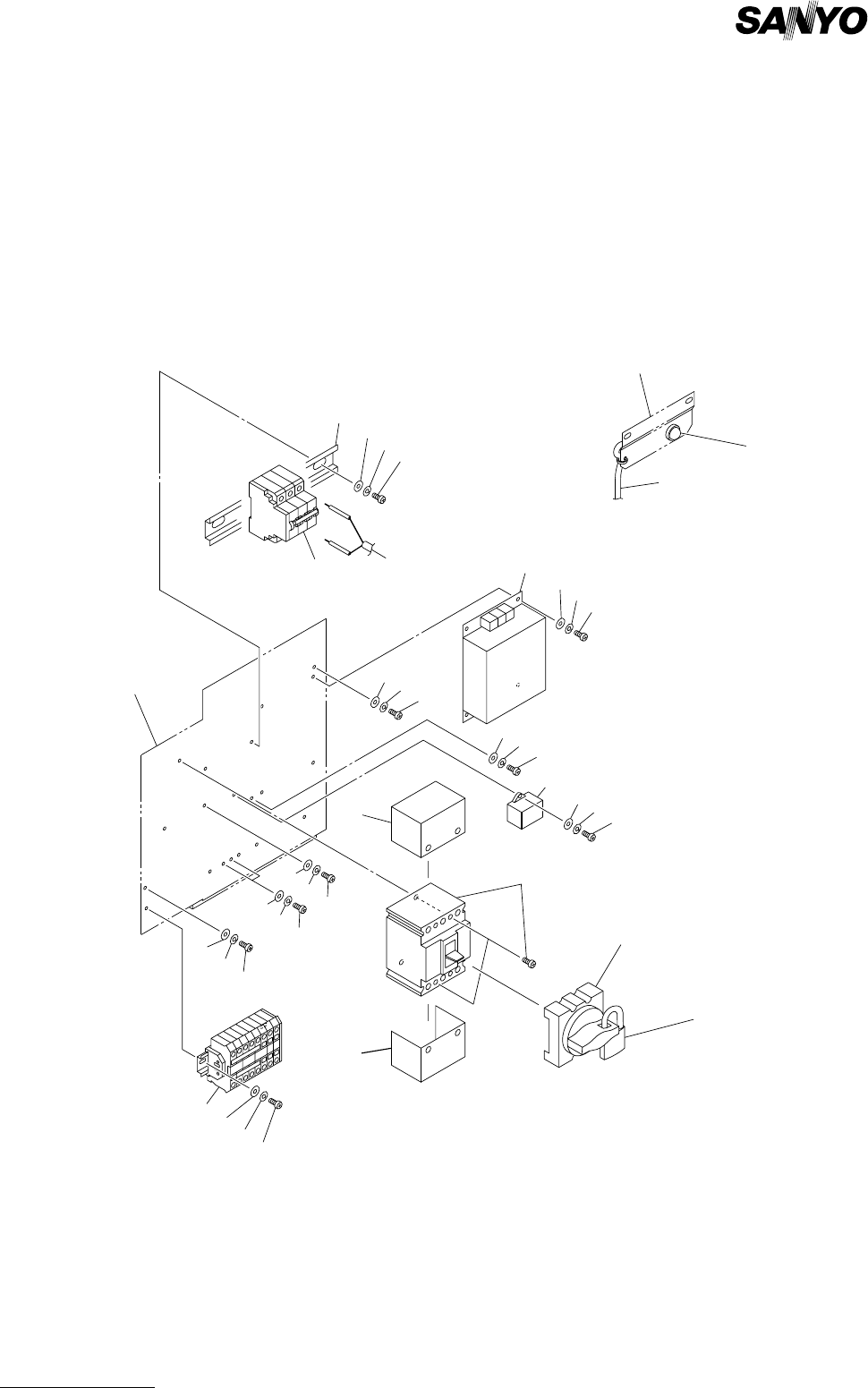

Fig. BA-1 メイン電源 Main Power Supply
See Fig.K-4
Key No.307
See Fig.K-4
Key No.301
9
10
7
63
62
6
66
65
64
61
8
63
62
61
5
11
4
63
62
61
Fig.BA-1
TPM-100F/R
TPM-110F/R
63
62
61
63
62
61
69
68
67
69
68
67
63
62
61
3
3
1
2
12
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
143
BA-1
1 630 089 2772 BREAKER 1 Q200 748BA-210-001
2 630 083 5441 HANDLE 1 748BA-210-002
3 630 083 5434 COVER 1 748BA-210-003
4 630 091 2562 TERMINAL 1 X000 748BA-210-004
5 630 089 2710 CIRCUIT PROTECTOR 1 Q201 748BA-210-005
6 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 FV001 748BA-210-006
7 630 089 2666 FILTER,NOISE 1 Z001 748BA-210-007
8 630 091 1688 ACCESSORY,WIRING 1 748BA-210-008
9 630 067 3562 PILOT LAMP 1 HPL-001 748BA-210-009
10 630 088 5583 CORD 1 748BA-210-010
11 630 088 5590 CORD 1 XNC026- 748BA-210-011
12 630 053 4917 MECH PARTS (PADLOCK) 1 748BA-210-012
61 411 113 1400 SCR PAN 4X6 12 748BA-210-061
62 411 008 1706 WASHER SPR 4 12 748BA-210-062
63 411 119 2104 WASHER V 4X9X0.8 12 748BA-210-063
64 411 043 5004 SCR PAN 4X8 1 748BA-210-064
65 411 008 1706 WASHER SPR 4 1 748BA-210-065
66 411 119 2104 WASHER V 4X9X0.8 1 748BA-210-066
67 411 113 2803 SCR PAN 5X8 2 748BA-210-067
68 411 008 2109 WASHER SPR 5 2 748BA-210-068
69 411 088 1702 WASHER V 5X10X1 2 748BA-210-069
