MODEL TPM-1 10F/R 0108-001 160 前後インターフェース部 PREVIOS/NEXT INTERFACE SECTION Fig. FH-1 前後インターフェース Previous/Next Interface 2 67 68 69 5 63 6 1 4 9 62 61 63 65 11 70 10 70 7 8 66 64 12 3 13 62 61 See Fig.K-5 Key No.403 Fig.FH…
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
159
FG-1
1 630 000 4243 SOCKET 1 X001 748FG-210-001
2 630 049 1098 SWITCH,TOGGLE 1 S101 748FG-210-002
3 402 061 5206 WIRE WOUND 100 JB 80W 1 R101 748FG-210-003
4 630 091 1817 NAME PLATE,INDEX 1 748FG-210-004
5 630 091 1824 NAME PLATE,INDEX 1 748FG-210-005
6 630 088 6405 CORD 1 748FG-210-006
61 411 113 1400 SCR PAN 4X6 4 748FG-210-061
62 411 008 1706 WASHER SPR 4 4 748FG-210-062
63 411 119 2104 WASHER V 4X9X0.8 4 748FG-210-063
64 411 040 6202 SCR PAN 3X10 2 748FG-210-064
65 411 086 4408 WASHER SPR 3 2 748FG-210-065
66 411 119 1909 WASHER V 3X7X0.5 2 748FG-210-066
67 411 054 6809 NUT HEX 3 2 748FG-210-067
MODEL TPM-110F/R
0108-001
160
前後インターフェース部 PREVIOS/NEXT INTERFACE SECTION

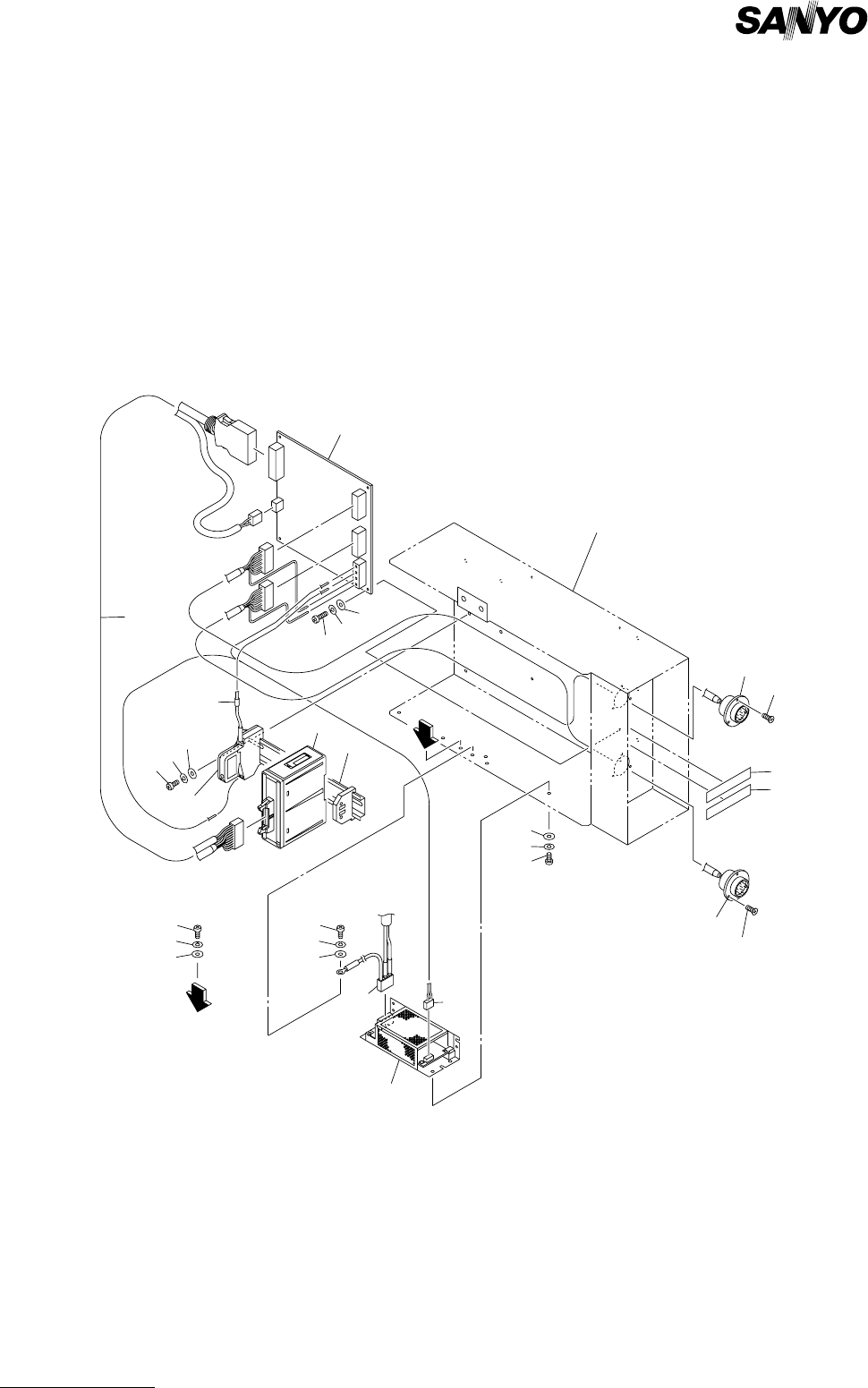

Fig. FH-1 前後インターフェース Previous/Next Interface
2
67
68
69
5
63
6
1
4
9
62
61
63
65
11
70
10
70
7
8
66
64
12
3
13
62
61
See Fig.K-5
Key No.403
Fig.FH-1
TPM-100F/R
TPM-110F/R
62
61
63
A
A
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
161
FH-1
1 630 089 2857 UNIT,I/O 1 N003, SAB10-TM16J3A
748FH-210-001
2 630 089 2550 P.C.B,MOUNT 1 #SVME-U943-24V 748FH-210-002
3 630 089 2642 UNIT,POWER 1 G003, #ZWS5-24/JA 748FH-210-003
4 630 091 2593 TERMINAL 1 748FH-210-004
5 407 005 1306 DIODE DS135C 1 748FH-210-005
6 423 025 2000 FUSE 250V 0.4A 1 F005 748FH-210-006
7 630 091 1831 NAME PLATE,INDEX 1 748FH-210-007
8 630 091 1848 NAME PLATE,INDEX 1 748FH-210-008
9 630 088 6412 CORD 1 XCN030-XCN031-033
748FH-210-009
10 630 088 6429 CORD 1 XCN036- 748FH-210-010
11 630 088 6436 CORD 1 XCN035- 748FH-210-011
12 630 088 6443 CORD 1 XCN037- 748FH-210-012
13 630 088 7280 CORD 1 XCN038- 748FH-210-013
61 411 113 1400 SCR PAN 4X6 4 748FH-210-061
62 411 008 1706 WASHER SPR 4 4 748FH-210-062
63 411 119 2104 WASHER V 4X9X0.8 4 748FH-210-063
64 411 042 0703 SCR PAN 3X8 2 748FH-210-064
65 411 086 4408 WASHER SPR 3 2 748FH-210-065
66 411 119 1909 WASHER V 3X7X0.5 2 748FH-210-066
67 411 162 1604 SCR PAN 3X20 4 748FH-210-067
68 411 086 4408 WASHER SPR 3 4 748FH-210-068
69 411 119 1909 WASHER V 3X7X0.5 4 748FH-210-069
70 411 034 7208 SCR FLT 3X8 6 748FH-210-070
