MODEL TPM-110F/R
0108-001
144
リレーシーケンス部 RELAY SEQUENCE SECTION

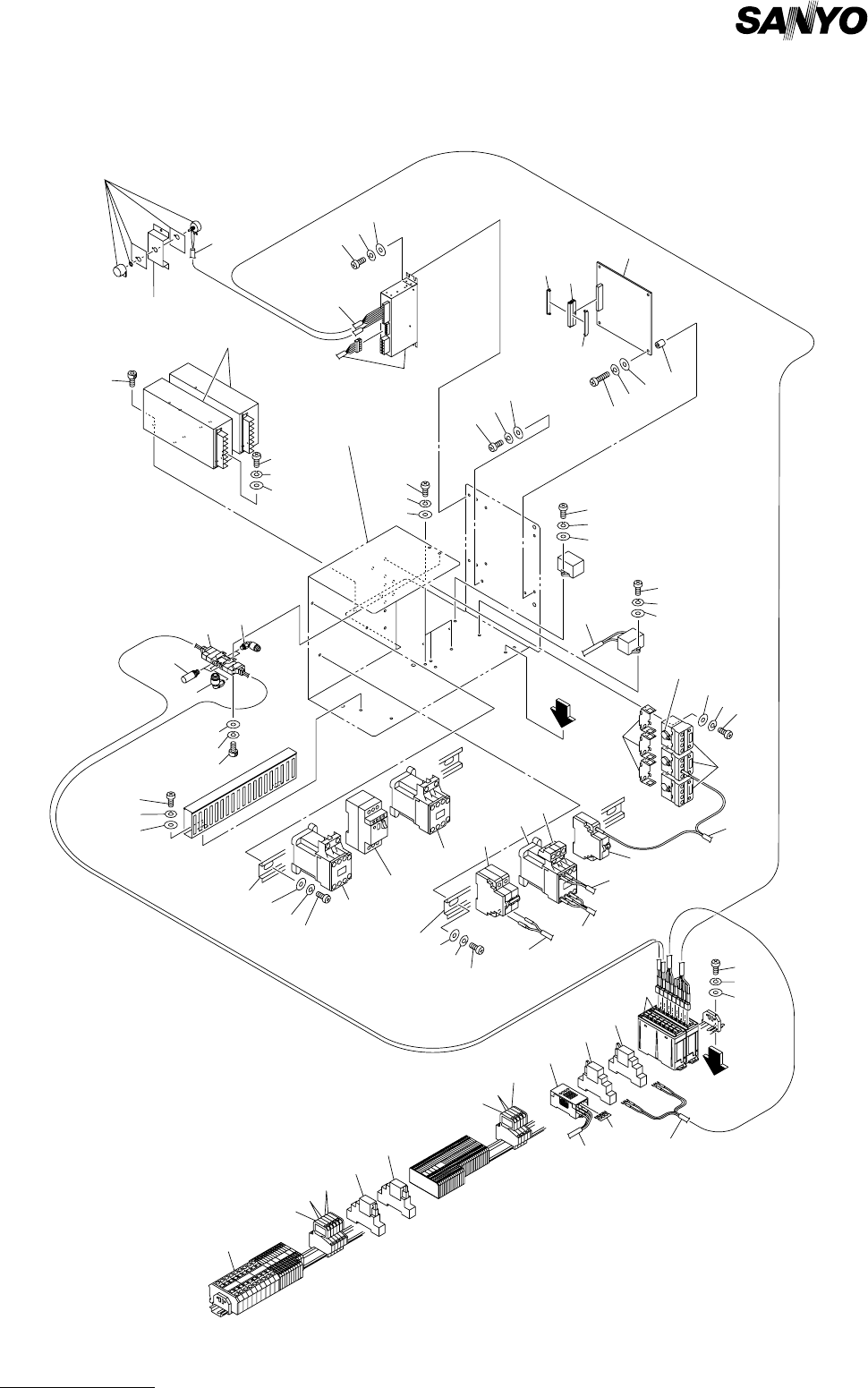

Fig. BD-1 リレーシーケンス Relay Sequence
See Fig.K-4
Key No.306
See Fig.K-4
Key No.308
30
39
15
14
72
71
70
68
67
69
41
20
68
67
69
66
65
64
21
18 19
35
2
36
34
26
3
65
64
66
61
62
63
45
43
42
44
73
29
26
37
5
A
4
1
31
66
65
64
65
66
40
A
7
25
24
.
23
27
10
9
8
13
12
11
6
28
33
22
.
25
24
.
23
22
.
64
32
66
65
64
.
38
66
17
16
17
65
64
66
30
65
64
Fig.BD-1
TPM-100F/R
TPM-110F/R
65
64
66
65
64
66
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
145
BD-1
1 630 089 2734 CIRCUIT PROTECTOR 1 Q203 748BD-210-001
2 630 089 2727 CIRCUIT PROTECTOR 1 Q100 748BD-210-002
3 630 089 2741 CIRCUIT PROTECTOR 1 Q204 748BD-210-003
4 630 089 2758 EM-CONTACTOR 1 KM204 748BD-210-004
5 630 102 4240 RELAY 1 K031 748BD-210-005
6 630 091 2579 TERMINAL 1 748BD-210-006
7 630 089 2864 UNIT,I/O 2 N002,N004, SAB10-TM16J43A
748BD-210-007
8 423 022 8104 FUSE 250V 2A 1 F001 748BD-210-008
9 423 022 8005 FUSE 250V 1A 2 F002,003 748BD-210-009
10 423 022 8203 FUSE 250V 3.15A 1 F004 748BD-210-010
11 423 025 2109 FUSE 250V 6.3A 1 F100 748BD-210-011
12 423 025 2208 FUSE 250V 0.8A 2 F101,111 748BD-210-012
13 423 022 8302 FUSE 250V 5A 2 F115,116 748BD-210-013
14 630 089 2574 P.C.B,MOUNT 1 #P203-U004-00 748BD-210-014
15 630 063 6680 ACCESSORY,P.C.B 4 748BD-210-015
16 630 091 2616 CONNECTOR 1 748BD-210-016
17 630 091 2623 CASE,CONN 2 748BD-210-017
18 630 053 8557 RELAY 3 K006,007,021 748BD-210-018
19 630 089 2659 COVER 3 748BD-210-019
20 630 053 8625 BRACKET,WIRING 3 748BD-210-020
21 407 060 9200 DIODE 10E1 3 748BD-210-021
22 630 063 5423 RELAY 2 K04C,K020 748BD-210-022
23 630 063 5430 SOCKET 2 748BD-210-023
24 630 068 9723 RELAY 2 K04D,K008 748BD-210-024
25 630 049 2064 SOCKET 2 748BD-210-025
26 630 089 2765 EM-CONTACTOR 2 KM100,200 748BD-210-026
27 630 091 1695 RELAY 1 748BD-210-027
28 630 089 2604 ACCESSORY,WIRING 1 748BD-210-028
29 630 089 2628 UNIT,POWER 2 G001,002, #JWS100-24/A
748BD-210-029
30 630 091 1701 UNIT,DRIVER 1 ASCP002, MSP-1W 748BD-210-030
31 630 091 1718 ACCESSORY,WIRING 1 748BD-210-031
32 630 091 1725 ACCESSORY,WIRING 1 748BD-210-032
33 630 088 5613 CORD 1 XNC008- 748BD-210-033
34 630 088 5620 CORD 1 748BD-210-034
35 630 088 5637 CORD 1 748BD-210-035
36 630 088 5644 CORD 1 748BD-210-036
37 630 088 5651 CORD 1 748BD-210-037
38 630 088 5668 CORD 1 XNC048,049,04A,04B-
748BD-210-038
39 630 088 5675 CORD 1 748BD-210-039
40 630 088 5699 CORD 1 XNC04C,04D- 748BD-210-040
41 630 088 5705 CORD 1 XNC400- 748BD-210-041
42 630 092 7863 SOLENOID VALVE 1 748BD-210-042
43 630 003 6534 AIR LINE EQPT 2 748BD-210-043
44 630 080 5420 PIPE FITTINGS 2 748BD-210-044
45 630 092 8174 PIPE FITTINGS 1 748BD-210-045
61 630 000 7749 BOLT,HEX-SCT 2 748BD-210-061
62 411 141 2806 WASHER SPR 3 2 748BD-210-062
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
146
BD-1
63 411 141 3902 WASHER V 3X7X0.5 2 748BD-210-063
64 411 113 1400 SCR PAN 4X6 24 748BD-210-064
65 411 008 1706 WASHER SPR 4 24 748BD-210-065
66 411 119 2104 WASHER V 4X9X0.8 24 748BD-210-066
67 411 043 5004 SCR PAN 4X8 2 748BD-210-067
68 411 008 1706 WASHER SPR 4 2 748BD-210-068
69 411 119 2104 WASHER V 4X9X0.8 2 748BD-210-069
70 411 162 1604 SCR PAN 3X20 4 748BD-210-070
71 411 086 4408 WASHER SPR 3 4 748BD-210-071
72 411 119 1909 WASHER V 3X7X0.5 4 748BD-210-072
73 630 000 7619 BOLT,HEX-SCT 2 748BD-210-073
