MODEL TPM-110F/R
0108-001
132
カバー部 COVER SECTION

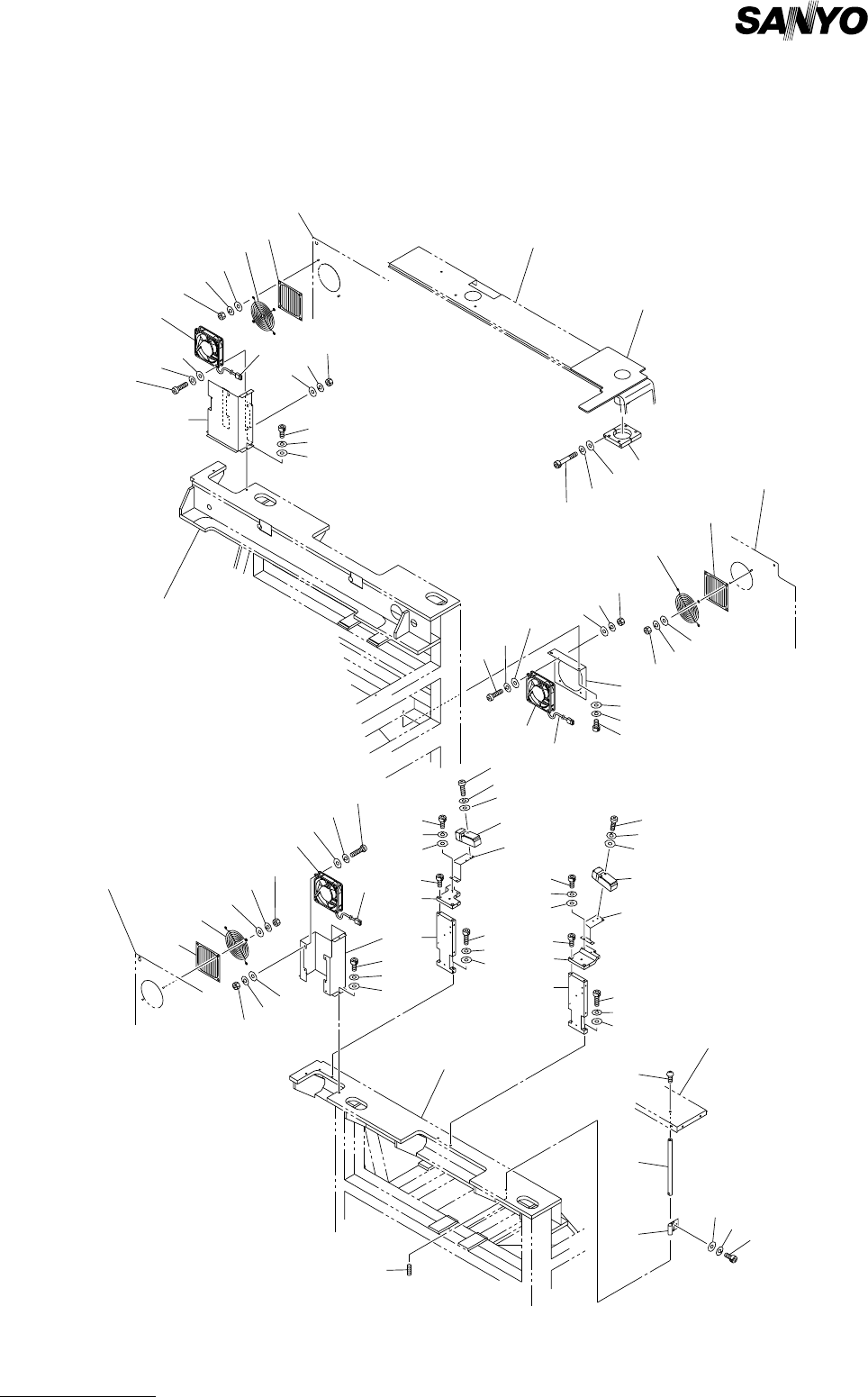

Fig. R-1 カバーフレーム Cover Frame
15
74
74
75
75
78
78
2
74
75
72
14
3
64
61
67
66
11
72
3
2
75
74
78
75
74
15
70
7
71
65
65
5
76
78
75
74
15
72
75
74
2
71
70
62
67
66
64
69
68
62
73
75
74
12
1
67
66
16
10
63
9
6
65
71
70
63
8
6
73
3
75
74
13
1
See Fig.K-1
Key No.4
See Fig.R-3
Key No.216
See Fig.R-4
Key No.308
See Fig.K-6
Key No.504
See Fig.R-4
Key No.303
See Fig.K-1
Key No.4
See Fig.R-4
Key No.306
69
68
Fig.R-1
TPM-110F/R
74
75
78
78
75
74
4
4
4
77
See Fig.R-3
Key No.215
74
75
79
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
133
R-1
1 630 088 5347 SWITCH,LIMIT(DOOR SWITCH) 2 SQ001,002 748R--210-001
2 630 053 2883 MOTOR,AC 3 MFAN01-03, R87F-A1A13HP
748R--210-002
3 630 051 8481 ACCESSORY,MOT-M 3 748R--210-003
4 630 049 1074 ACCESSORY,MOT-M 3 748R--210-004
5 630 103 1217 BRACKET 1 748R--210-005
6 630 103 1224 BRACKET 2 748R--210-006
7 630 103 1262 BRACKET 1 748R--210-007
8 630 103 1279 BRACKET 1 748R--210-008
9 630 103 1286 BRACKET 1 748R--210-009
10 630 090 8916 STAY 1 748R--210-010
11 630 090 9234 BLOCK 1 748R--210-011
12 630 103 1347 BRACKET 1 748R--210-012
13 630 103 1354 BRACKET 1 748R--210-013
14 630 103 1408 BRACKET 1 748R--210-014
15 630 061 6538 ACCESSORY,MOT-M 3 748R--210-015
16 630 094 8769 BRACKET 1 748R--210-016
61 630 048 0368 BOLT,HEX-SCT 2 748R--210-061
62 630 000 7916 BOLT,HEX-SCT 4 748R--210-062
63 630 085 8310 BOLT,HEX-SCT 4 748R--210-063
64 630 000 7749 BOLT,HEX-SCT 4 748R--210-064
65 630 000 7626 BOLT,HEX-SCT 6 748R--210-065
66 411 141 4305 WASHER V 6X12.5X1.6 6 748R--210-066
67 411 141 3001 WASHER SPR 6 6 748R--210-067
68 411 141 4107 WASHER V 5X10X1 4 748R--210-068
69 411 141 6705 WASHER SPR 5 4 748R--210-069
70 411 141 4008 WASHER V 4X9X0.8 6 748R--210-070
71 411 141 2905 WASHER SPR 4 6 748R--210-071
72 411 113 2506 SCR PAN 4X40 12 748R--210-072
73 411 113 2407 SCR PAN 4X30 4 748R--210-073
74 411 119 2104 WASHER V 4X9X0.8 36 748R--210-074
75 411 008 1706 WASHER SPR 4 36 748R--210-075
76 630 000 8999 SET SCREW 1 748R--210-076
77 411 051 1708 SCR TRS 4X6 1 748R--210-077
78 411 054 8506 NUT HEX 4 18 748R--210-078
79 630 000 7619 BOLT,HEX-SCT 2 748R--210-079
MODEL TPM-110F/R
0108-001
134
カバー部 COVER SECTION
Fig. R-2 前後扉 Front/Rear Door
110
115
175
176
166
120
163
172
171
167
104
113
121
162
170
169
See Fig.K-1
Key No.4
171
172
164
124
125
124
107
164
172
171
105
120
171
103
122
101
166
176
175
127
166
176
175
128
122
108
172
164
166
176
175
178
117
162
170
169
See Fig.K-1
Key No.4
164
172
171
118
106
173
174
165
106
165
174
173
106
163
172
171
123
166
176
175
129
167
168
161
122
102
See Fig.R-1
Key No.9
See Fig.R-1
Key No.8
125
106
166
177
116
176
175
111
166
176
175
115
168
161
171
172
164
178
166
176
175
123
119
109
105
126
Fig.R-2
TPM-110F/R
A
A
