MODEL TPM-1 10F/R 0108-001 46 スキージヘッド部 SQUEEGEE HEAD SECTION Fig. FA-1 エア配管、電装部 Air Piping, Electrical Parts 73 See Fig.FB-1 Key No.25 See Fig.F-1 Key No.16 See Fig.F-1 Key No.12 73 1 64 63 62 77 24 66 67 68 18 13 74 75 …
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
45
F-4
301 630 088 6207 CORD 1 XNC271- 748F--210-301
302 630 088 6214 CORD 1 748F--210-302
303 630 088 6221 CORD 1 XNC270-XNC1270 748F--210-303
304 630 088 6238 CORD 1 XNC271-XNC1271 748F--210-304
305 630 088 6245 CORD 1 748F--210-305
306 630 088 7310 CORD 1 XNC2904-XNC1904 748F--210-306
361 411 113 1400 SCR PAN 4X6 2 748F--210-361
362 411 008 1706 WASHER SPR 4 2 748F--210-362
363 411 119 2104 WASHER V 4X9X0.8 2 748F--210-363
MODEL TPM-110F/R
0108-001
46

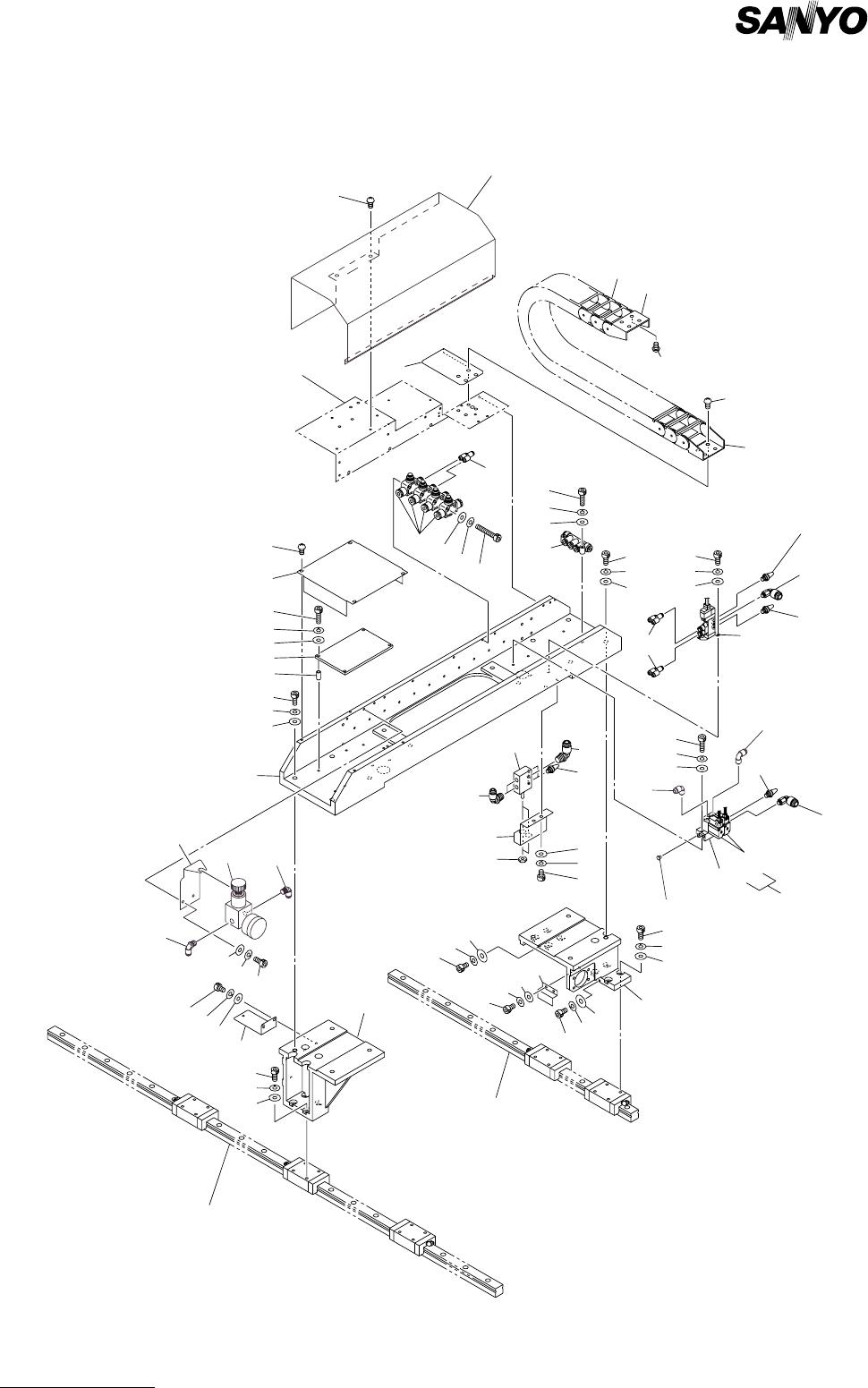

スキージヘッド部 SQUEEGEE HEAD SECTION
Fig. FA-1 エア配管、電装部 Air Piping, Electrical Parts
73
See Fig.FB-1
Key No.25
See Fig.F-1
Key No.16
See Fig.F-1
Key No.12
73
1
64
63
62
77
24
66
67
68
18
13
74
75
22
9
11
25
10
66
67
68
61
63
64
8
2-01
2-02
5
72
71
69
70
71
72
26
72
71
69
71
72
20
21
70
23
68
67
65
78
67
65
9
76
75
74
76
67
68
19
16
15
14
.
17
78
67
65
Fig.FA-1
TPM-110F/R
4
5
4
77
66
5
5
6
29
29
30
11
10
12
27
65
67
68
28
30
31
2
MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
47
FA-1
1 630 003 6251 AIR LINE EQPT 4 748FA-210-001
2 630 089 2116 SOLENOID VALVE 1 YSV068,069 748FA-210-002
2 -01 630 092 8068 AIR LINE EQPT 1
2 -02 630 092 7870 SOLENOID VALVE 2
4 630 092 8174 PIPE FITTINGS 2 748FA-210-004
5 630 088 8850 AIR LINE EQPT 7 748FA-210-005
6 630 095 4951 PIPE FITTINGS 1 748FA-210-006
8 630 092 7887 SOLENOID VALVE 1 YSV06A 748FA-210-008
9 630 088 8867 VALVE 2 748FA-210-009
10 630 069 0538 PIPE FITTINGS 3 748FA-210-010
11 630 088 4432 PIPE FITTINGS 5 748FA-210-011
12 630 092 8457 AIR LINE EQPT 1 748FA-210-012
13 630 057 6191 ACCESSORY,P.C.B 4 748FA-210-013
14 630 102 6305 MECH PARTS 1 748FA-210-014
15 630 088 3718 MECH PARTS 1 748FA-210-015
16 630 088 3725 MECH PARTS 1 748FA-210-016
17 630 088 3749 MECH PARTS 4 748FA-210-017
18 630 089 2581 UNIT,I/O 1 A053, #F99-6688-1 748FA-210-018
19 630 092 8167 AIR LINE EQPT 1 748FA-210-019
20 630 103 0074 FRAME 1 748FA-210-020
21 630 103 0081 FRAME 1 748FA-210-021
22 630 103 0098 FRAME 1 748FA-210-022
23 630 088 0205 STAY 1 748FA-210-023
24 630 103 0104 PLATE 1 748FA-210-024
25 630 088 0328 STAY 1 748FA-210-025
26 630 088 0335 STAY 1 748FA-210-026
27 630 094 3399 BRACKET 1 748FA-210-027
28 630 102 9634 COVER 1 748FA-210-028
29 630 080 5420 PIPE FITTINGS 2 748FA-210-029
30 630 081 7508 PIPE FITTINGS 3 748FA-210-030
31 630 102 5414 PLATE 1 748FA-210-031
61 630 000 7527 BOLT,HEX-SCT 2 748FA-210-061
62 630 091 5419 BOLT,HEX-SCT 2 748FA-210-062
63 411 141 2806 WASHER SPR 3 4 748FA-210-063
64 411 141 3902 WASHER V 3X7X0.5 4 748FA-210-064
65 630 000 7626 BOLT,HEX-SCT 6 748FA-210-065
66 630 000 7671 BOLT,HEX-SCT 8 748FA-210-066
67 411 141 2905 WASHER SPR 4 14 748FA-210-067
68 411 141 4008 WASHER V 4X9X0.8 12 748FA-210-068
69 630 000 7749 BOLT,HEX-SCT 4 748FA-210-069
70 630 000 7770 BOLT,HEX-SCT 12 748FA-210-070
71 411 141 6705 WASHER SPR 5 16 748FA-210-071
72 411 141 4107 WASHER V 5X10X1 16 748FA-210-072
73 411 113 9703 SCR TRS 6X10 8 748FA-210-073
74 630 000 8012 BOLT,HEX-SCT 8 748FA-210-074
75 411 141 3100 WASHER SPR 8 8 748FA-210-075
76 411 141 4503 WASHER V 8X17X1.6 8 748FA-210-076
77 411 051 1708 SCR TRS 4X6 6 748FA-210-077
78 630 001 0213 WASHER 2 748FA-210-078
